(9-002) - TURNTABLE BEARING AND LUBRICATION LINES, P.I.N. 74441 THROUGH 74594

Запчасти Case 220B (9-002) - TURNTABLE BEARING AND LUBRICATION LINES, P.I.N. 74441 THROUGH 74594 (09) - CHASSIS

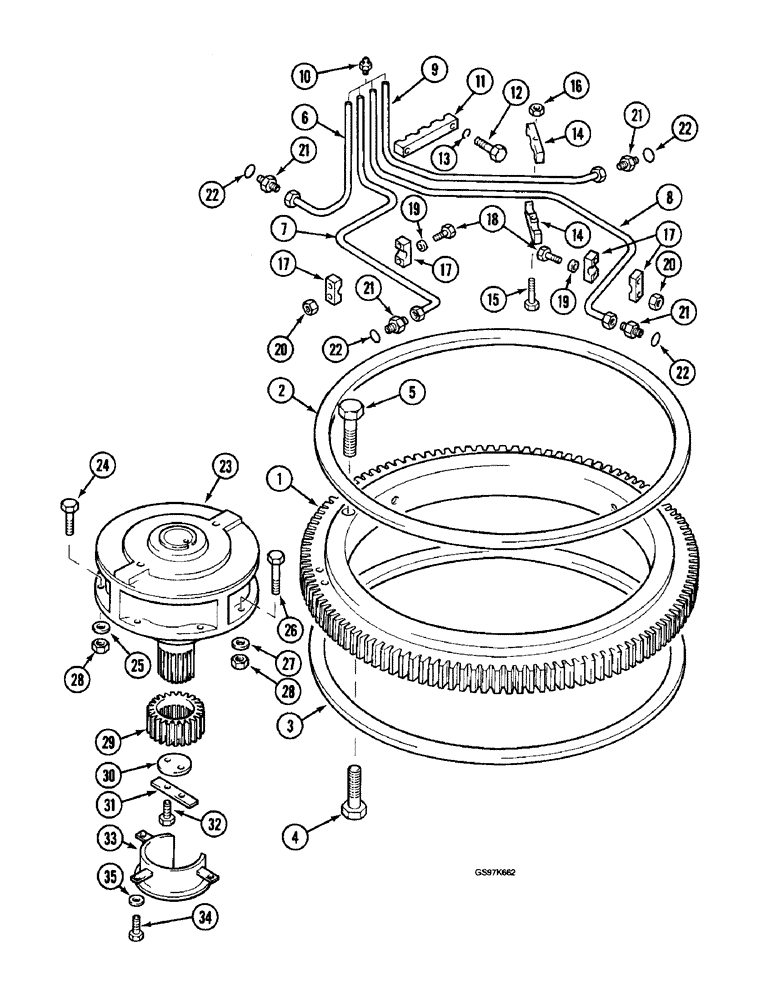

Схема запчастей Case 220B - (9-002) - TURNTABLE BEARING AND LUBRICATION LINES, P.I.N. 74441 THROUGH 74594 (09) - CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P739932

SLEWING RING

BEARING ASSEMBLY - turntable, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BEARING - turntable, order bearing assembly P739932

1шт.

2

P7146022

SEAL

- upper

1шт.

3

P7146023

SEAL

- lower, no longer available

1шт.

4

P1133826

SCREW

BOLT - lower

40шт.

5

P1133826

SCREW

BOLT - upper

36шт.

6

P4147688

PIPE

TUBE - lubrication

1шт.

7

P3149128

TUBE - lubrication, no longer available

1шт.

8

P3149129

PIPE

TUBE - lubrication

1шт.

9

P49023

PIPE

TUBE - lubrication

1шт.

10

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

4шт.

11

P1420364

SHIN

CLAMP - tube

1шт.

12

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- clamp, hex, 10 - 1.5 x 40 mm (Replaces bolt P933818)

2шт.

13

P34711E

LOCK WASHER,M10

WASHER, LOCK, M10

2шт.

14

P4620392

SHIN

CLAMP - tube

2шт.

15

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

Clamp, hex (Replaces bolt P1133839) Hex, M10 x 45, 8.8

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

1шт.

17

P1220341

SHIN

CLAMP - tube

4шт.

18

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8), Clamp (Replaces bolt P33822)

4шт.

19

P35008

WASHER

SPACER - bolt

4шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, (Replaces nut P34596) M12 x 1.75, Cl 8

4шт.

21

P1837534

UNION

ADAPTER - straight

4шт.

22

P28424

COMPOSITE SEAL

O-RING - adapter

4шт.

23

P1943722R

REMAN-HYD MOTOR

MOTOR ASSEMBLY - swing, parts list Figures 8-178 and 8-180

1шт.

24

P1133825

SCREW

BOLT - swing motor, short

2шт.

25

P4328720

WASHER

SPACER - bolt

2шт.

26

P133823

SCREW

BOLT - swing motor, long

8шт.

27

P4328719

WASHER

SPACER - bolt

8шт.

28

832-10422

NUT,M22 x 2.5, Cl 8

NUT - hex, self-locking, 22 mm - 2.5 (Replaces nut P134565)

10шт.

29

P2139306

PINION

GEAR - swing motor

1шт.

30

P530120

WASHER

PLATE - round

1шт.

31

P122871

BRAKE

PLATE - bolt

1шт.

32

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

Gear (Replaces bolt P133802) Hex, M16 x 40, 8.8

2шт.

33

P2040321

HOUSING

COVER - gear

1шт.

34

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Cover retaining Hex, M12 x 35, 8.8, Full Thd

3шт.

35

P3528793

WASHER

SPACER - bolt

3шт.
