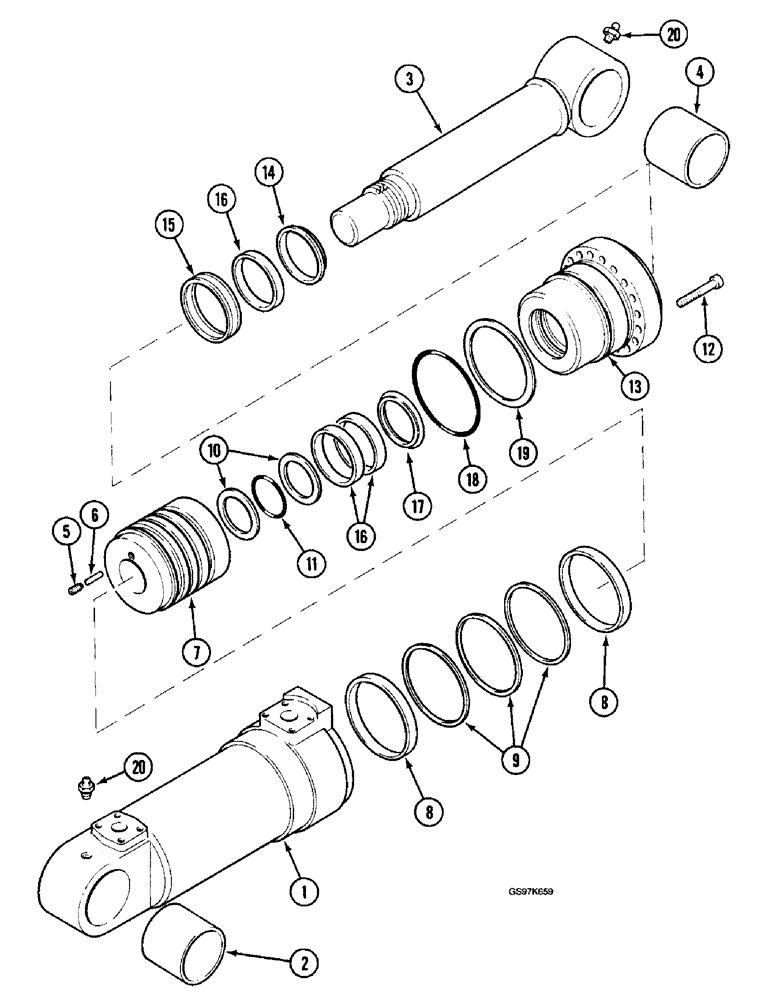

Запчасти Case 220B (8-198) - ARM CYLINDER, WITH SET SCREW RETAINER FOR PISTON LOCKING PIN (08) - HYDRAULICS

P7646770

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm, no longer available, order cylinder assembly P8346712 when replacing complete cylinder, parts list Figure 8-200, Includes: Ref. 1 - 20

1шт.

P1452454

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order tube assembly P1452454

1шт.

2

P1928644

BUSHING

- tube

1шт.

P8849411

PISTON ROD

ROD ASSEMBLY - piston (Replaces rod assembly P8349448), Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston, order rod assembly P8849411

1шт.

4

P1928644

BUSHING

- piston rod

1шт.

5

P1432953

SCREW

- set, pin

1шт.

Part of seal kit P/N P5349626

1шт.

6

P827733

PIN

- locking

1шт.

Part of seal kit P/N P5349626

1шт.

7

P3829160

PISTON

- cylinder

1шт.

8

P2045260

BAND

RING - wear, at piston

2шт.

Part of seal kit P/N P5349626

1шт.

9

P1451235

SPECIAL MAT. SEAL

SEAL - piston

3шт.

Part of seal kit P/N P5349626

1шт.

10

P1145479

BACK-UP RING

RING - backup, piston rod O-ring

2шт.

Part of seal kit P/N P5349626

1шт.

11

P30358

O-RING

- piston rod

1шт.

Part of seal kit P/N P5349626

1шт.

12

P532952

SCREW

BOLT - hex socket, 24 mm x 90 mm, class 10.9

16шт.

13

P2229077

CYLINDER END CAP

GLAND - cylinder packing

1шт.

14

P146003

WIPER SEAL

WIPER - piston rod (Replaces wiper P1251307

1шт.

Part of seal kit P/N P5349626

1шт.

15

P1651289

SEAL

- packing, piston rod

1шт.

Part of seal kit P/N P5349626

1шт.

16

P7846069

RING

- wear

3шт.

Part of seal kit P/N P5349626

1шт.

17

P1751241

SEAL

O-RING - gland, inner

1шт.

Part of seal kit P/N P5349626

1шт.

18

P30369

O-RING

- gland, outer

1шт.

Part of seal kit P/N P5349626

1шт.

19

P5946002

BACK-UP RING

RING - backup, gland O-ring

1шт.

Part of seal kit P/N P5349626

1шт.

20

J45801

LUBE NIPPLE,M8 x 1.25

straight, if used M8 x 1.25

2шт.

P5349626

SEAL PACKAGE

KIT - seal, Includes: Ref. 5, 6, 8 thru 11 and 14 thru 19, no longer available as a kit, order components

1шт.
