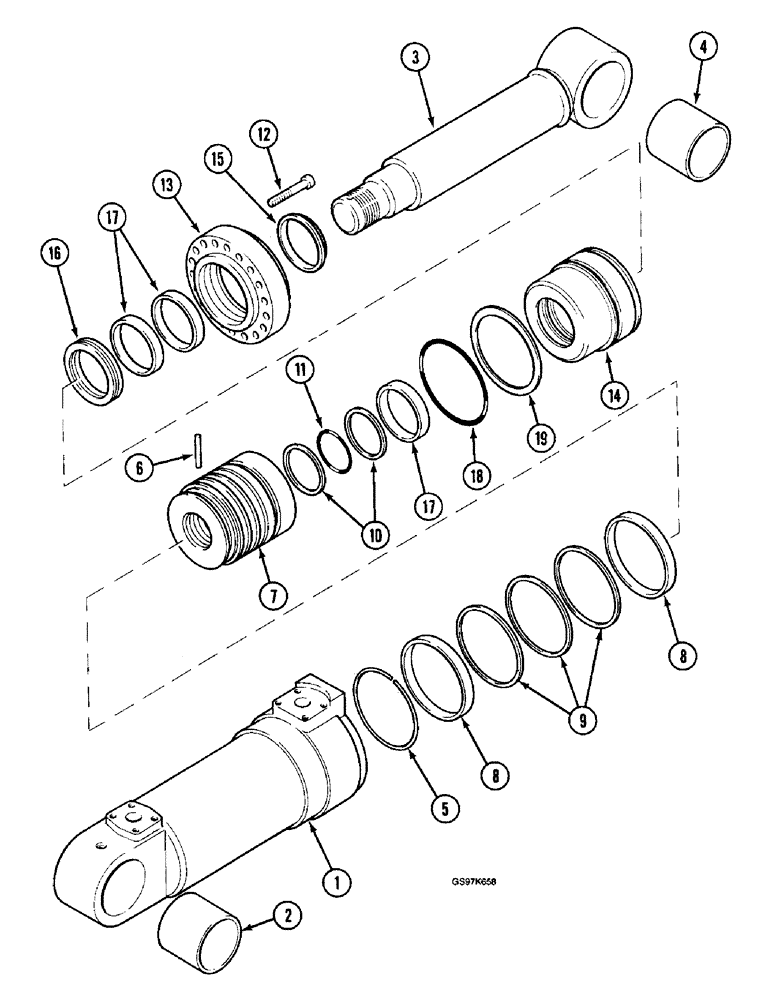

Запчасти Case 220B (8-196) - ARM CYLINDER, WITH WIRE RING TYPE RETAINER FOR PISTON LOCKING PIN (08) - HYDRAULICS

P7046718

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm, no longer available, order cylinder assembly P8346712 when replacing complete cylinder, parts list Figure 8-200, Includes: Ref. 1 - 19

1шт.

P1452454

JACK BODY

TUBE ASSEMBLY - cylinder (Replaces tube assembly P2449358), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order tube assembly P2449358

1шт.

2

P1928644

BUSHING

- tube

1шт.

P2249442

PISTON ROD

ROD ASSEMBLY - piston, no longer available, order rod assembly P8849411 and Refs. 5 - 11 on Figure 8-198, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston, order rod assembly P2249442

1шт.

4

P1928644

BUSHING

- piston rod

1шт.

5

P1036944

SPECIAL RING

RETAINER - locking pin

1шт.

6

P427329

PIN

- locking

1шт.

7

P3229176

PISTON

- cylinder

1шт.

8

P7346003

BAND

RING - wear

2шт.

Part of seal kit P/N P4149682

1шт.

9

P1451235

SPECIAL MAT. SEAL

SEAL - piston

3шт.

Part of seal kit P/N P4149682

1шт.

10

P745330

BACK-UP RING

RING - backup, piston rod O-ring

2шт.

Part of seal kit P/N P4149682

1шт.

11

P30349

O-RING

- piston rod

1шт.

Part of seal kit P/N P4149682

1шт.

12

P532952

SCREW

BOLT - gland

16шт.

13

P2630181

WASHER

RETAINER - packing gland

1шт.

14

P1629098

CYLINDER END CAP

GLAND - cylinder packing

1шт.

15

P3946024

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N P4149682

1шт.

16

P1551236

SEAL

- packing, piston rod

1шт.

Part of seal kit P/N P4149682

1шт.

17

P3946023

SEGMENT

RING - wear

3шт.

Part of seal kit P/N P4149682

1шт.

18

P30370

O-RING

- gland

1шт.

Part of seal kit P/N P4149682

1шт.

19

P4146037

BACK-UP RING

RING - backup, gland O-ring

1шт.

Part of seal kit P/N P4149682

1шт.

20

P1345280

BACK-UP RING

SHIM - seal, 0.5 mm (0.020 inch) thick, not shown

1шт.

21

P1345281

BACK-UP RING

SHIM - seal, 1 mm (0.040 inch) thick, not shown

1шт.

P4149682

SEAL PACKAGE

KIT - seal, Includes: Ref. 8, 9, 10, 11, 15, 16, 17, 18 and 19

1шт.
