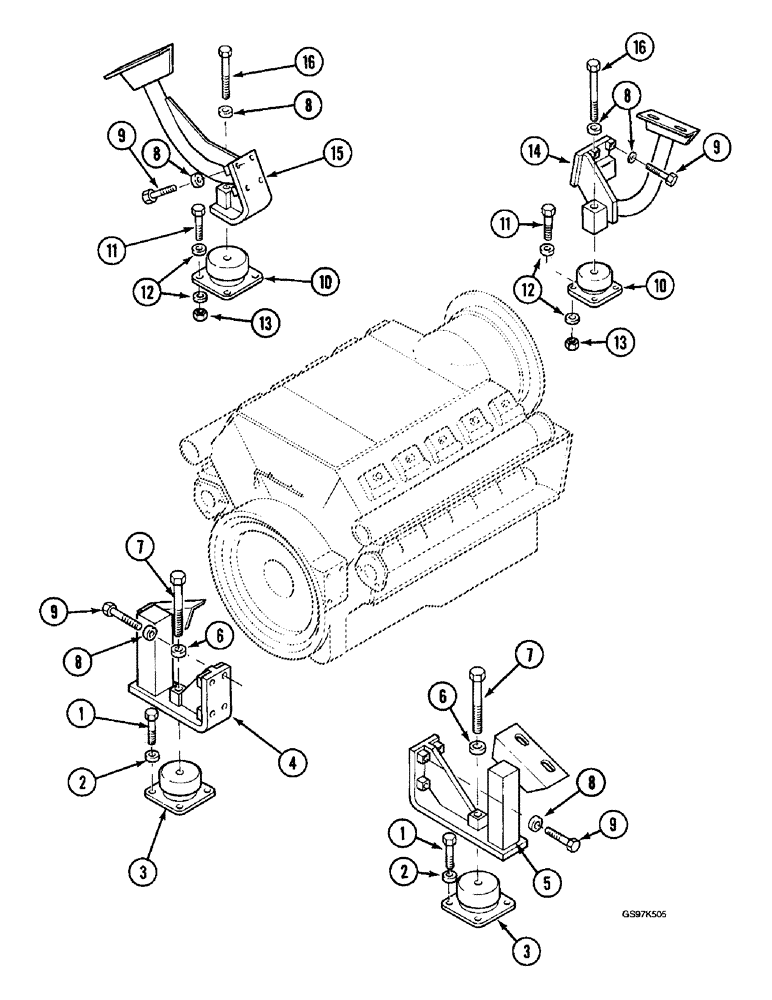

Запчасти Case 220B (2-09) - ENGINE MOUNTING AND ADAPTING PARTS, P.I.N. 03217 AND AFTER (02) - ENGINE

1

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 40 mm, engine mount to turntable

8шт.

2

P3528793

WASHER

SPACER - bolt to mount, 8 mm thick

8шт.

3

P1541482

SUPPORT

MOUNT - engine, flexible

2шт.

4

P6328294

FOOT

BRACKET - engine mount, front, left-hand

1шт.

5

P6328296

FOOT

BRACKET - engine mount, front, right-hand

1шт.

6

P3528790

WASHER

SPACER - bolt, 11 mm thick, Serial Range: bracket-mount

2шт.

7

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

Bracket to mount (Replaces bolt P33855) Hex, M16 x 90, 8.8

2шт.

8

P3528793

WASHER

SPACER - bolt, 8 mm thick, Serial Range: bracket-engine

18шт.

9

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

Bracket to engine (Replaces bolt P33874) Hex, M12 x 60, 8.8

16шт.

10

P741473

SUPPORT

MOUNT - engine, flexible

2шт.

11

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

- hex, 10 - 1.5 x 55 mm, Engine mount to turntable (Replaces bolt P133869)

8шт.

12

P3528795

WASHER

SPACER - bolt to mount, 7 mm thick

16шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Mount to turntable (Replaces nut P34598) M10 x 1.5, Cl 8

8шт.

14

P6528201

FOOT

BRACKET - engine mount, rear, left-hand

1шт.

15

P6328298

FOOT

BRACKET - engine mount, rear, right-hand

1шт.

16

614-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8, Full Thd

- , Bracket to mount (Replaces bolt P32678) Hex, M12 x 100, 8.8, Full Thd

2шт.
