Артикул
Название
Примечание
Количество

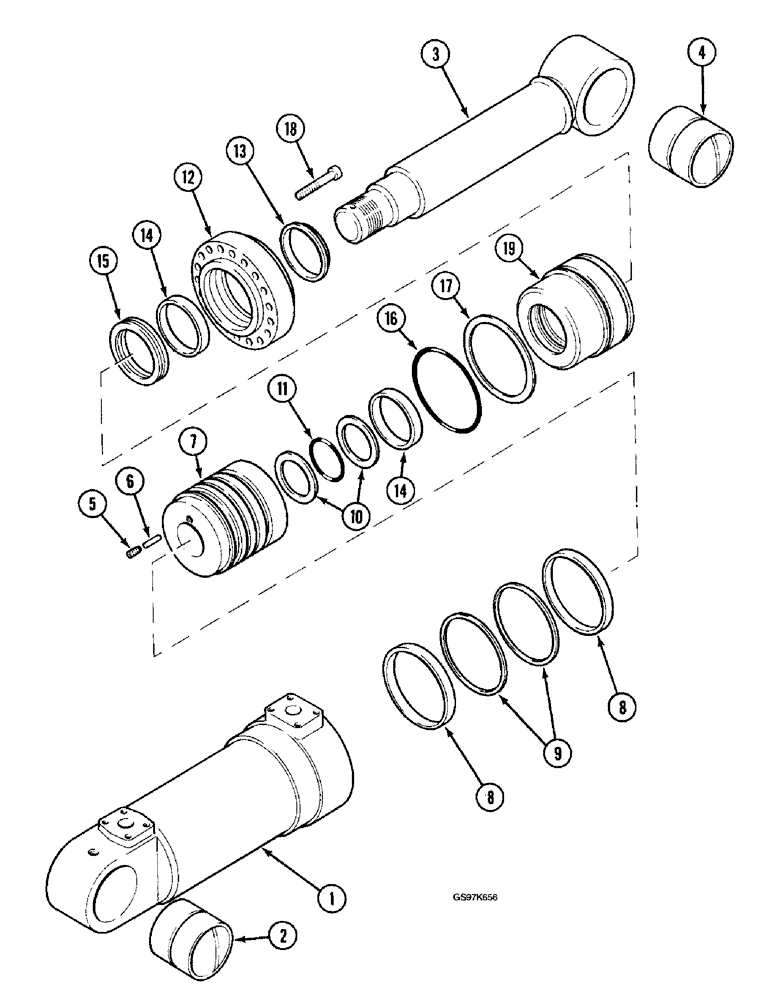

P7346727
CYLINDER ASSY.
CYLINDER ASSEMBLY - boom, no longer available, order P8346707 when replacing complete cylinder, parts list Figure 8-194, Includes: Ref. 1 - 19
2шт.
P952421
JACK BODY
TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder, order tube assembly P952421
1шт.
2
P1928604
BUSHING
- tube
1шт.
P7949431
PISTON ROD
ROD ASSEMBLY - piston, no longer available, order rod assembly P8849421, parts list Figure 8-194, Includes: Ref. 3 and 4
1шт.
3
NSS
NOT SOLD SEPARAT
ROD - piston, order rod assembly P7949431
1шт.
4
P1928604
BUSHING
- piston rod
1шт.
5
P1432953
SCREW
- pin
1шт.
Part of seal kit P/N P4949641
1шт.
6
P827737
PIN
- locking
1шт.
Part of seal kit P/N P4949641
1шт.
7
P3729151
PISTON
- cylinder
1шт.
8
P7846021
BAND
RING - wear
2шт.
Part of seal kit P/N P4949641
1шт.
9
P1451296
SEAL
- piston
2шт.
Part of seal kit P/N P4949641
1шт.
10
P1846069
BACK-UP RING
RING - backup, piston rod O-ring
2шт.
Part of seal kit P/N P4949641
1шт.
11
P30347
O-RING
- piston rod
1шт.
Part of seal kit P/N P4949641
1шт.
12
P3930129
WASHER
RETAINER - cylinder gland
1шт.
13
P246073
WIPER SEAL
WIPER - piston rod
1шт.
Part of seal kit P/N P4949641
1шт.
14
P2046091
SEGMENT
RING - wear
2шт.
Part of seal kit P/N P4949641
1шт.
15
P1351219
SEAL
- u-cup, piston rod
1шт.
Part of seal kit P/N P4949641
1шт.
16
P30363
O-RING
- gland, small
1шт.
Part of seal kit P/N P4949641
1шт.
17
P945209
BACK-UP RING
RING - backup, gland O-ring
1шт.
Part of seal kit P/N P4949641
1шт.
18
P732985
SCREW
BOLT - gland
16шт.
19
P7330154
CYLINDER END CAP
GLAND - cylinder
1шт.
P4949641
SEAL PACKAGE
KIT - seal, Includes: Ref. 5, 6, 8, 9, 10, 11, 13, 14, 15, 16 and 17
1шт.
Выбрано товаров: 34
