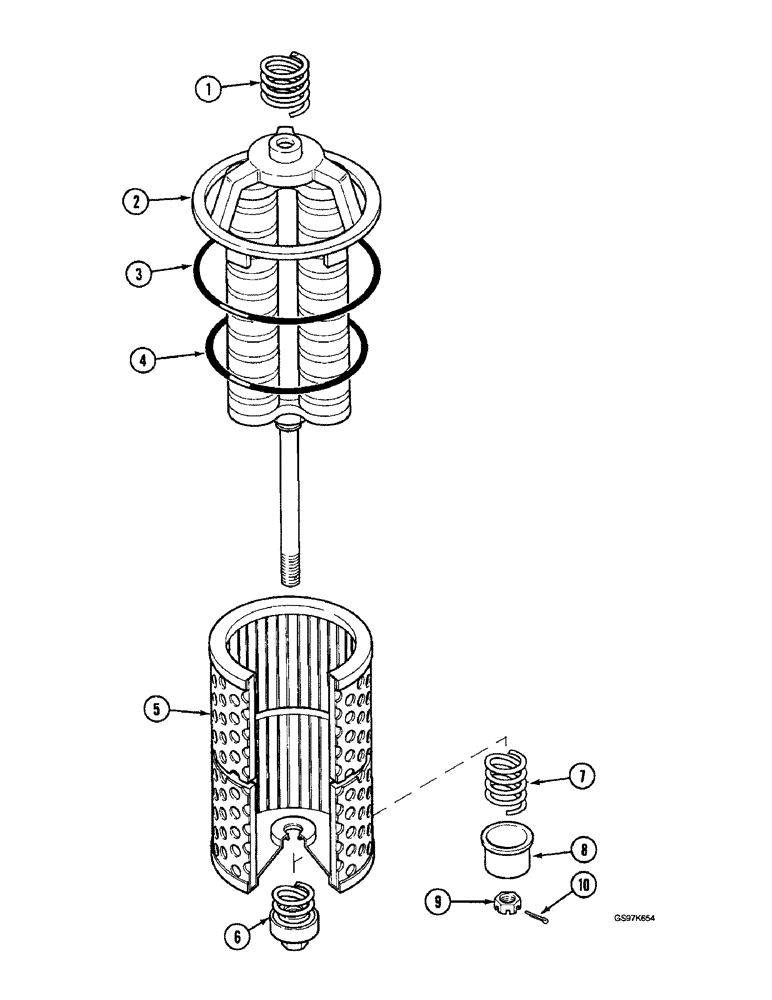

Запчасти Case 220B (8-188) - HYDRAULIC OIL FILTER, MAIN RETURN LINES TO RESERVOIR, P.I.N. 74441 THRU 74597, P.I.N. 03201 & AFTER (08) - HYDRAULICS

P1350521

ENGINE OIL FILTER

FILTER ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 10

1шт.

1

P1338132

COMPRESSION SPRING

SPRING - filter

1шт.

2

NSS

NOT SOLD SEPARAT

CORE - magnetic, filter, order filter assembly P1350521

1шт.

3

P1230499

O-RING

- magnetic core, large

1шт.

4

P1630401

O-RING

- magnetic core, small

1шт.

5

P1050547

CARTRIDGE

ELEMENT - filter

1шт.

6

P1950530

SET OF PARTS

BYPASS - filter, one piece, if used, no longer available

1шт.

7

P1338147

COMPRESSION SPRING

SPRING - bypass, if used

1шт.

8

P1050563

SUPPORT

RETAINER - spring, if used

1шт.

9

P734301

NUT

- hex, slotted, retainer, if used

1шт.

10

P35513

SPLIT PIN

PIN - cotter, retainer, if used

1шт.
