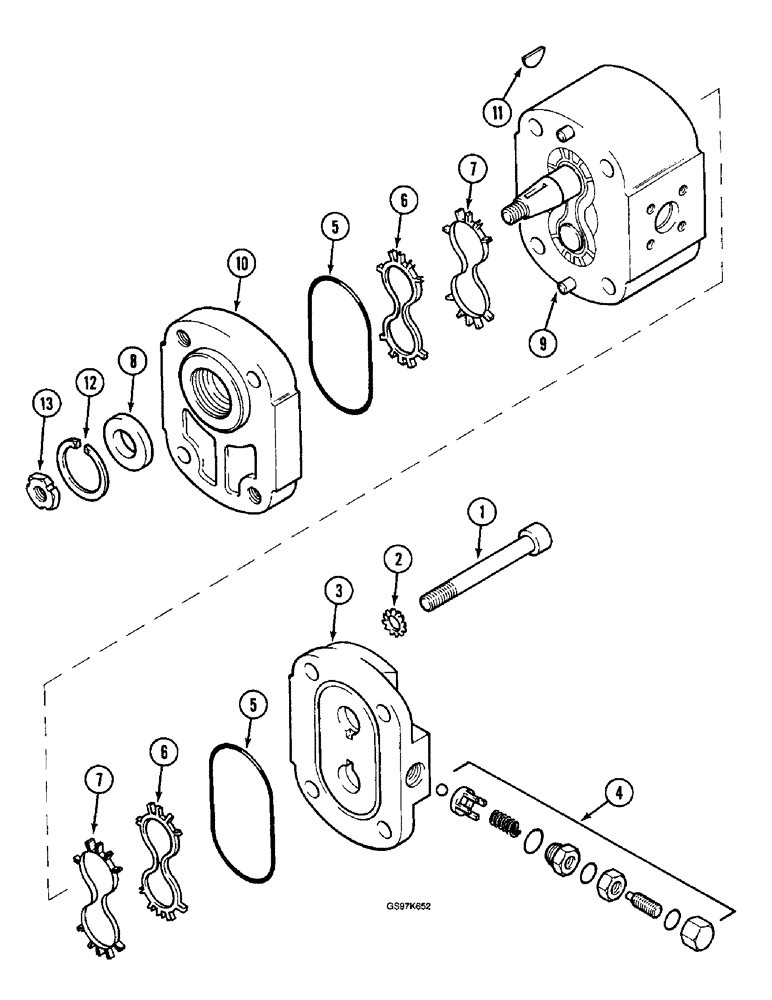

Запчасти Case 220B (8-184) - OIL COOLER FAN MOTOR, MOTOR SERIAL NUMBER 60200000 AND AFTER, P.I.N. 74441 - 74597 AND, P.I.N. 03201 (08) - HYDRAULICS

P1943763

HYDRAULIC MOTOR

MOTOR ASSEMBLY - oil cooler fan, pressure setting 75 bar, no longer available, order motor assembly P4743717, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - port end cover, order motor assembly

4шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock, order motor assembly

4шт.

3

NSS

NOT SOLD SEPARAT

COVER - rear, order motor assembly

1шт.

4

P5449608

KIT

VALVE ASSEMBLY - relief, cartridge-type, contains no individual serviceable components, order valve assembly P5949655 below

1шт.

P5949630

SEAL PACKAGE

KIT - seal repair, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - gear housing, order kit P5449672

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer, gear housing, order kit P5449672

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL - inner, gear housing, order kit P5449672

2шт.

8

P151415

OIL SEAL

SEAL - shaft

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - gear, order motor assembly

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - shaft end, order motor assembly

1шт.

11

P236140

BUCKET TOOTH KEY

KEY - shaft

1шт.

12

P36215

RING, SNAP

RING - snap, shaft

1шт.

13

P1634599

SAFETY NUT

NUT - locking

1шт.

P4743717

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - oil cooler fan, pressure setting 100 bar, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - port end cover, order motor assembly, Start Serial: 03202

4шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock, order motor assembly, Start Serial: 03202

4шт.

3

NSS

NOT SOLD SEPARAT

COVER - rear, order motor assembly, Start Serial: 03202

1шт.

4

P5949655

KIT

VALVE ASSEMBLY - relief, cartridge-type, contains no individual serviceable components (Replaces valve assembly P5449608), Start Serial: 03202

1шт.

P5449672

SEAL PACKAGE

KIT - seal repair, Includes: Ref. 5 - 8, Start Serial: 03202

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - gear housing, order kit P5449672, Start Serial: 03202

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer, gear housing, order kit P5449672, Start Serial: 03202

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL - inner, gear housing, order kit P5449672, Start Serial: 03202

2шт.

8

P151415

OIL SEAL

SEAL - shaft, Start Serial: 03202

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - gear, order motor assembly, Start Serial: 03202

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - shaft end, order motor assembly, Start Serial: 03202

1шт.

11

P236140

BUCKET TOOTH KEY

KEY - shaft, Start Serial: 03202

1шт.

12

P36215

RING, SNAP

RING - snap, shaft, Start Serial: 03202

1шт.

13

P1634599

SAFETY NUT

NUT - locking, Start Serial: 03202

1шт.
