(8-180) - SWING HYDRAULIC MOTOR, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (CONT)

Запчасти Case 220B (8-180) - SWING HYDRAULIC MOTOR, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (CONT) (08) - HYDRAULICS

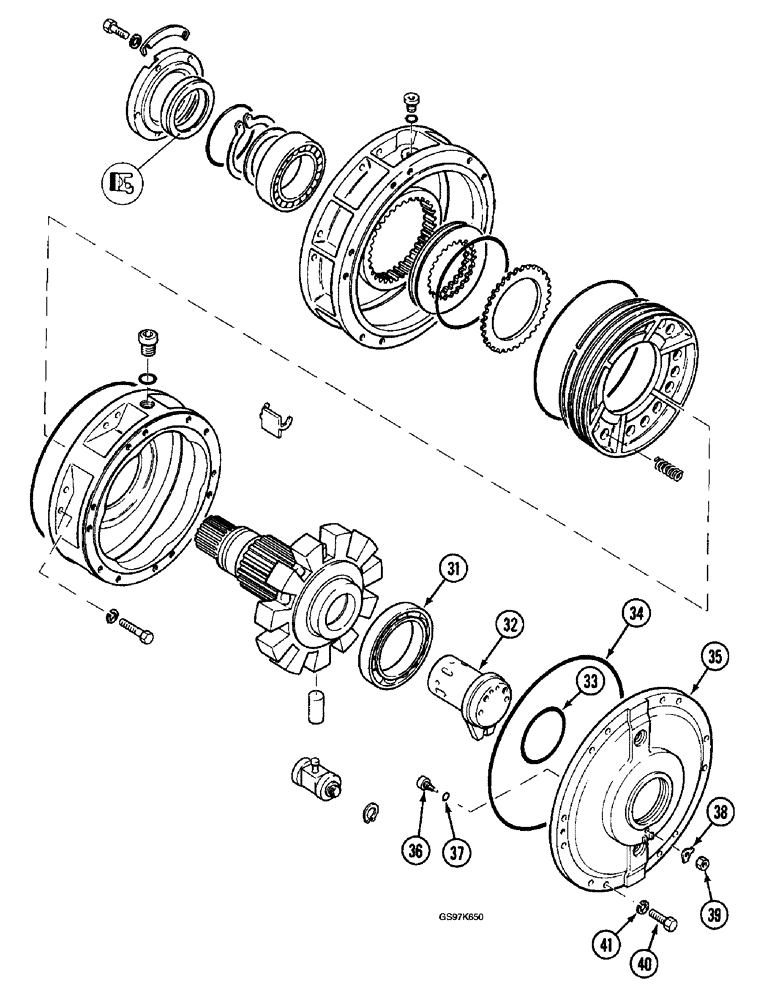

Схема запчастей Case 220B - (8-180) - SWING HYDRAULIC MOTOR, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (CONT) (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MOTOR ASSEMBLY - swing hydraulic, continued, Includes: Ref. 31 - 41 and 1 - 30 on Fig. 8-178

1шт.

31

P1439605

BEARING

- shaft (Replaces bearing P39626)

1шт.

32

NSS

NOT SOLD SEPARAT

SHAFT - motor, order motor assembly P1943722

1шт.

33

P1230425

O-RING

- small

1шт.

Part of seal kit P/N P2249663

1шт.

34

P130471

O-RING

- large

1шт.

Part of seal kit P/N P2249663

1шт.

35

P3030167

COVER

- motor

1шт.

36

P1027962

FINGER

LUG - timing

1шт.

37

P630413

O-RING

- lug

1шт.

Part of seal kit P/N P2249663

1шт.

38

P36968

BRAKE

TAB - lock

1шт.

39

P34213N

NUT

- lug retaining

1шт.

40

614-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

- hex, full thread, 20 - 2.5 x 50 mm, Cover (Replaces bolt P133834)

12шт.

41

P34717L

WASHER, LOCK

WASHER - lock

12шт.

P2249663

SEAL PACKAGE

KIT - seal, Includes: Ref. 33, 34 and 37 on figures 8-179 and 8-181

1шт.
