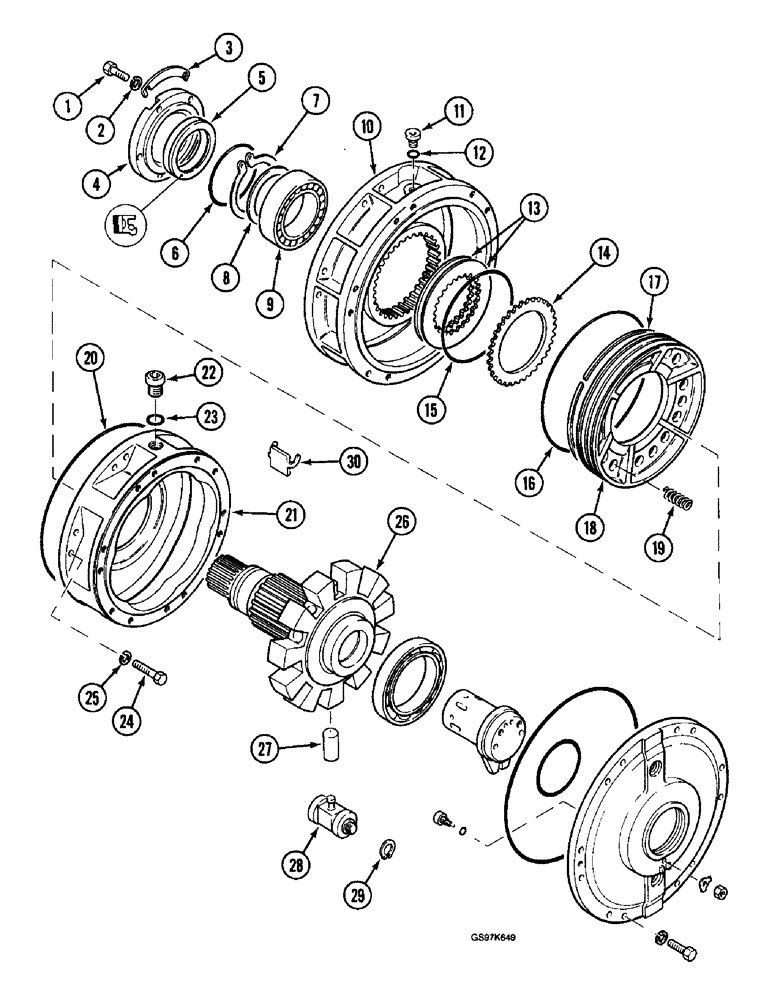

Запчасти Case 220B (8-178) - SWING HYDRAULIC MOTOR, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

P1943722R

REMAN-HYD MOTOR

MOTOR ASSEMBLY - swing hydraulic (Replaces motor assembly P1943722), Includes: Ref. 1 - 30 and 31 - 41 on Fig. 8-180

1шт.

1

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- cover, hex, full threads, 10 - 1.5 x 35 mm

6шт.

2

P34711E

LOCK WASHER,M10

WASHER, LOCK, M10

6шт.

3

P1123625

SHIM KIT

KIT - shim, cover

1шт.

4

P3330126

CAP

COVER - motor

1шт.

5

P1249672

ASSEMBLY

SEAL - cover

1шт.

Part of seal kit P/N P2249663

1шт.

6

P1630422

O-RING

- cover

1шт.

Part of seal kit P/N P2249663

1шт.

7

P36349

RING, SNAP

RING - snap, bearing retaining

1шт.

8

P245444

WASHER

- bearing

1шт.

9

P1139816

BEARING

- shaft

1шт.

10

P3930105

SLEWING RING

HOUSING - brake

1шт.

11

P737464

PLUG

- housing

1шт.

12

P30401

O-RING,2.5mm Thk x 18.5mm ID

- plug

1шт.

13

P943126

DISC

- friction

10шт.

14

P1839318

DISC

- steel

9шт.

15

P1230490

O-RING

- piston, small

1шт.

Part of seal kit P/N P2249663

1шт.

16

P230430

O-RING

- piston, large

1шт.

Part of seal kit P/N P2249663

1шт.

17

P3946058

SEGMENT

RING - piston

2шт.

18

P2646273

PISTON

- brake, no longer available

1шт.

19

P1038164

COMPRESSION SPRING

SPRING - piston

24шт.

20

P130471

O-RING

- motor housing

1шт.

Part of seal kit P/N P2249663

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - hydraulic motor, order motor assembly P1943722

1шт.

22

P237405

PLUG

- housing

2шт.

23

P30491

O-RING

- plug

2шт.

Part of seal kit P/N P2249663

1шт.

24

P933856

SCREW

BOLT - housing

12шт.

25

P34718M

WASHER, LOCK

WASHER - lock

12шт.

26

NSS

NOT SOLD SEPARAT

ROTOR - motor, order motor assembly P1943722

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON - motor, order motor assembly P1943722

10шт.

28

NSS

NOT SOLD SEPARAT

SHAFT - roller, motor, order motor assembly P1943722

10шт.

29

P36381

RING, SNAP

RING - snap, roller shaft, 1.85 mm (0.073 inch) thick

1шт.

29

P836309

RING, SNAP

RING - snap, roller shaft, 2.65 mm (0.104 inch) thick

1шт.

30

P5537701

KIT

PLATE - wear, rotor, set of 20 (Replaces plate P3637779)

1шт.

P2249663

SEAL PACKAGE

KIT - seal, Includes: Ref. 5, 6, 15, 16, 20 and 23, continued on next figure

1шт.
