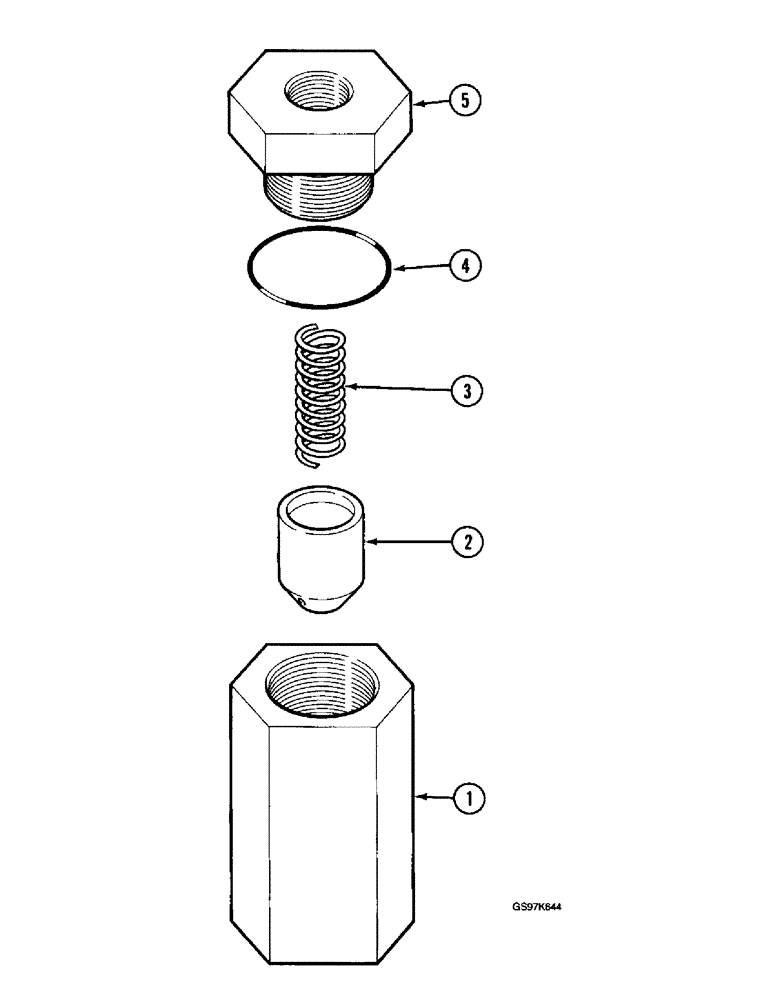

Запчасти Case 220B (8-168) - CHECK VALVE, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

P2043307

BLOCK ASSY.

VALVE ASSEMBLY - check, hydraulic, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - check valve, order valve assembly P2043307

1шт.

2

NSS

NOT SOLD SEPARAT

POPPET - check valve, order valve assembly P2043307

1шт.

3

P1638149

COMPRESSION SPRING

SPRING - poppet

1шт.

4

P30481

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- cap

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - check valve, order valve assembly P2043307

1шт.
