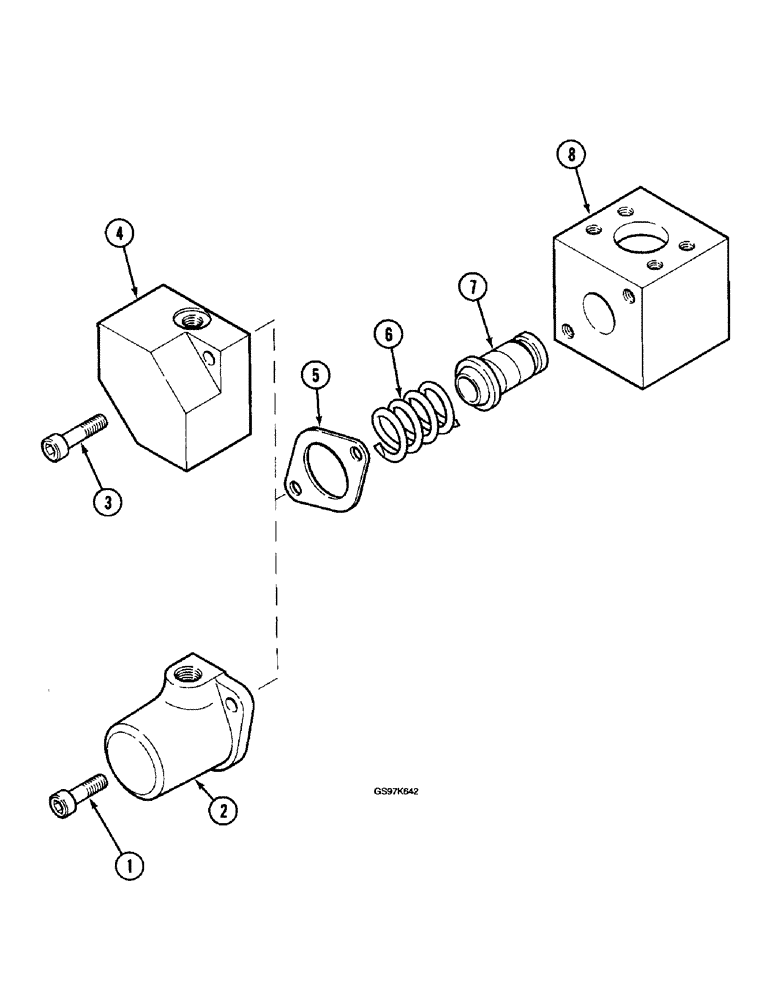

Запчасти Case 220B (8-164) - PRESSURE REGULATING VALVE, 13 BAR (08) - HYDRAULICS

P1643698

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, 185 psi, 1275 KPa, 13 bar, no longer available, order P3743383 when replacing complete valve, parts list Figure 8-166, Includes: Ref. 1 - 8

2шт.

1

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

BOLT - hex socket, 10 - 1.5 x 20 mm, Cl 8.8 - Mounting, Used with Ref 2 round-type end cap (Replaces bolt P32931)

2шт.

2

REF

INSTRUCTION

CAP - end, round type, no longer available, order block-type cap P1229815, Ref. 4

1шт.

3

P832916

SCREW

BOLT - mounting, used with block-type cap P1229815, Ref. 4

2шт.

4

P1229815

CAP

- end, block type, replaces round-type cap used on some machines

1шт.

5

P5046005

SEAL

GASKET - end cap

1шт.

6

P1038168

COMPRESSION SPRING

SPRING - regulator valve

1шт.

7

P3327801

VALVE POPPET

PLUNGER - valve

1шт.

8

NSS

NOT SOLD SEPARAT

BLOCK - pressure regulating valve, order valve assembly P1643698

1шт.
