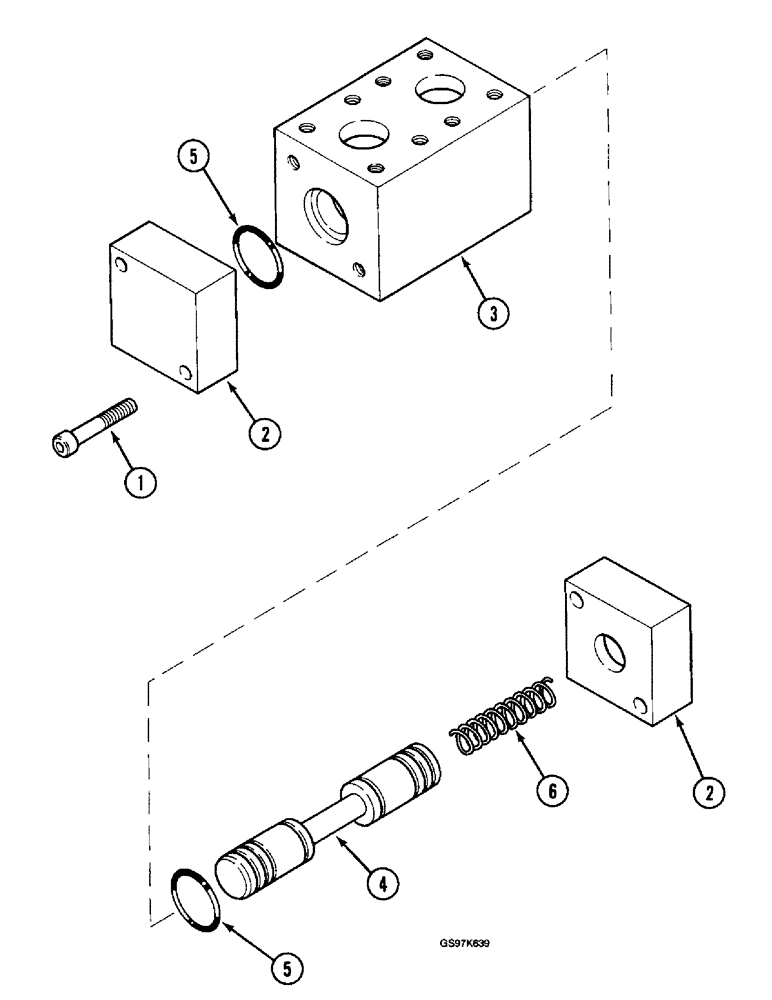

Запчасти Case 220B (8-158) - PARALLEL CONTROL REGULATOR VALVE, P.I.N. 74570 THROUGH 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

P1743350

SELECTOR

VALVE ASSEMBLY - regulator, parallel control, Includes: Ref. 1 - 6

1шт.

1

P1232958

SCREW

BOLT - hex socket, 8 mm x 45 mm, class 10.9

4шт.

2

P929897

CAP

COVER - end, valve body

2шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - spool, valve, order valve assembly P1743350

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve, order valve assembly P1743350

1шт.

5

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

End, cover to housing (Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk

2шт.

6

P38160

COMPRESSION SPRING

SPRING - spool

1шт.
