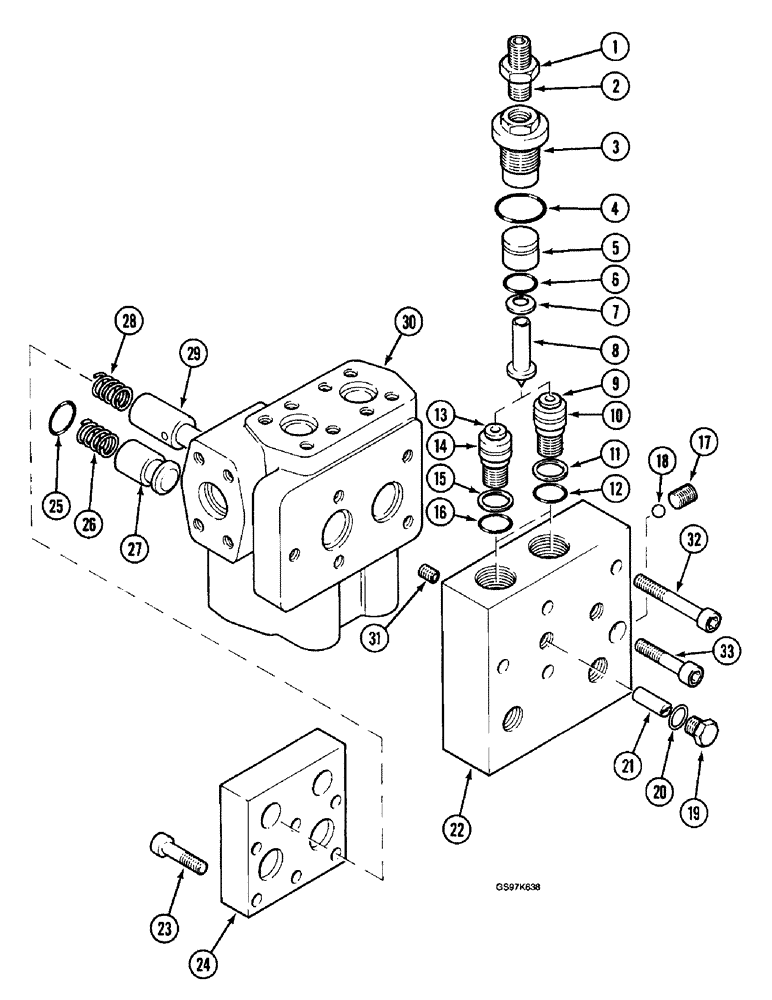

Запчасти Case 220B (8-156) - POWER SENSING VALVE, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

P1343315

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, Includes: Ref. 1 - 33

1шт.

P1143382

SHIN

BLOCK ASSEMBLY - power sensing valve

1шт.

1

P34564

NUT

- locking

2шт.

2

P32859

SCREW

- adjusting

2шт.

3

P2037720

CAP

BODY - valve

2шт.

4

P130486

O-RING

- body

2шт.

5

P929835

TAPPET

SLEEVE - plunger

2шт.

6

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Sleeve (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

2шт.

7

P34909

RUBBER WASHER

SPRING - Belleville, plunger

1шт.

8

P1229870

GUIDE

PLUNGER - valve

2шт.

P1343320

VALVE POPPET

HOUSING ASSEMBLY - plunger seat, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - plunger, order housing assembly P1343320

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - plunger seat, order housing assembly P1343320

1шт.

11

P4746098

BACK-UP RING

RING - backup, O-ring

1шт.

12

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Housing (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

1шт.

P1343321

VALVE POPPET

HOUSING ASSEMBLY - plunger seat, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

SEAT - plunger, order housing assembly P1343321

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - plunger seat, order housing assembly P1343321

1шт.

15

P4746098

BACK-UP RING

RING - backup, O-ring

1шт.

16

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Housing (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

1шт.

17

P32830

SCREW

- ball retaining

1шт.

18

P31004

BALL

- steel

1шт.

P1437455

PLUG

ASSEMBLY - valve block, Includes: Ref. 19 and 20

2шт.

19

NSS

NOT SOLD SEPARAT

PLUG - valve block, order plug assembly P1437455

1шт.

20

P7046042

SEAL

- plug

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON - valve, order block assembly P1143382

2шт.

22

NSS

NOT SOLD SEPARAT

BLOCK - valve, order block assembly P1143382

1шт.

P1343316

SHIN

HOUSING ASSEMBLY - with block, power sensing valve, Includes: Ref. 23 - 31

1шт.

23

P532914

SCREW

BOLT - block mounting

6шт.

24

P1223353

BLOCK - end, no longer available

1шт.

25

P130486

O-RING

- block

6шт.

26

P1038119

COMPRESSION SPRING

SPRING - poppet

2шт.

27

NSS

NOT SOLD SEPARAT

POPPET - power sensing valve, order housing assembly P1343316

2шт.

28

P1038172

COMPRESSION SPRING

SPRING - spool

2шт.

29

NSS

NOT SOLD SEPARAT

SPOOL - power sensing valve, order housing assembly P1343316

2шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - spool, order housing assembly P1343316

1шт.

31

P233094

SCREW

PLUG - orifice

2шт.

32

P32954

SCREW

BOLT - valve block, long

4шт.

33

864-10050

HEX SOC SCREW,M10 x 50mm, Cl 8.8

Hex socket, 10 - 1.5 x 50 mm, Valve block (Replaces bolt P32937)

1шт.
