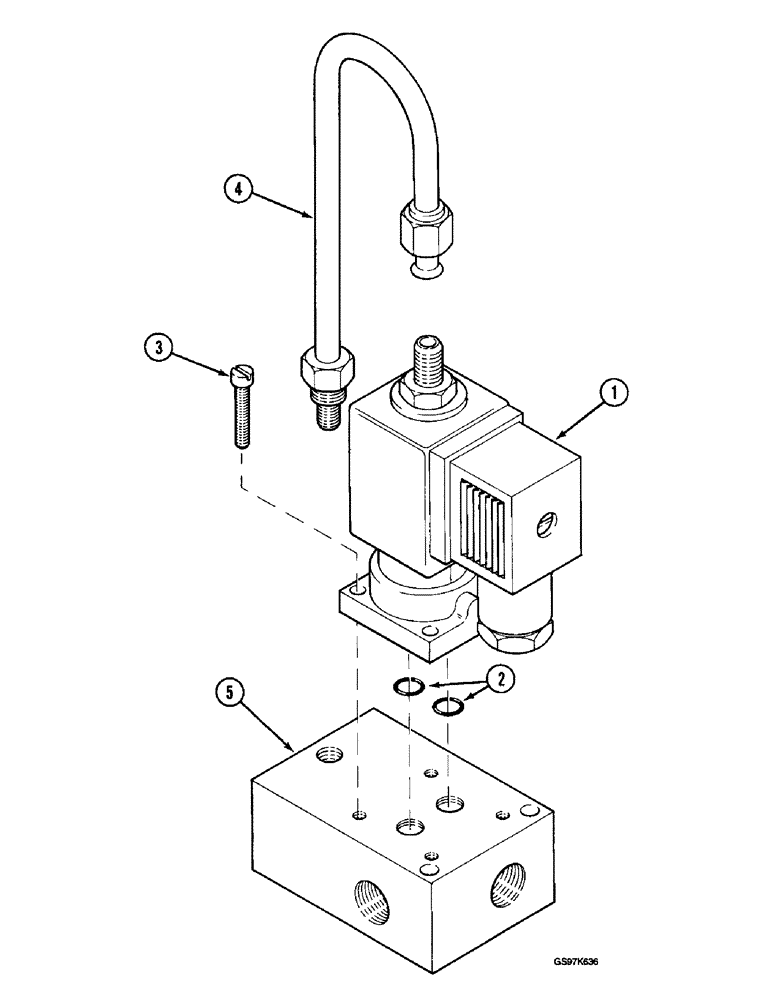

Запчасти Case 220B (8-152) - SOLENOID CONTROL VALVE, 13 BAR, P.I.N. 74466 THROUGH 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

P3143633

BLOCK ASSY.

VALVE ASSEMBLY - control, solenoid, Includes: Ref. 1 - 5

1шт.

P3743314

SHIN

COIL ASSEMBLY - solenoid control valve, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

COIL - solenoid valve, order coil assembly P3743314

1шт.

2

P2230485

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- coil block

2шт.

3

P3333029

SCREW

- coil to manifold block

4шт.

4

P6947173

PIPE

TUBE - manifold, Serial Range: block-coil

1шт.

5

NSS

NOT SOLD SEPARAT

BLOCK - coil, mounting, order valve assembly P3143633

1шт.
