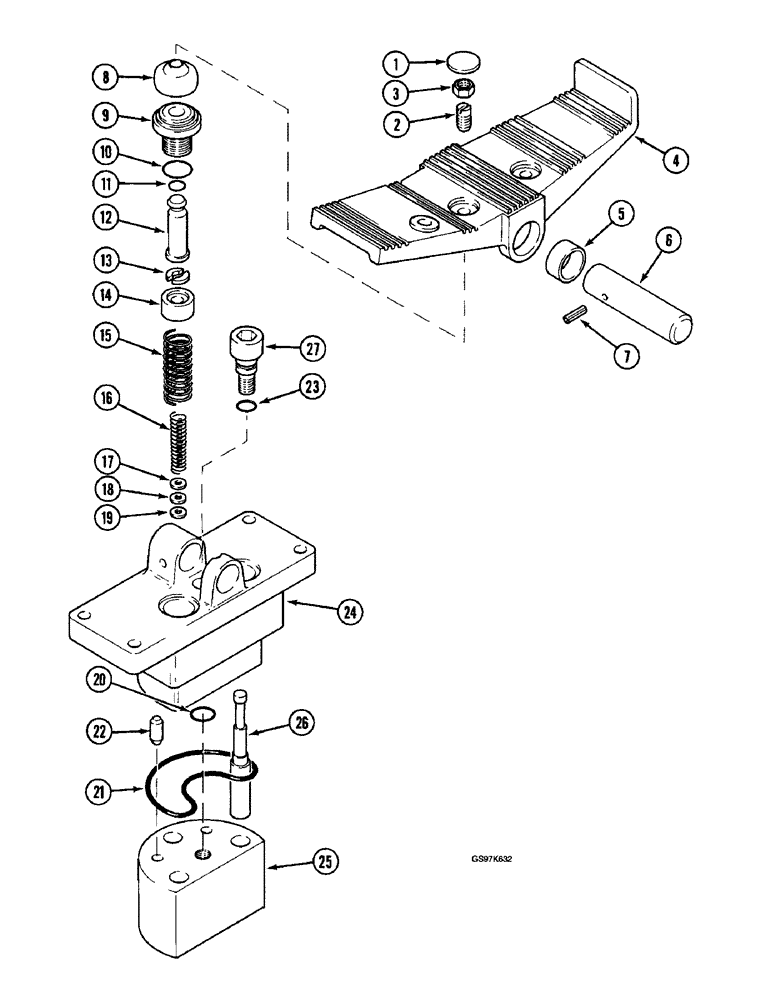

Запчасти Case 220B (8-144) - FOOT CONTROL VALVE, REXROTH MANUFACTURED, IF USED, P.I.N. 74510 THRU 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

P1643394

BLOCK ASSY.

VALVE ASSEMBLY - control, foot, Includes: Ref. 1 - 7

2-3шт.

P5242747

PEDAL

ASSEMBLY - foot

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - pedal set screw, order pedal assembly P5242747

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW - set, foot pedal, order pedal assembly P5242747

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - hex, jam, order pedal assembly P5242747

1шт.

4

NSS

NOT SOLD SEPARAT

PEDAL - valve control, order pedal assembly P5242747

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - pedal, order pedal assembly P5242747

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - pedal pivot, order pedal assembly P5242747

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - roll pivot shaft, order pedal assembly P5242747

1шт.

P3749679

KIT

PISTON ASSEMBLY - foot control valve, Includes: Ref. 8 - 12

2шт.

8

NSS

NOT SOLD SEPARAT

BOOT - piston, order kit P5449619

1шт.

Part of seal repair kit P/N P6149640

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - piston, order piston assembly P3749679

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston guide, outer, order kit P5449619

1шт.

Part of seal repair kit P/N P6149640

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston guide, inner, order kit P5449619

1шт.

Part of seal repair kit P/N P6149640

1шт.

12

NSS

NOT SOLD SEPARAT

PISTON - foot control valve, order piston assembly P3749679

1шт.

P5449661

KIT

- spring and shim, Includes: Ref. 13 - 16

2шт.

13

NSS

NOT SOLD SEPARAT

ORIFICE - spring guide, order kit P5449661

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - spring, order kit P5449661

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING - outer, order kit P5449661

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - inner, order kit P5449661

1шт.

17

P1545342

BLOCK

SHIM - 0.1 mm (0.004 inch) thick

1шт.

18

P1545342

BLOCK

SHIM - 0.2 mm (0.008 inch) thick

1шт.

19

P1545343

BLOCK

SHIM - 0.5 mm (0.020 inch) thick

1шт.

P5449620

KIT

- seal, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - body to block, small, order kit P5449620

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - body to block, large, order kit P5449620

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - block to body, order kit P5449620

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING - retainer stud, order kit P5449620

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - foot control valve, order valve assembly P1643394

1шт.

25

NSS

NOT SOLD SEPARAT

BLOCK - foot pedal mounting, order valve assembly P1643394

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL - foot control valve, order valve assembly P1643394

2шт.

27

NSS

NOT SOLD SEPARAT

STUD - retainer, foot control valve, order valve assembly P1643394

1шт.

P6149640

SEAL PACKAGE

KIT - seal repair, Includes: Ref. 8, 10 and 11, Replaces kit P5449619

1шт.
