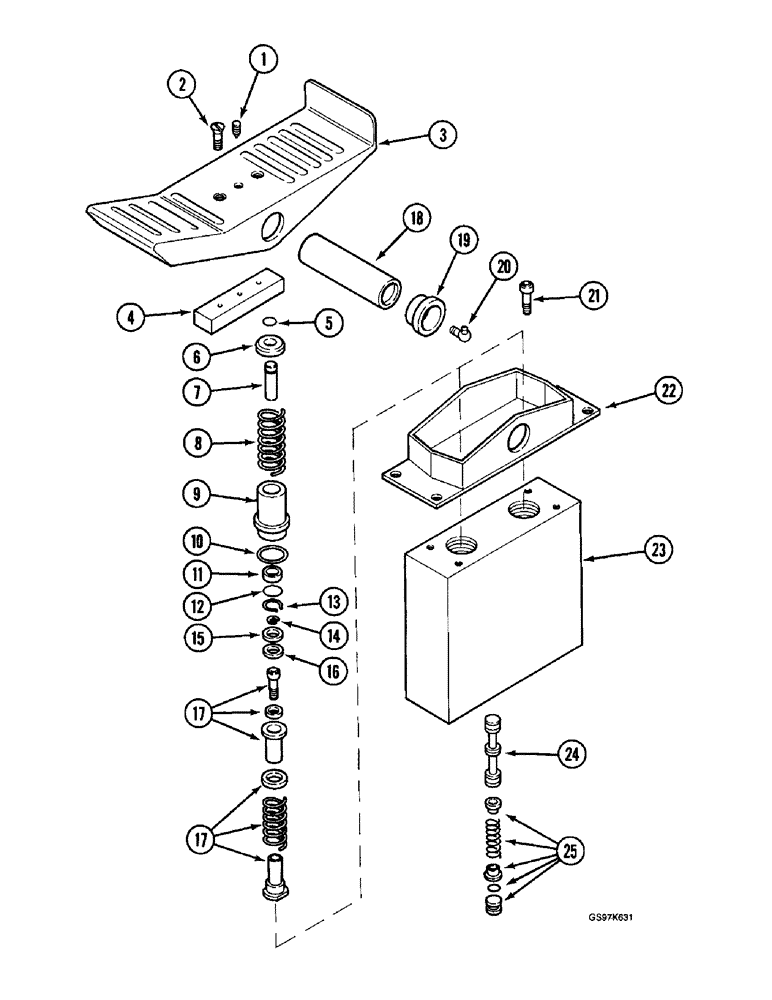

Запчасти Case 220B (8-142) - FOOT CONTROL VALVE, REXROTH MANUFACTURED, IF USED, P.I.N. 74441 THROUGH 74509 (08) - HYDRAULICS

P2643318

BLOCK ASSY.

VALVE ASSEMBLY - control, foot, no longer available, order valve assembly P1643394, parts list Figure 8-144 or 8-146, Includes: Ref. 25

2-3шт.

P4842792

PEDAL

ASSEMBLY - foot, Includes: Ref. 1 - 4

1шт.

1

P32826

SCREW - foot pedal, no longer available

1шт.

2

P32446

SCREW

- foot pedal

2шт.

3

NSS

NOT SOLD SEPARAT

PEDAL - valve control, order pedal assembly P4842792

1шт.

4

NSS

NOT SOLD SEPARAT

BLOCK - pedal stop, order pedal assembly P4842792

1шт.

P2737753

CARTRIDGE

PISTON ASSEMBLY - foot control valve, Includes: Ref. 5 - 14

2шт.

5

NSS

NOT SOLD SEPARAT

RING - snap, piston, order piston assembly P2737753

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - spring, order piston assembly P2737753

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - foot control valve, order piston assembly P2737753

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - foot control valve, order piston assembly P2737753

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE - spring, order piston assembly P2737753

1шт.

10

P1630415

O-RING

- spring guide

1шт.

11

P3946095

SEAL

- spring guide

1шт.

12

NSS

NOT SOLD SEPARAT

SPACER - seal, order piston assembly P2737753

1шт.

13

NSS

NOT SOLD SEPARAT

RING - snap, large, order piston assembly P2737753

1шт.

14

NSS

NOT SOLD SEPARAT

RING - snap, small, order piston assembly P2737753

1шт.

15

P1545342

BLOCK

SHIM - 0.2 mm (0.008 inch) thick

1шт.

16

P1545343

BLOCK

SHIM - 0.5 mm (0.020 inch) thick

1шт.

17

NSS

NOT SOLD SEPARAT

REGULATOR ASSEMBLY - foot control valve, component parts not serviced separately, order valve assembly

2шт.

P4046287

SUPPORT

PLATE ASSEMBLY - foot pedal mounting, Includes: Ref. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

PIN - foot pedal pivot, order plate assembly P4046287

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - mounting plate, order plate assembly P4046287

2шт.

20

P45828

NIPPLE, LUBE

FITTING - grease, lubrication, if used

1шт.

21

P1232912

SCREW

BOLT - plate mounting

4шт.

22

NSS

NOT SOLD SEPARAT

PLATE - foot pedal mounting, order plate assembly P4046287

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - foot control valve, order valve assembly P2643318

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - foot control valve, order valve assembly P2643318

2шт.

25

P4046283

CARTRIDGE

SPRING ASSEMBLY - spool return, component parts not serviced separately

2шт.
