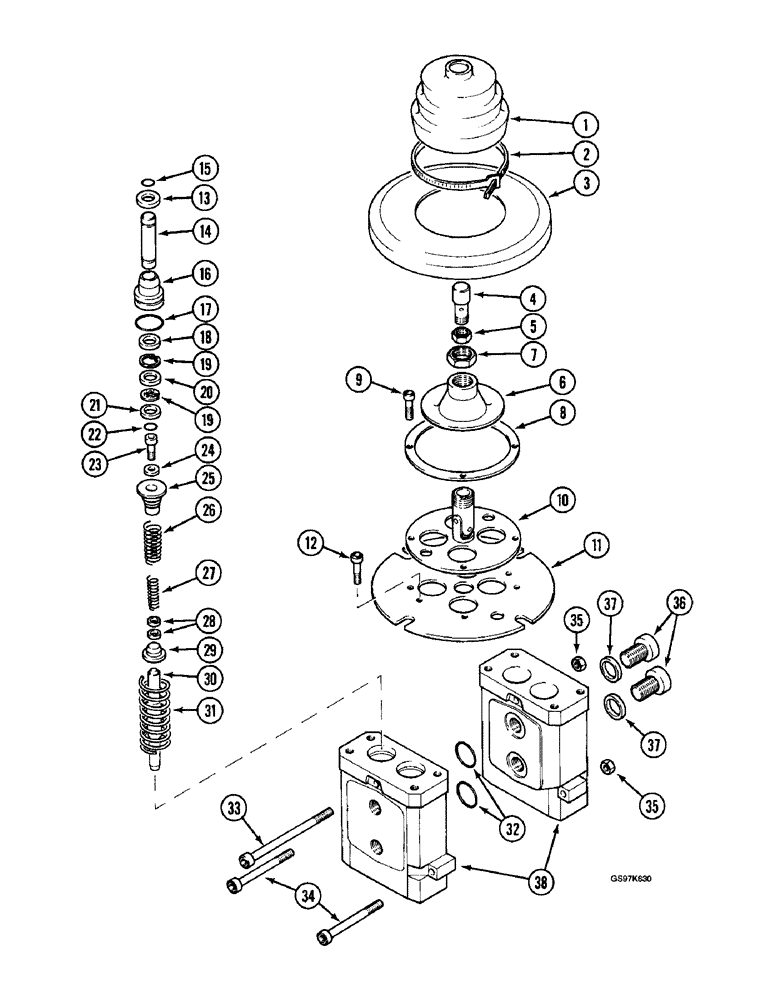

Запчасти Case 220B (8-140) - HAND CONTROL VALVE, MONSUN-TISON MANUFACTURED, IF USED (08) - HYDRAULICS

P2643328

BLOCK ASSY.

VALVE ASSEMBLY - hand control, Includes: Ref. 1 - 38

2шт.

1

P2340449

BELLOWS

BOOT - protective, rubber

1шт.

2

NSS

NOT SOLD SEPARAT

STRAP - tie, boot, order valve assembly P2643328

1шт.

3

P7230165

PROTECTOR

RING - rubber, valve body

1шт.

4

P1027976

PIN

- control lever

1шт.

5

P34546

NUT

- hex, 14 mm

1шт.

P5328294

LARGE PLATE

KIT - cam and plate, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

ACTUATOR - control lever, order kit P5328294

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - actuator, order kit P5328294

1шт.

8

NSS

NOT SOLD SEPARAT

RING - top cover, order kit P5328294

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW - ring, order kit P5328294

4шт.

10

NSS

NOT SOLD SEPARAT

JOINT - universal, control lever, order kit P5328294

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - mounting, order kit P5328294

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - mounting, plate, order kit P5328294

4шт.

P5949644

CARTRIDGE

KIT - cartridge and guide (Replaces kit P3143689), Includes: Ref. 13 - 22

4шт.

13

NSS

NOT SOLD SEPARAT

WASHER - guide, order kit P5949644

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - guide, order kit P5949644

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - guide pin, order kit P5949644

1шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - cartridge, order kit P5949644

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - guide, outer, order kit P5949644

1шт.

18

P8046003

OIL SEAL

SPACER - cartridge

1шт.

19

P936337

SPARE PART SET

KIT - retainer

1шт.

20

NSS

NOT SOLD SEPARAT

SPACER - cartridge, order kit P5949644

1шт.

21

NSS

NOT SOLD SEPARAT

SPACER - cartridge, order kit P5949644

1шт.

22

P2230446

O-RING

- guide, inner

1шт.

P3143664

CARTRIDGE

KIT - spring, Includes: Ref. 23 - 31

4шт.

23

NSS

NOT SOLD SEPARAT

SCREW - cartridge, order kit P3143664

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - screw, order kit P3143664

1шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - spring, upper, order kit P3143664

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - cartridge, outer, order kit P3143664

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - cartridge, inner, order kit P3143664

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - spring, order kit P3143664

2шт.

29

NSS

NOT SOLD SEPARAT

GUIDE - spring, lower, order kit P3143664

1шт.

30

NSS

NOT SOLD SEPARAT

SPOOL - regulating, order kit P3143664

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - spool return, order kit P3143664

1шт.

P144988

TRUSS ROD

KIT - seal and tie bolt, Includes: Ref. 32 - 37

1шт.

32

P2230445

O-RING

- valve body

2шт.

33

NSS

NOT SOLD SEPARAT

BOLT - upper, order kit P144988

1шт.

34

NSS

NOT SOLD SEPARAT

BOLT - lower, order kit P144988

2шт.

35

NSS

NOT SOLD SEPARAT

NUT - tie bolt, order kit P144988

3шт.

36

NSS

NOT SOLD SEPARAT

PLUG - valve body, order kit P144988

2шт.

37

NSS

NOT SOLD SEPARAT

SEAL - plug, order kit P144988

2шт.

38

NSS

NOT SOLD SEPARAT

SECTION - valve body, order valve assembly P2643328

2шт.
