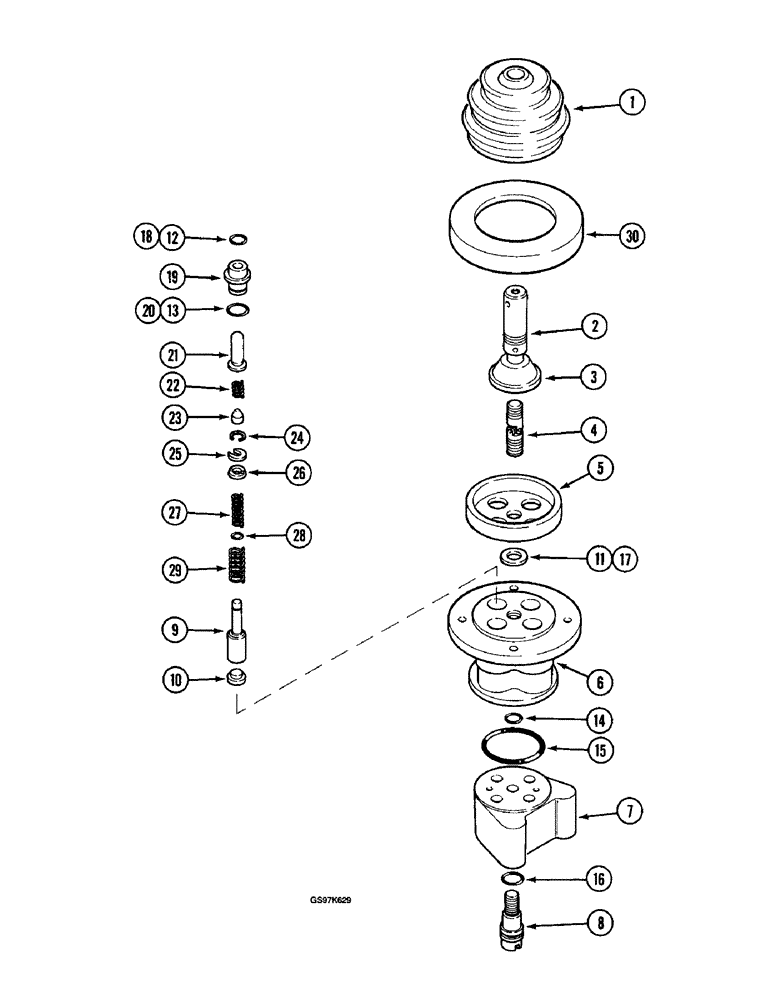

Запчасти Case 220B (8-138) - HAND CONTROL VALVE, REXROTH MANUFACTURED, IF USED (08) - HYDRAULICS

P2643328

BLOCK ASSY.

VALVE ASSEMBLY - hand control, Includes: Ref. 1 - 29

2шт.

1

P5446210

BELLOWS

BOOT - protective, rubber

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER - control, order valve assembly P2643328

1шт.

3

NSS

NOT SOLD SEPARAT

CAM - control lever, order valve assembly P2643328

1шт.

4

P5242740

COUPLING

JOINT - universal, control lever

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - top, cover, order valve assembly P2643328

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - valve, upper, order valve assembly P2643328

1шт.

7

NSS

NOT SOLD SEPARAT

BLOCK - port, valve, order valve assembly P2643328

1шт.

8

NSS

NOT SOLD SEPARAT

STUD - retainer, body to block, order valve assembly P2643328

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - regulating, order valve assembly P2643328

4шт.

10

NSS

NOT SOLD SEPARAT

SEAT - spring, order valve assembly P2643328

4шт.

P6149633

SEAL PACKAGE

KIT - seal, guide (Replaces kit P3749651), Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER - Teflon, plate to valve body, order kit P6149633

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - guide, inner, order kit P6149633

4шт.

13

NSS

NOT SOLD SEPARAT

O-RING - guide, outer, order kit P6149633

4шт.

P3749617

KIT

- seal, valve body, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - valve body, small, order kit P3749617

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - valve body, large, order kit P3749617

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - retainer stud, order kit P3749617

1шт.

P6149641

KIT

- cartridge and guide (Replaces kit P3749630), Includes: Ref. 17 - 24

4шт.

17

NSS

NOT SOLD SEPARAT

SPACER - Teflon, plate to valve body, order kit P6149641

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - guide, inner, order kit P6149641

1шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - cartridge, order kit P6149641

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - guide, outer, order kit P6149641

1шт.

21

NSS

NOT SOLD SEPARAT

CARTRIDGE - control, order kit P6149641

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - cartridge, order kit P6149641

1шт.

23

NSS

NOT SOLD SEPARAT

GUIDE - cartridge spring, order kit P6149641

1шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - guide, order kit P6149641

1шт.

P3749621

KIT

- cartridge spring, Includes: Ref. 25 - 29

4шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - spring, stop, order kit P3749621

1шт.

26

NSS

NOT SOLD SEPARAT

STOP - spring, order kit P3749621

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - cartridge, inner, order kit P3749621

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - spring, 0.1 mm (0.004 inch) thick, order kit P3749621

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - spring, 0.2 mm (0.008 inch) thick, order kit P3749621

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - spring, 0.5 mm (0.020 inch) thick, order kit P3749621

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - cartridge, outer, order kit P3749621

1шт.

30

P7230184

PROTECTOR

RING - rubber, valve body

2шт.
