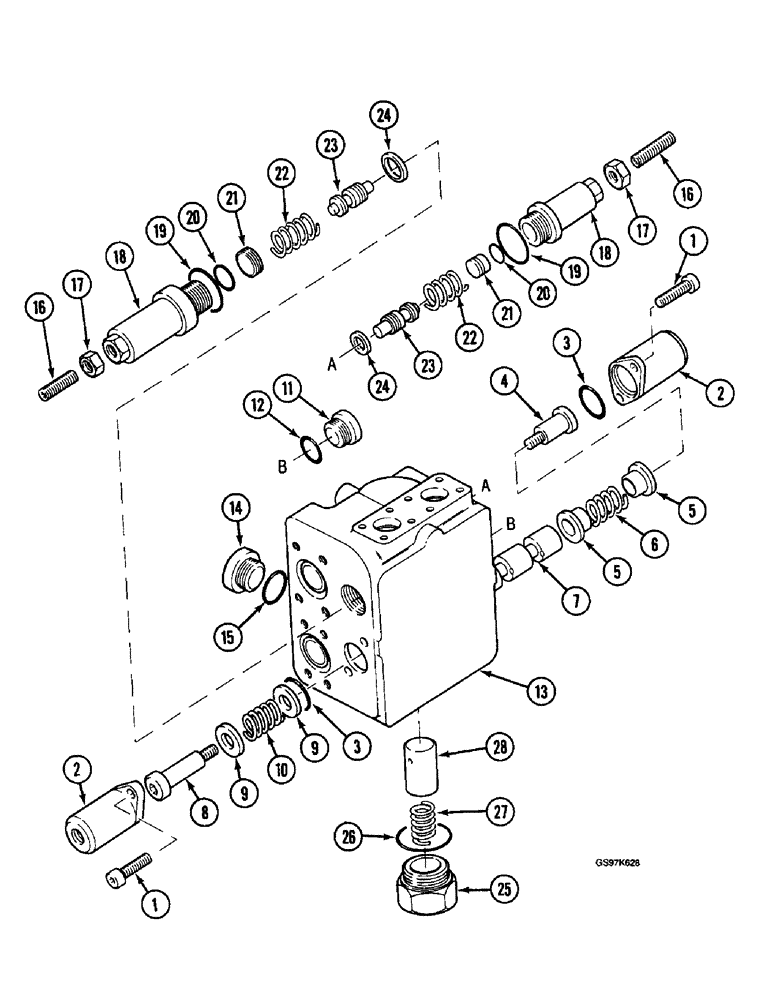

Запчасти Case 220B (8-136) - SWING CONTROL AND OPTIONAL CONTROL VALVE, P.I.N. 74441 THRU 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
P2443638
BLOCK ASSY.
VALVE ASSEMBLY - control, swing and optional, Includes: Ref. 1 - 28
2шт.
1
P32921
SCREW,Hex Soc Hd, M8 x 20, 10.9
- end, cap mounting
4шт.
2
P1640401
CAP
- end, spool
2шт.
3
238-6125
O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro
- end, cap, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)
2шт.
4
P930008
END FITTING
STUD - spring, retaining, no longer available
1шт.
5
P2328851
CUPEL
SEAT - spring
2шт.
6
P1838162
COMPRESSION SPRING
SPRING - spool
1шт.
7
NSS
NOT SOLD SEPARAT
SPOOL - control valve, order valve assembly P2443638
1шт.
8
P930007
END FITTING
STUD - spring, retaining
1шт.
9
P3128701
WASHER
- spring, retaining
2шт.
10
P1638101
COMPRESSION SPRING
SPRING - spool
1шт.
11
P1737447
PLUG
- valve housing, spool end
1шт.
12
P1630431
O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro
- plug
1шт.
13
P5746063
SEAL
HOUSING - control valve
1шт.
14
P1437458
PLUG
ASSEMBLY - valve housing, port side, Includes: Ref. 15
1шт.
15
NSS
NOT SOLD SEPARAT
O-RING - plug, order plug assembly P1437458
1шт.
16
P32850
SCREW
- set, adjusting
2шт.
17
P34564
NUT
- hex, locking
2шт.
18
P3143608
CAP
BODY - relief valve
2шт.
19
P130486
O-RING
- relief valve body
2шт.
20
P1630451
O-RING
- plunger seat
2шт.
21
P1229891
TAPPET
SEAT - plunger
2шт.
22
P1538128
SPRING
- plunger
2шт.
P2643399
VALVE POPPET
PLUNGER ASSEMBLY - relief valve, Includes: Ref. 23 and 24
2шт.
23
NSS
NOT SOLD SEPARAT
PLUNGER - relief valve, order plunger assembly P2643399
1шт.
24
P545234
SEAL
- plunger
1шт.
25
P930006
GUIDE
BODY - load check valve
1шт.
26
238-6125
O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro
- body, load check valve, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)
1шт.
27
P138102
COMPRESSION SPRING
SPRING - load check valve
1шт.
28
P2643397
VALVE POPPET
POPPET - load check valve
1шт.
