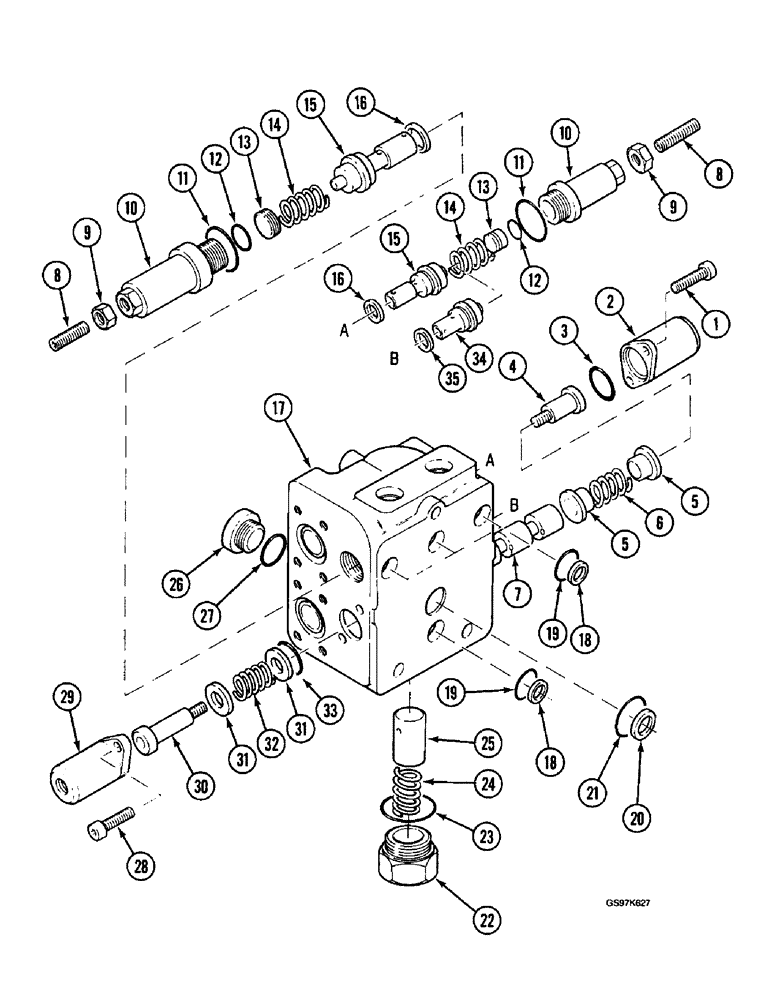

Запчасти Case 220B (8-134) - PARALLEL AND DRIVE CONTROL VALVE, PARALLEL CONTROL VALVE SECTION, P.I.N. 74441 THRU 74506 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
P3143607
DISTRIBUTOR
SECTION ASSEMBLY - parallel control valve, Includes: Ref. 1 - 35
1шт.
1
P32921
SCREW,Hex Soc Hd, M8 x 20, 10.9
- end, cap mounting
2шт.
2
P1640401
CAP
- end, parallel control valve, spool
1шт.
3
238-6125
O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro
- end cap, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)
1шт.
4
P930008
END FITTING
STUD - spring, retaining, no longer available
1шт.
5
P2328851
CUPEL
SEAT - spring
2шт.
6
P1838162
COMPRESSION SPRING
SPRING - parallel control valve
1шт.
7
NSS
NOT SOLD SEPARAT
SPOOL - parallel control valve, order section assembly P3143607
1шт.
8
P32850
SCREW
- adjusting
3шт.
9
P34564
NUT
- hex, locking
3шт.
10
P3143608
CAP
BODY - relief valve
3шт.
11
P130486
O-RING
- relief valve body
3шт.
12
P1630451
O-RING
- plunger seat
3шт.
13
P1229891
TAPPET
SEAT - plunger
3шт.
14
P1538128
SPRING
- plunger
3шт.
P2643399
VALVE POPPET
PLUNGER ASSEMBLY - valve, long, Includes: Ref. 15 and 16
2шт.
15
NSS
NOT SOLD SEPARAT
PLUNGER - valve, order plunger assembly P2643399
1шт.
16
P545234
SEAL
- plunger
1шт.
17
NSS
NOT SOLD SEPARAT
HOUSING - parallel control valve, order section assembly P3143607
1шт.
18
P1745337
BACK-UP RING
RING - retaining, small O-ring
4шт.
19
238-6116
O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro
(Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk
4шт.
20
P1745338
BACK-UP RING
RING - retaining, large O-ring
1шт.
21
P1230443
O-RING
- large
1шт.
22
P930006
GUIDE
PLUG - load check valve
1шт.
23
238-6125
O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro
- plug, load check valve, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)
1шт.
24
P138102
COMPRESSION SPRING
SPRING - poppet
1шт.
25
P2643397
VALVE POPPET
POPPET - load check valve
1шт.
26
P237405
PLUG
- housing
1шт.
27
P30491
O-RING
- plug
1шт.
28
P32921
SCREW,Hex Soc Hd, M8 x 20, 10.9
- end, cap mounting
2шт.
29
P1640401
CAP
- end, parallel control valve spool
1шт.
30
P930007
END FITTING
STUD - spring, retaining
1шт.
31
P3128701
WASHER
- spring, retaining
2шт.
32
P1638101
COMPRESSION SPRING
SPRING - spool
1шт.
33
238-6125
O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro
- end cap, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)
1шт.
P2643398
VALVE POPPET
PLUNGER ASSEMBLY - valve, short, Includes: Ref. 34 and 35
1шт.
34
NSS
NOT SOLD SEPARAT
PLUNGER - valve, order plunger assembly P2643398
1шт.
35
P545234
SEAL
- plunger
1шт.
Выбрано товаров: 38
