(2-06) - EXHAUST SYSTEM AND ENGINE AIR COOLING PARTS, P.I.N. 74441 THRU 74597, P.I.N. 03201 THRU 03216

Запчасти Case 220B (2-06) - EXHAUST SYSTEM AND ENGINE AIR COOLING PARTS, P.I.N. 74441 THRU 74597, P.I.N. 03201 THRU 03216 (02) - ENGINE

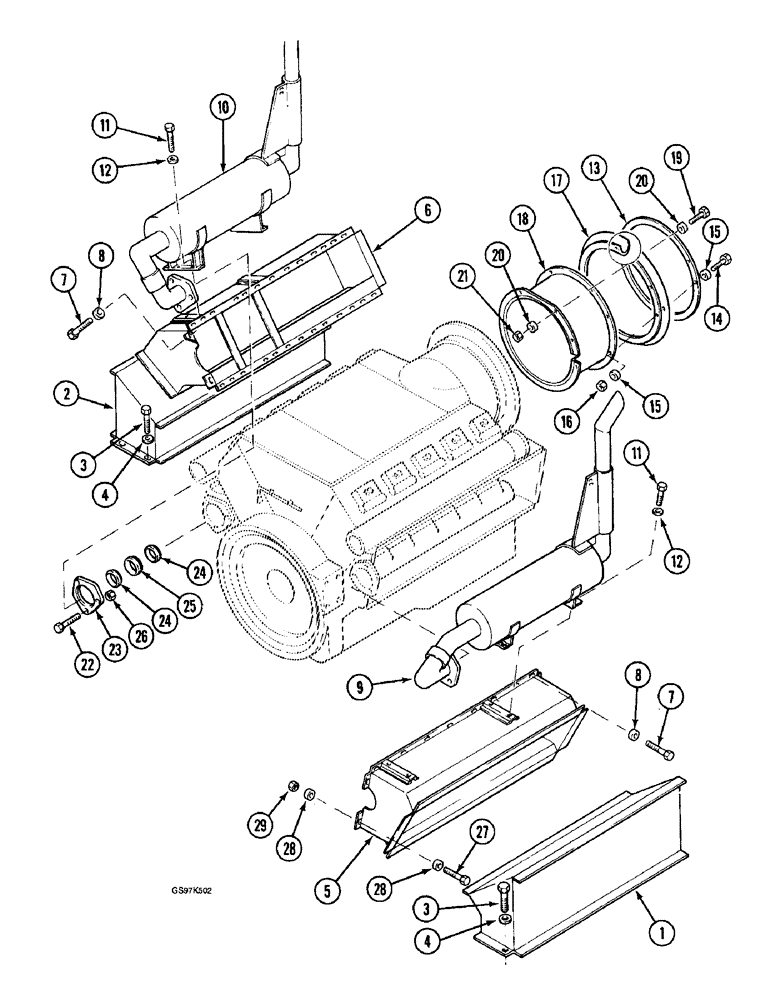

Схема запчастей Case 220B - (2-06) - EXHAUST SYSTEM AND ENGINE AIR COOLING PARTS, P.I.N. 74441 THRU 74597, P.I.N. 03201 THRU 03216 (02) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P2040359

VENT MANIFOLD

BOX - cooling air exhaust, left-hand

1шт.

2

P2040357

VENT MANIFOLD

BOX - cooling air exhaust, right-hand

1шт.

3

P33096

SCREW

BOLT - box

8шт.

4

P3528795

WASHER

SPACER - bolt, box

8шт.

5

P2040356

VENT MANIFOLD

DEFLECTOR - engine cooling air, left-hand

1шт.

6

P3940307

VENT MANIFOLD

DEFLECTOR - engine cooling air, right-hand

1шт.

7

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm, Deflector

51шт.

8

P4328728

WASHER

SPACER - bolt, deflector

51шт.

9

P1241485

MUFFLER

- left-hand

1шт.

10

P1241486

MUFFLER

- right-hand

1шт.

11

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Muffler Hex, M10 x 30, 8.8

8шт.

12

P3528795

WASHER

SPACER - bolt, muffler

8шт.

13

P3330140

SLEWING RING

RING - adapter, engine cooling air intake

1шт.

14

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm, Ring

6шт.

15

P3528799

WASHER

SPACER - bolt, ring

12шт.

16

832-10406

NUT,M6 x 1, Cl 8

LOCK, , Ring bolt (Replaces nut P234513) M6 x 1, Cl 8

6шт.

17

P1446031

SEAL

- sleeve

1шт.

18

P3940306

ENGINE VENT SLEEVE

SLEEVE - engine cooling air intake, no longer available

1шт.

19

P133884

SCREW

BOLT - sleeve

8шт.

20

P3528794

WASHER

SPACER - bolt, sleeve

16шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

8шт.

22

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- muffler, hex, 10 - 1.5 x 50 mm, class 10.9 (Replaces bolt P1633830)

6шт.

23

P730156

DEUTZ PART

BRACKET - muffler mounting, order from Deutz

2шт.

24

P1946003

SEAL

- muffler

4шт.

25

P7546008

DEUTZ PART

BUSHING - muffler bracket, order from Deutz

2шт.

26

P1634566

DEUTZ PART

NUT - muffler bolt, order from Deutz

6шт.

27

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm (Replaces bolt P33809)

4шт.

28

P3528799

WASHER

SPACER - bolt, 4 mm thick

8шт.

29

825-1406

NUT,M6, Cl 8

4шт.
