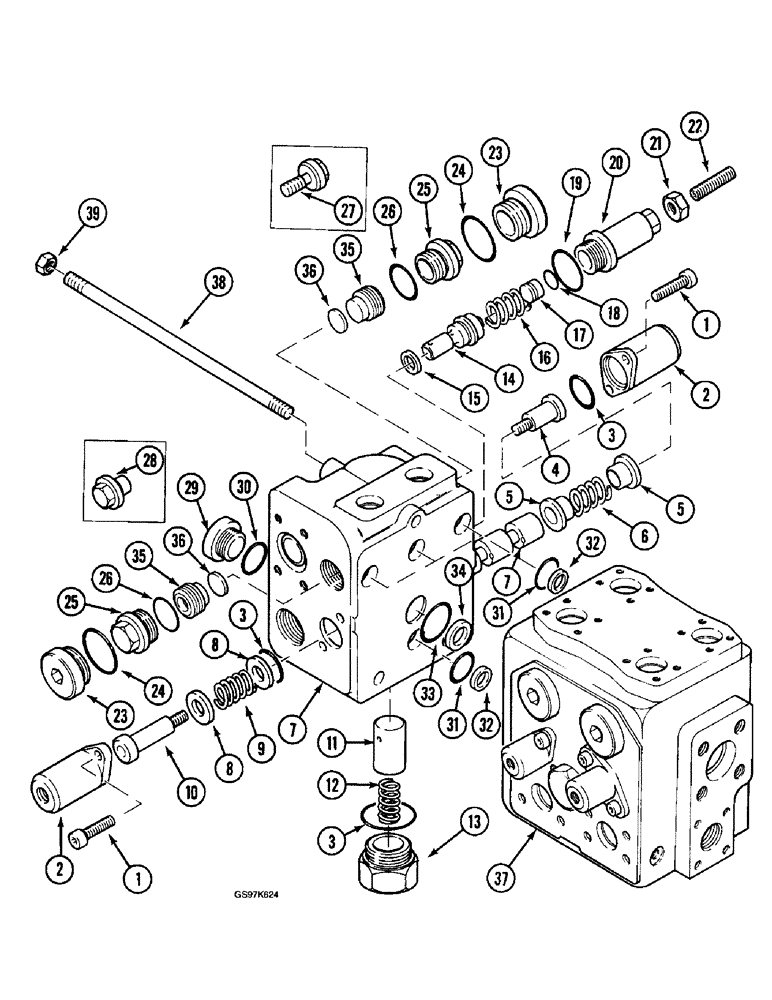

Запчасти Case 220B (8-128) - PARALLEL & DRIVE CONTROL VALVE, PARALLEL CONTROL VALVE SECTION, PIN 74507 - 74597, PIN 03201 & AFT (08) - HYDRAULICS

P3343647

DISTRIBUTOR

SECTION ASSEMBLY - parallel control valve, Includes: Ref. 1 - 34

1шт.

1

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

- end cap mounting

4шт.

2

P1640401

CAP

- end, parallel control valve spoof

2шт.

3

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- end cap, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

3шт.

4

P930008

END FITTING

STUD - spring retaining, no longer available

1шт.

5

P2328851

CUPEL

SEAT - spring

2шт.

6

P1838162

COMPRESSION SPRING

SPRING - parallel control valve

1шт.

7

NSS

NOT SOLD SEPARAT

SECTION - parallel control valve, order section assembly P3343647

1шт.

8

P3128701

WASHER

- spring retaining

2шт.

9

P1638101

COMPRESSION SPRING

SPRING - spool

1шт.

10

P930007

END FITTING

STUD - spring retaining

1шт.

11

P2643397

VALVE POPPET

POPPET - load check valve

1шт.

12

P138102

COMPRESSION SPRING

SPRING - poppet

1шт.

13

P930006

GUIDE

PLUG ASSEMBLY - load check valve

1шт.

14

NSS

NOT SOLD SEPARAT

PLUNGER - valve, order plug assembly P930006

1шт.

15

P545234

SEAL

- plunger

1шт.

16

P1538128

SPRING

- plunger

1шт.

P2643398

VALVE POPPET

PLUNGER - valve

1шт.

17

P1229891

TAPPET

SEAT - plunger

1шт.

18

P1630451

O-RING

- plunger seat

1шт.

19

P130486

O-RING

- relief valve body

1шт.

20

P3143608

CAP

BODY - relief valve

1шт.

21

P34564

NUT

- hex, locking

1шт.

22

P32850

SCREW

- adjusting

1шт.

23

P1737447

PLUG

- valve housing, outer

2шт.

24

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- outer plug

2шт.

25

P3237489

PLUG

- valve housing, inner

2шт.

26

P545234

SEAL

O-RING - inner plug

2шт.

27

P3337424

PLUG

PLUNGER - valve, external thread half

1шт.

28

P3337423

PLUG

PLUNGER - valve, internal thread half

1шт.

29

P237405

PLUG

- housing

1шт.

30

P30491

O-RING

- plug

1шт.

31

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

(Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

4шт.

32

P1745337

BACK-UP RING

RING - retaining, small O-ring

4шт.

33

P1230443

O-RING

- large

1шт.

34

P1745338

BACK-UP RING

RING - retaining, large O-ring

1шт.

35

P3337441

PLUG

- valve, internal (Replaces plugs P3337423 and P3337424)

2шт.

36

P1245277

PLUG

INSERTS - plug

2шт.

37

P3143614

DISTRIBUTOR

VALVE ASSEMBLY - drive control, parts list Figure 8-130

1шт.

38

P2527736

STEM

BOLT - tie, valve mounting

3шт.

39

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10 (Replaces nut P34169)

3шт.
