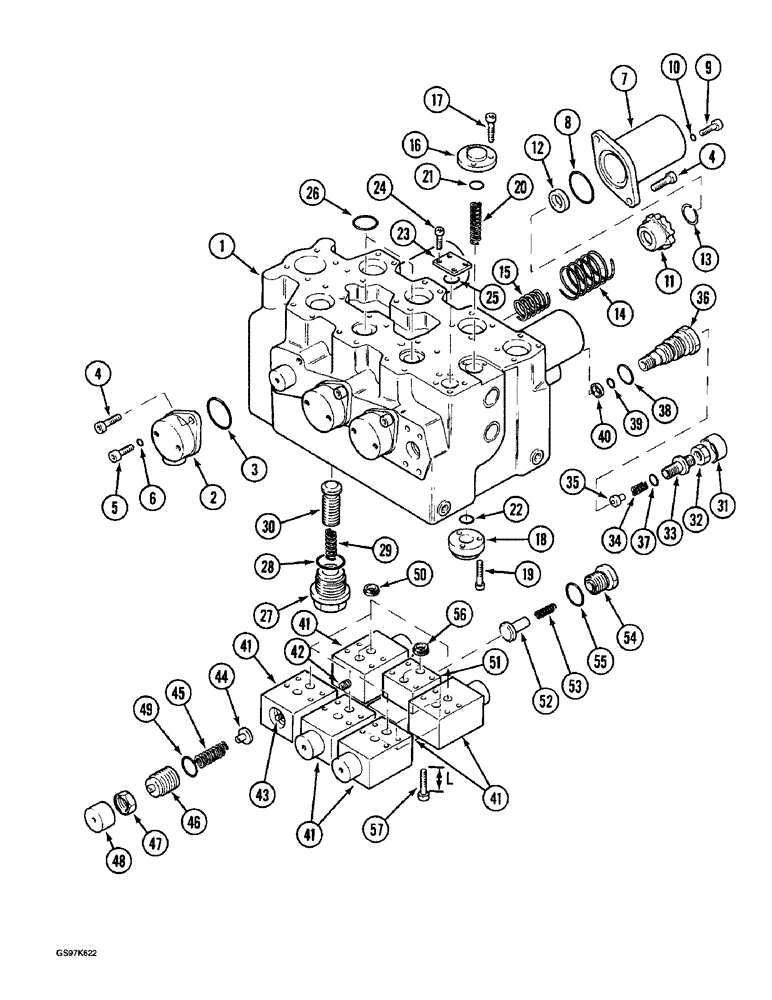

Запчасти Case 220B (8-122) - ATTACHMENT CONTROL VALVE, BOOM, ARM AND TOOL SECTIONS, P.I.N. 74441 THRU 74597, P.I.N. 03201 AND AFT (08) - HYDRAULICS

P2243644

BLOCK ASSY.

VALVE ASSEMBLY - control, boom and attachments, Includes: Ref. 1 - 56

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve, order valve assembly P2243644

1шт.

2

P1540482

CAP

- port end, section

3шт.

3

NSS

NOT SOLD SEPARAT

O-RING - port end cap, order kit P3749603

3шт.

4

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

BOLT - 8 mm x 20 mm, port end cap to valve body

12шт.

5

P1533023

SCREW

BOLT - port end cap

6шт.

6

NSS

NOT SOLD SEPARAT

O-RING - bolt, order kit P3749603

6шт.

7

P1540481

CAP

- closed end, section

3шт.

8

NSS

NOT SOLD SEPARAT

O-RING - closed end cap, order kit P3749603

3шт.

9

P1533023

SCREW

BOLT - closed end cap to valve body

6шт.

10

NSS

NOT SOLD SEPARAT

O-RING - bolt, order kit P3749603

6шт.

11

NSS

NOT SOLD SEPARAT

SEAT - spring, order valve assembly P2243644

3шт.

P1943675

SET OF PARTS

KIT - repair, section, Includes: Ref. 12 - 15

3шт.

12

NSS

NOT SOLD SEPARAT

SPACER - spool, order kit P1943675

1шт.

13

NSS

NOT SOLD SEPARAT

RING - snap, spool, spring retaining, order kit P1943675

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - large, outer, order kit P1943675

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING - small, inner, order kit P1943675

1шт.

16

NSS

NOT SOLD SEPARAT

COVER - round, valve body, upper, order valve assembly P2243644

1шт.

17

P1232939

BOLT

BOLT - 6 mm x 12 mm, upper round cover, order from Deutz

3шт.

18

NSS

NOT SOLD SEPARAT

FLANGE - pilot circuit port, valve body, lower, order valve assembly P2243644

6шт.

19

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

Port flange (Replaces bolt P32912) Hex Soc Hd, M6 x 25, 8.8

3шт.

20

NSS

NOT SOLD SEPARAT

SPRING - pilot circuit port, order valve assembly P2243644

1шт.

P3749602

KIT

- O-ring, pilot circuit port, order seal P1630431, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - round cover, upper, order kit P3749602

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - port flange, lower, order kit P3749602

1шт.

23

NSS

NOT SOLD SEPARAT

COVER - square, valve body, order kit P3749602

1шт.

24

P732958

SCREW

BOLT - 6 mm x 20 mm, square cover

4шт.

P3749604

KIT

- O-ring, boom and arm sections and square cover, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - square cover, order kit P3749604

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - boom and arm section ports, valve body, order kit P3749604

2шт.

P1943677

SET OF PARTS

KIT - relief plug assembly, section, Includes: Ref. 27 - 30

3шт.

27

NSS

NOT SOLD SEPARAT

PLUG - valve body, section, order kit P1943677

1шт.

28

P130412

O-RING

- plug

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - plug assembly, order kit P1943677

1шт.

30

NSS

NOT SOLD SEPARAT

POPPET - relief, order kit P1943677

1шт.

P1943674

VALVE,M28 x 1.5

ASSEMBLY - main relief, Includes: Ref. 31 - 40

1шт.

31

NSS

NOT SOLD SEPARAT

CAP - main relief valve, order valve assembly P1943674

1шт.

32

NSS

NOT SOLD SEPARAT

NUT - adjusting screw, order valve assembly P1943674

1шт.

33

NSS

NOT SOLD SEPARAT

SCREW - adjusting, main relief valve, order valve assembly P1943674

1шт.

34

P1538135

SPRING

- poppet

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET - main relief valve, order valve assembly P1943674

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - main relief valve, order valve assembly P1943674

1шт.

P3749601

KIT

- seal repair, main relief valve

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING - adjusting screw, order kit P3749601

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING - large, outer, order kit P3749601

1шт.

39

NSS

NOT SOLD SEPARAT

O-RING - small, inner, order kit P3749601

2шт.

40

NSS

NOT SOLD SEPARAT

RING - backup, small O-ring, order kit P3749601

1шт.

P4943356

SHIN

VALVE ASSEMBLY - circuit relief, control valve (Replaces valve assembly P1643305), Includes: Ref. 41 - 50

6шт.

41

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve, order valve assembly P4943356

1шт.

42

P1337497

PLUG

- body

1шт.

43

NSS

NOT SOLD SEPARAT

PLUNGER - circuit relief valve, order valve assembly P4943356

1шт.

44

P2527887

DEFLECTOR

POPPET - circuit relief valve

1шт.

45

P1338192

COMPRESSION SPRING

SPRING - circuit relief valve

1шт.

46

P3737413

PLUG

- adjusting (Replaces plug P1337450)

1шт.

47

P1334569

NUT

- adjusting plug

1шт.

48

NSS

NOT SOLD SEPARAT

CAP - circuit relief valve, order valve assembly P4943356

1шт.

P2249603

SEAL PACKAGE

KIT - seal repair, circuit relief valve

1шт.

49

NSS

NOT SOLD SEPARAT

O-RING - adjusting plug, order kit P2249603

1шт.

50

NSS

NOT SOLD SEPARAT

SEAL - body, order kit P2249603

2шт.

P1843383

SHIN

VALVE ASSEMBLY - load check, arm circuit, Includes: Ref. 51 - 56

1шт.

51

NSS

NOT SOLD SEPARAT

BODY - load check valve, order valve assembly P1843383

1шт.

52

NSS

NOT SOLD SEPARAT

POPPET - load check valve, order valve assembly P1843383

1шт.

53

P37929

SPRING

- load check valve

1шт.

54

NSS

NOT SOLD SEPARAT

PLUG - load check valve, order valve assembly P1843383

1шт.

P3749622

KIT

- seal repair, load check valve

1шт.

55

NSS

NOT SOLD SEPARAT

O-RING - plug, order kit P3749622

1шт.

56

NSS

NOT SOLD SEPARAT

SEAL - body, order kit P3749622

2шт.

57

P732994

SCREW

BOLT - hex socket, 10 mm x 50 mm, L dimension is 50 mm, used for mounting circuit relief valve, Serial Range: body-valve

20шт.

57

P1232981

SCREW

BOLT - hex socket, 10 mm x 90 mm, L dimension is 90 mm, used for mounting circuit relief valve and load check valve, Serial Range: body-valve

4шт.
