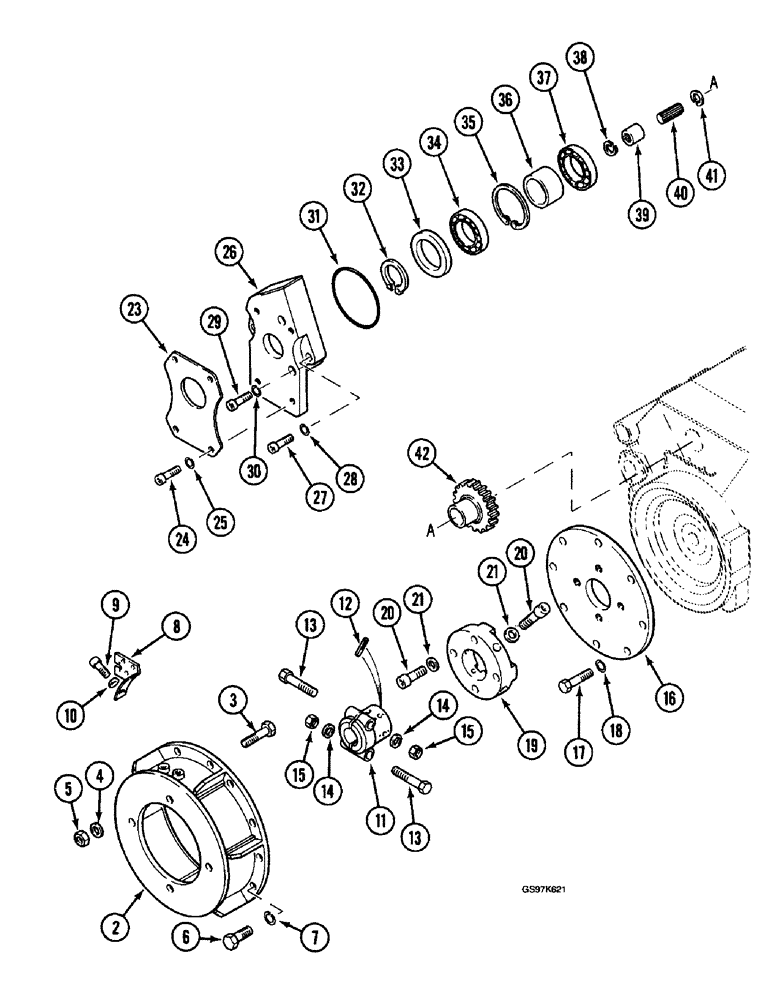

Запчасти Case 220B (8-120) - HYDRAULIC PUMP TO ENGINE COUPLINGS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

1

P3443516

PUMP

ASSEMBLY - high pressure, parts list Figure 8-116, not shown

1шт.

2

P4330130

MOUNT - high pressure hydraulic pump, no longer available

1шт.

3

P33866

SCREW

BOLT -, Serial Range: pump-mount

4шт.

4

P35050

WASHER

SPACER - pump mounting

4шт.

5

832-10420

NUT,M20 x 2.5, Cl 8

NUT, LOCK, , Pump mounting bolt (Replaces nut P134564) M20 x 2.5, Cl 8

4шт.

6

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- pump mount to engine, hex, full threads, 10 - 1.5 x 35 mm

12шт.

7

P34711E

LOCK WASHER,M10

SPACER - bolt, pump mount to engine

12шт.

8

P228239

STOP LOCK

BRACKET - engine throttle cable, on pump mount, no longer available

1шт.

9

P532988

SCREW

BOLT -, Serial Range: bracket-mount

2шт.

10

P3528795

WASHER

SPACER - bolt

2шт.

11

P2246252

COUPLING - pump drive, at pump, no longer available

1шт.

12

P435716

SPLIT PIN/SAFETY PIN

ROLL PIN - pump drive coupling

8шт.

13

814-14150

BOLT,Hex, M14 x 2 x 150mm, Cl 8.8

pump drive coupling (Replaces bolt P133840) Hex, M14 x 150, 8.8

2шт.

14

P34614

WASHER

SPACER - coupling bolt

2шт.

15

P134549

SAFETY NUT

NUT - hex, coupling bolt

2шт.

16

P3330111

PLATE, THRUST

ADAPTER - coupling mounting, at engine

1шт.

17

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Adapter to engine Hex, M12 x 35, 8.8, Full Thd

8шт.

18

P34713

WASHER

SPACER - adapter bolt

8шт.

19

P1241450

FLEXIBLE COUPLING

COUPLING - flexible, to engine adapter

1шт.

20

P1232932

SCREW

BOLT - flexible coupling

8шт.

21

P1545482

WASHER

SPACER - coupling bolt

8шт.

22

P943578

PUMP

ASSEMBLY - hydraulic cooling circuit, parts list Figure 8-118, not shown

1шт.

23

P1446060

PAPER SEAL

GASKET - cooling pump mounting flange

1шт.

24

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Cooling pump to mount Hex Soc Hd, M10 x 35, 10.9

4шт.

25

P34711E

LOCK WASHER,M10

SPACER - pump mounting bolt

4шт.

26

P1646188

SHIN

MOUNT - hydraulic cooling pump

1шт.

27

L632924

SCREW

BOLT -, Serial Range: mount-engine

3шт.

28

P34711E

LOCK WASHER,M10

SPACER - bolt, mount to engine

3шт.

29

P1232959

SCREW

BOLT -, Serial Range: mounting-engine

1шт.

30

P34709C

LOCK WASHER,M8

SPACER - bolt, mount to engine

1шт.

31

P30469

O-RING

SEAL - pump mount

1шт.

32

800-1140

SNAP RING,M40, Ext

Gear at engine (Replaces ring P36332) M40, Ext

1шт.

33

P1828995

WASHER

SPACER - roller bearing to pump mount

1шт.

34

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

BEARING - roller, pump mount (Replaces bearing P39642)

1шт.

35

800-2180

SNAP RING,M80, Int

Bearing retaining (Replaces ring P36249) M80, Int

1шт.

36

P3228709

SPACER

- gear

1шт.

37

P1139822

BEARING

- roller, gear

1шт.

38

P436204

RING, SNAP

RING - snap, coupling sleeve

1шт.

39

P2329128

DEUTZ PART

SLEEVE - coupling, order from Deutz

1шт.

40

P1727732

DEUTZ PART

COUPLING - splined, order from Deutz

1шт.

41

P536207

RING, SNAP

RING - snap, splined coupling

1шт.

42

P2139398

DEUTZ PART

GEAR - cooling pump drive, at engine, order from Deutz

1шт.
