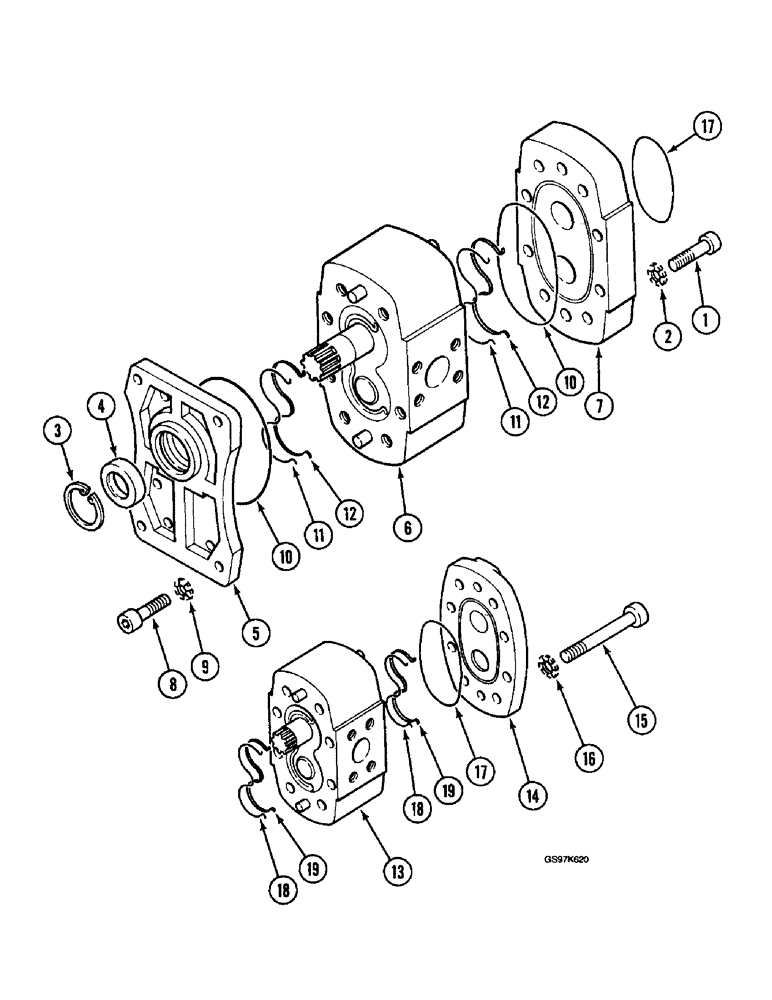

Запчасти Case 220B (8-118) - HYDRAULIC PUMP FOR COOLING CIRCUIT, LOW PRESSURE, P.I.N. 74441 THRU 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

P943578

PUMP

ASSEMBLY - cooling circuit, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - pump assembly mounting, shaft end cover

4шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock, pump assembly mounting, shaft end cover

4шт.

3

P36225

DEUTZ PART

RING - snap, seal retaining, order from Deutz

1шт.

4

P6146083

BUSHING

SEAL - shaft

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - pump, shaft end

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - gear and shaft, shaft end

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - pump, center

1шт.

8

NSS

NOT SOLD SEPARAT

BOLT - shaft end cover and gear housing to center body

8шт.

9

NSS

NOT SOLD SEPARAT

WASHER - lock, shaft end cover and gear housing to center body

8шт.

P3749686

KIT

- seal repair, shaft end, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - shaft end cover and center body to gear housing

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - gear housing

2шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - housing seal

2шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - gear, closed end

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - pump, closed end

1шт.

15

NSS

NOT SOLD SEPARAT

BOLT - closed end cover and gear housing to center body

8шт.

16

NSS

NOT SOLD SEPARAT

WASHER - lock, closed end cover and gear housing to center body

8шт.

P3749687

KIT

- seal repair, closed end, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - closed end cover and center body to gear housing

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - gear housing

2шт.

19

NSS

NOT SOLD SEPARAT

RETAINER - housing seal

2шт.
