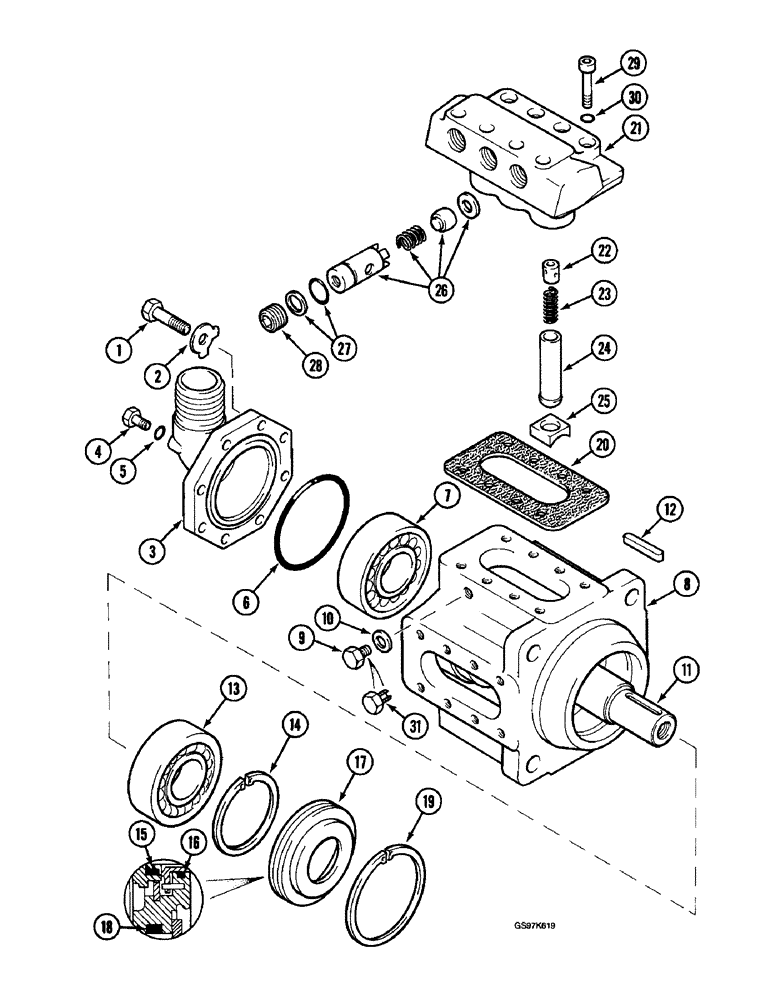

Запчасти Case 220B (8-116) - HYDRAULIC PUMP, HIGH PRESSURE, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

P3443516

PUMP

ASSEMBLY - high pressure, Includes: Ref. 2 - 31

1шт.

1

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Suction Flange (Replaces bolt P33827) Hex, M10 x 25, 8.8, Full Thd

8шт.

2

P23691

BRAKE

WASHER - special, locking

8шт.

3

P937021

FLANGE

- suction

1шт.

4

P1637401

PLUG

- suction flange

1шт.

5

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

6

P30366

O-RING

- suction flange

1шт.

7

P2339814

BEARING

- roller, pump, suction flange end

1шт.

8

P744346

HOUSING - pump, no longer available

1шт.

9

P3533006

SCREW

PLUG ASSEMBLY - housing, if used (Replaces plug P30892)

2шт.

P2230426

SEAL

O-RING - plug

1шт.

10

P45251

COMPOSITE SEAL

SEAL - plug, if used

2шт.

11

P7146260

CRANKSHAFT

SHAFT - pump

1шт.

12

P36198

BUCKET TOOTH KEY

KEY - shaft

1шт.

13

P2339833

BEARING

- roller, pump shaft

1шт.

P944396

GASKET

KIT - shaft and bearing seal, Includes: Ref. 14 - 19

1шт.

14

933078R1

SNAP RING,M110, Int

RING - snap, retainer, small (Replaces ring P36258)

1шт.

15

P30338

O-RING

- seal retainer, outer

1шт.

16

P1830429

O-RING

- seal retainer, outer (Replaces O-ring P1830411)

1шт.

17

NSS

NOT SOLD SEPARAT

RETAINER - seal, order kit P944396

1шт.

18

P30361

O-RING

- seal retainer, inner

1шт.

19

P536233

CIRCLIP

RING - snap, retainer, large

1шт.

20

P9646046

SEAL

GASKET - cylinder head (Replaces gasket P1446050)

4шт.

P1144324

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, pump pistons, Includes: Ref. 21 - 31

4шт.

21

NSS

NOT SOLD SEPARAT

HEAD - cylinder, pump pistons, order head assembly P1144324

1шт.

P3537791

PISTON

ASSEMBLY - cylinder head, Includes: Ref. 22 - 25

3шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - piston, order piston assembly P3537791

1шт.

23

P1038151

COMPRESSION SPRING

SPRING - piston

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - pump, order piston assembly P3537791

1шт.

25

P2628972

SKID/SHOE

SEAT - piston

1шт.

P1743377

VALVE

ASSEMBLY - discharge, piston, Includes: Ref. 26 - 28

3шт.

26

NSS

NOT SOLD SEPARAT

POPPET - valve, order valve assembly P1743377

1шт.

27

P3446071

GASKET KIT

KIT - seal, includes (1) O-ring and (1) backup ring

1шт.

28

P1037447

PLUG

- cylinder head

3шт.

29

P532965

SCREW

BOLT - cylinder head mounting

32шт.

30

P34713

WASHER

- mounting bolt

32шт.

31

P3533006

SCREW

PLUG ASSEMBLY - housing, if used

2шт.

P2230426

SEAL

O-RING - plug

1шт.
