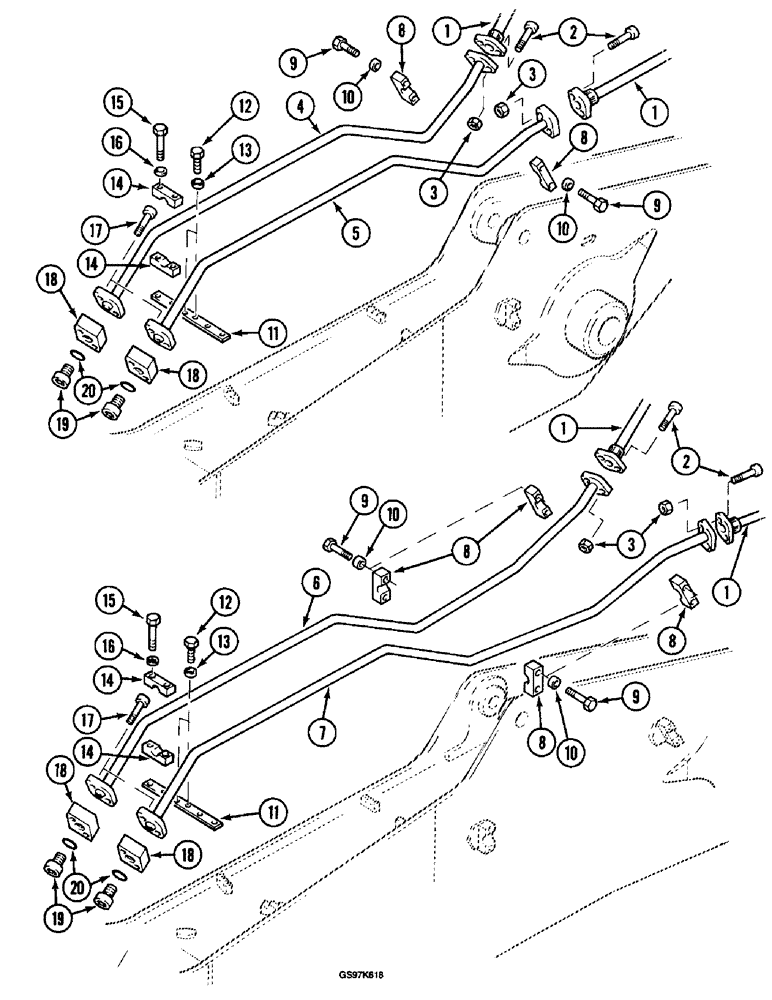

Запчасти Case 220B (8-114) - HYDRAULIC CIRCUIT FOR OPTIONS, TUBES AT ARM, P.I.N. 74441 THRU 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from tubes at boom, 1250 mm (49-1/4 inch) long, see Figure 8-112

2шт.

2

L632924

SCREW

BOLT - hex socket, 10 mm x 55 mm, class 10.9

4шт.

3

825-1408

NUT,M8, Cl 8

- hex, 10 mm, class 10

4шт.

4

P6549124

PIPE

TUBE - options, right-hand side of arm, used with 3.0 m arm

1шт.

5

P6549125

PIPE

TUBE - options, left-hand side of arm, used with 3.0 m arm

1шт.

6

P6549122

PIPE

TUBE - options, right-hand side of arm, used with 3.8 m arm

1шт.

7

P6549123

PIPE

TUBE - options, left-hand side of arm, used with 3.8 m arm

1шт.

8

P520303

SHIN

CLAMP - options tube, two used with 3.0 m arm, four used with 3.8 m arm

2-4шт.

9

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8), plated

4-8шт.

10

P4328797

WASHER

SPACER - clamp bolt, 8 mm thick

4-8шт.

11

P4223344

SUPPORT

BRACKET - tube clamp

1шт.

12

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

13

P4328797

WASHER

SPACER - bracket bolt, 8 mm thick

2шт.

14

P520303

SHIN

CLAMP - options tube

4шт.

15

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

- hex, 12 - 1.75 x 90 mm (Replaces bolt P33844)

4шт.

16

P4328797

WASHER

SPACER - clamp bolt, 8 mm thick

4шт.

17

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

18

P1037302

RESTRICTOR

PLATE - cover, tube flange

2шт.

19

P737470

PLUG

- cover plate

2шт.

20

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Plug (Replaces O-ring D63414) -117, 90 Duro, .799" ID x .103" Thk

2шт.
