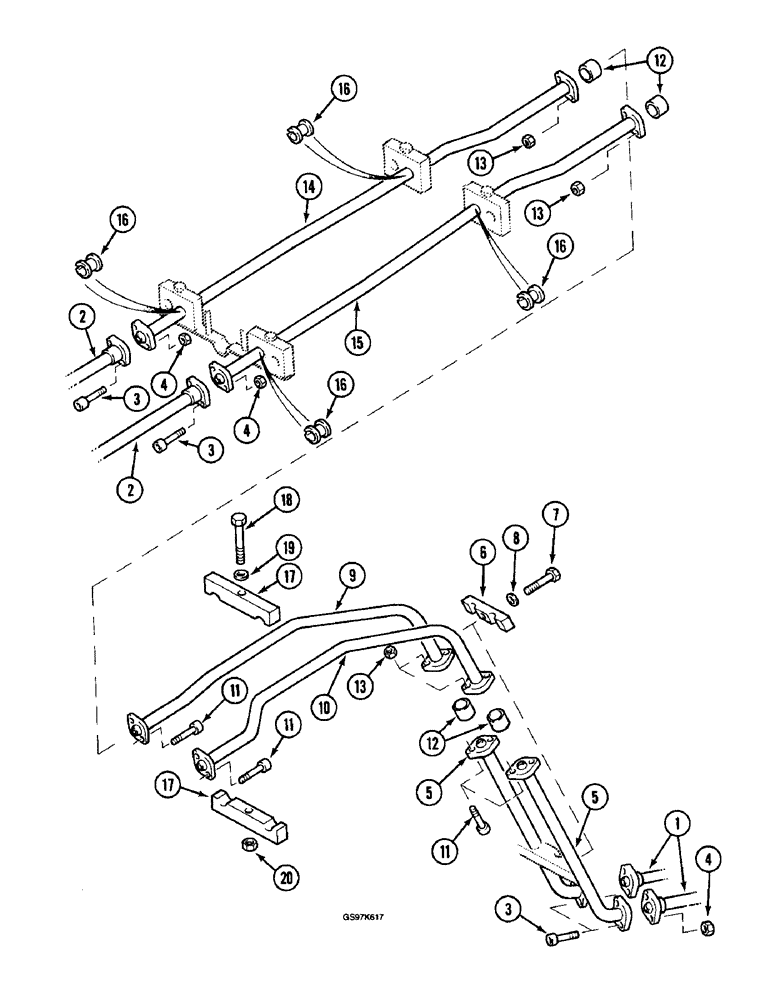

Запчасти Case 220B (8-112) - HYDRAULIC CIRCUIT FOR OPTIONS, TUBES AT BOOM, P.I.N. 74441 THRU 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

1

P1031918

HOSE

- from options control valve, 1600 mm (63 inch) long

2шт.

2

P1031905

HOSE

- to tubes on arm, 1250 mm (49-1/4 inch) long

2шт.

3

L632924

SCREW

BOLT - hex socket, 10 mm x 55 mm, class 10.9

8шт.

4

825-1408

NUT,M8, Cl 8

- hex, 10 mm, class 10

8шт.

5

P6047165

PIPE

TUBE - at boom, lower section

2шт.

6

P520304

SHIN

CLAMP -, Serial Range: tubes-boom

2шт.

7

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

replaces bolt P33875 Hex, M16 x 70, 8.8

2шт.

8

P4328746

WASHER

SPACER - bolt, 11 mm thick

2шт.

9

P5549119

PIPE

TUBE - at boom, right-hand side, center section

1шт.

10

P5549118

PIPE

TUBE - at boom, left-hand side, center section

1шт.

11

P1232979

SCREW

BOLT - hex socket, 10 mm x 80 mm, class 10.9

8шт.

12

P1737758

JUNCTION

ADAPTER - tube flange

4шт.

13

825-1408

NUT,M8, Cl 8

- hex, 10 mm, class 10

8шт.

14

P6549127

PIPE

TUBE - at boom, right-hand side, upper section

1шт.

15

P6549126

PIPE

TUBE - at boom, left-hand side, upper section

1шт.

16

P2228809

BUSHING

INSULATOR - tube clamp

4шт.

17

P2320325

SHIN

CLAMP - tube, center section

2шт.

18

814-14100

BOLT,Hex, M14 x 2 x 100mm, Cl 8.8

(Replaces bolt P33897) Hex, M14 x 100, 8.8

1шт.

19

P4328798

WASHER

SPACER - bolt, 10 mm thick

1шт.

20

P34168

NUT

- hex, 14 mm

1шт.
