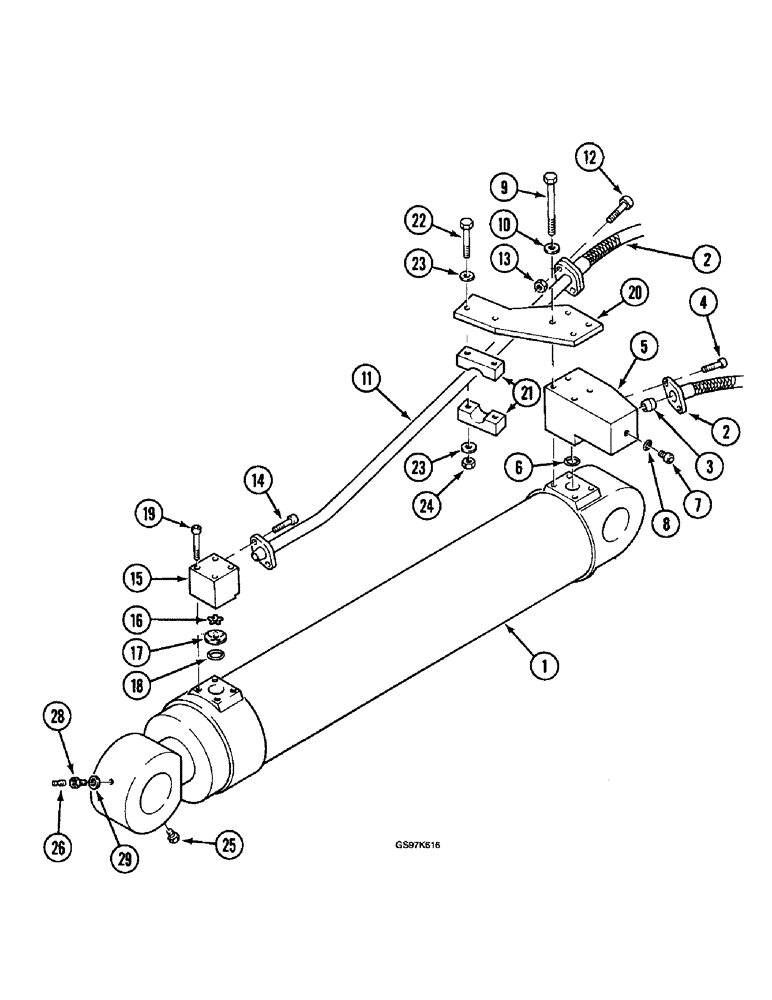

Запчасти Case 220B (8-110) - TOOL CYLINDER CIRCUIT, TUBE, FITTINGS AND CLAMPS, P.I.N. 74441 THRU 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - tool, parts list Figure 8-202 or 8-204

1шт.

2

P731983

HOSE

- to tool cylinder, used with 3.0 m arm, 1800 mm (70-7/8 inch) long

2шт.

2

P731982

HOSE

- to tool cylinder, used with 3.8 m arm, 2400 mm (94-1/2 inch) long

2шт.

3

P1528830

JUNCTION

ADAPTER - hose flange to cylinder fitting, closed end

1шт.

4

P532924

SCREW

BOLT - hose flange to cylinder fitting, closed end

2шт.

5

P1237208

SHIN

FITTING - cylinder, special, closed end

1шт.

6

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- fitting

1шт.

7

P1037449

PLUG

- fitting

1шт.

8

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- plug, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

1шт.

9

P933805

SCREW

BOLT - fitting and bracket to cylinder, closed end

4шт.

10

P4328746

WASHER

- flat

4шт.

11

P8147615

PIPE

TUBE - to rod end of cylinder

1шт.

12

P1232975

SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9

BOLT - hose flange to tube flange

2шт.

13

829-1414

NUT,M14, Cl 10

- flange bolt, hex, 14 - 2.0, class 10 (Replaces nut P134107)

2шт.

14

P532924

SCREW

BOLT - tube, Serial Range: flange-block

2шт.

15

P3837706

SHIN

BLOCK - tube, rod end of cylinder

1шт.

16

P1537715

VALVE POPPET

RESTRICTOR - block

1шт.

17

P3030161

STOP

GUIDE - restrictor

1шт.

18

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- block

1шт.

19

864-16100

HEX SOC SCREW,M16 x 100mm, Cl 8.8

Tube block to cylinder, Rod end Hex Soc Hd, M16 x 100, 8.8

4шт.

20

P4924225

SUPPORT

BRACKET - clamp mounting, tube support

1шт.

21

P2020353

SHIN

CLAMP - rod end tube

2шт.

22

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

Clamps to bracket (Replaces bolt P233826) Hex, M14 x 140, 8.8

2шт.

23

P3528792

WASHER

- flat

4шт.

24

P34168

NUT

- bolt, clamp retaining

2шт.

25

P1437456

PLUG

ASSEMBLY - cylinder

2шт.

P945295

SEAL

- plug

1шт.

26

P45202

WASHER, SEALING

SEAL - adapter

2шт.

27

J45801

LUBE NIPPLE,M8 x 1.25

straight, cylinder M8 x 1.25

2шт.

28

P837590

END FITTING

ADAPTER - grease fitting

2шт.

29

P45202

WASHER, SEALING

SEAL - adapter

2шт.
