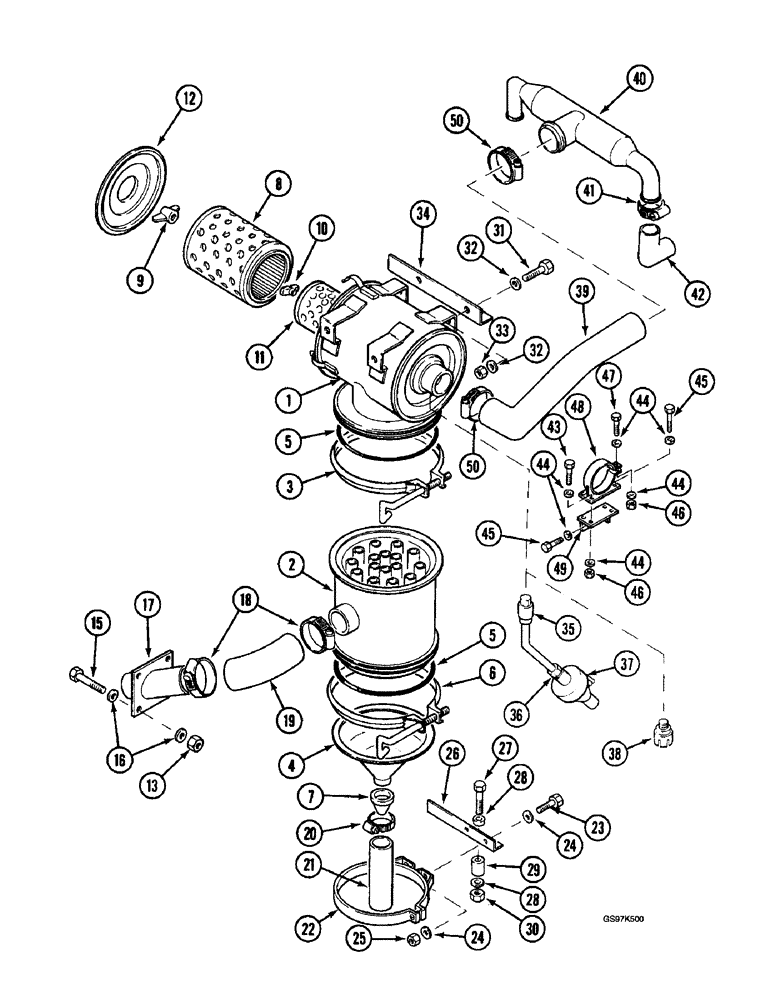

Запчасти Case 220B (2-05) - AIR CLEANER AND AIR INTAKE PARTS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (02) - ENGINE

P850578

AIR CLEANER

CLEANER ASSEMBLY - air, complete, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner, order cleaner assembly P850578

1шт.

2

P850580

BODY

- precleaner

1шт.

3

P1036985

CLAMP

- air cleaner to pre, Serial Range: cleaner-precleaner

1шт.

4

P850581

CUP

- dust, precleaner

1шт.

5

P1446009

SEAL

- precleaner to dust cup and air cleaner body

2шт.

6

P1036986

CLAMP

- dust, Serial Range: cup-precleaner

1шт.

7

P850521

VALVE POPPET

VALVE - dust, rubber

1шт.

8

P850568

CARTRIDGE

ELEMENT - primary, outer

1шт.

9

P34405

THUMB SCREW

NUT - wing, Serial Range: element-body

1шт.

10

P2141610

INDICATOR

NUT - wing, safety indicator, secondary, Serial Range: element-body

1шт.

11

P850569

CARTRIDGE

ELEMENT - secondary, inner

1шт.

12

P740486

COVER

- end, air cleaner

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.

15

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- air intake pipe, hex, full threads, 10 - 1.5 x 35 mm

4шт.

16

P3528795

WASHER

SPACER - air intake bolt

8шт.

17

P3127142

PIPE - air intake, no longer available

1шт.

18

P1236992

COLLAR CLAMP

CLAMP - air intake hose

2шт.

19

P3231907

LARGE HOSE

HOSE - air intake to air cleaner

1шт.

20

P136901

CLAMP

- dust, Serial Range: valve-tube

1шт.

21

REF

INSTRUCTION

TUBE - dust valve exhaust, 330 mm (13 inch) long, cut from bulk tubing P103673 below

1шт.

22

P1436913

MOUNTING CLIP

CLAMP - precleaner, includes bolt and nut

1шт.

23

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- precleaner bracket, hex, full threads, 10 - 1.5 x 35 mm

2шт.

24

P3528795

WASHER

SPACER - precleaner bracket bolt

4шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , (Replaces nut P34598) M10 x 1.5, Cl 8

2шт.

26

P2525617

ANGLE BAR

BRACKET - support, precleaner, no longer available, Serial Range: 74441-74597

1шт.

26

P2525617

ANGLE BAR

BRACKET - support, precleaner, no longer available, Serial Range: 03201-03213

1шт.

27

P532617

SCREW

BOLT - bracket to framer, Serial Range: 74441-74597

4шт.

27

P532617

SCREW

BOLT - bracket to framer, Serial Range: 03201-03213

4шт.

28

P3528792

WASHER

SPACER - bracket bolt, thinner, Serial Range: 74441-74597

8шт.

28

P3528792

WASHER

SPACER - bracket bolt, thinner, Serial Range: 03201-03213

8шт.

29

P3528798

WASHER

SPACER - bracket bolt, thicker, Serial Range: 74441-74597

4шт.

29

P3528798

WASHER

SPACER - bracket bolt, thicker, Serial Range: 03201-03213

4шт.

30

P134549

SAFETY NUT

NUT - hex, bracket bolt, Serial Range: 74441-74597

4шт.

30

P134549

SAFETY NUT

NUT - hex, bracket bolt, Serial Range: 03201-03213

4шт.

31

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm, air cleaner body and clamp, (Replaces bolt P933818), Serial Range: 74441-74597

2шт.

31

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm, air cleaner body and clamp, (Replaces bolt P933818), Serial Range: 03201-03213

2шт.

32

P3528795

WASHER

SPACER - air cleaner bracket bolt, Serial Range: 74441-74597

4шт.

32

P3528795

WASHER

SPACER - air cleaner bracket bolt, Serial Range: 03201-03213

4шт.

33

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Bracket bolt (Replaces nut P34598) M10 x 1.5, Cl 8, Serial Range: 74441-74597

2шт.

33

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Bracket bolt (Replaces nut P34598) M10 x 1.5, Cl 8, Serial Range: 03201-03213

2шт.

34

P2525616

ANGLE BAR

BRACKET - support, air cleaner, no longer available, Serial Range: 74441-74597

1шт.

34

P2525616

ANGLE BAR

BRACKET - support, air cleaner, no longer available, Serial Range: 03201-03213

1шт.

P103673

PIPE

TUBE - bulk, sold by the meter

1шт.

35

P2949250

PIPE

TUBE - air restriction indicator, used with sender P641617, Ref. 37

1шт.

36

P28424

COMPOSITE SEAL

GASKET - indicator to tube, used with sender P641617, Ref. 37

1шт.

37

P641617

INDICATOR

SENDER - air restriction indicator, if used

1шт.

38

1983640C1

RESTRICTION SWITCH

SWITCH - air restriction indicator, if used (Replaces sender P5837749)

1шт.

39

P3731948

LARGE HOSE

HOSE - air, Serial Range: cleaner-engine

1шт.

40

P150161

CONDUIT

TUBE - air, Serial Range: cleaner-engine

1шт.

41

P136901

CLAMP

- hose to engine and tube

4шт.

42

P1031974

LARGE HOSE

HOSE - air cleaner, at engine

2шт.

43

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

2шт.

44

P3528794

WASHER

SPACER - tube support bolt

9шт.

45

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

Mounting Bracket, Tube Support Hex, M8 x 1.25 x 22

3шт.

46

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, , Bracket and Clamp Bolt (Replaces nut P134596) M8 x 1.25, Cl 8

3шт.

47

P233830

SCREW

BOLT - tube support bracket clamp

1шт.

48

P1436911

MOUNTING CLIP

BRACKET - intake tube

1шт.

49

P5028122

SUPPORT

BRACKET - intake tube support

1шт.

50

P1236992

COLLAR CLAMP

CLAMP - hose air, Serial Range: cleaner-tube

2шт.
