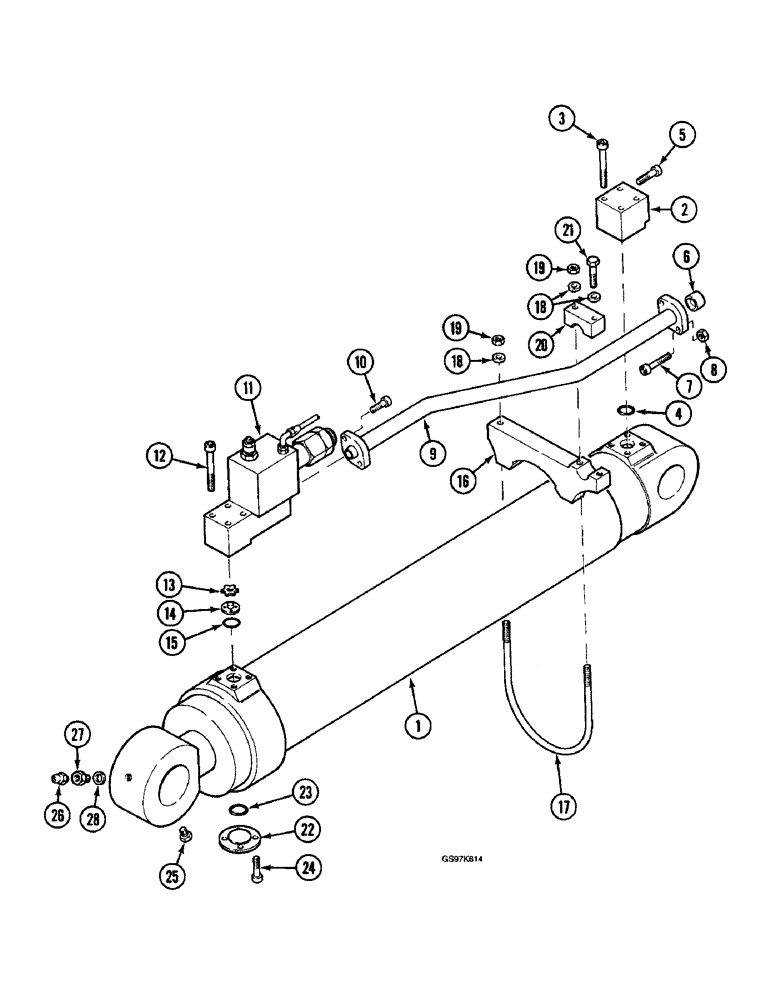

Запчасти Case 220B (8-106) - ARM CYLINDER CIRCUIT, TUBE, FITTINGS AND CLAMPS, UNITS WITH OPTIONAL CRANING VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, see Figures 8-196 - 8-200 for correct valve

1шт.

2

P3237797

SHIN

BLOCK - hose, closed end of arm cylinder

1шт.

3

864-16100

HEX SOC SCREW,M16 x 100mm, Cl 8.8

Hose block to cylinder Hex Soc Hd, M16 x 100, 8.8

4шт.

4

P2030483

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- hose block (Replaces O-ring P330402

1шт.

5

P532924

SCREW

BOLT - hose, Serial Range: flange-block

2шт.

6

P1737760

JUNCTION

ADAPTER - hose flange to rod end tube, no longer available

1шт.

7

P532927

SCREW

BOLT - hose flange to tube flange

2шт.

8

829-1414

NUT,M14, Cl 10

- flange bolt, hex, 14 - 2.0, class 10 (Replaces nut P134107)

2шт.

9

P7347669

PIPE

TUBE - to rod end of cylinder

1шт.

10

P532924

SCREW

BOLT - tube, Serial Range: flange-block

2шт.

11

P3143369

SHIN

VALVE ASSEMBLY - craning, arm cylinder, parts list Figures 8-174 and 8-176

1шт.

12

864-16100

HEX SOC SCREW,M16 x 100mm, Cl 8.8

Valve to cylinder Hex Soc Hd, M16 x 100, 8.8

4шт.

13

P2737730

VALVE POPPET

RESTRICTOR - tube block

1шт.

14

P3030177

STOP

GUIDE - restrictor

1шт.

15

P2030483

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- valve block (Replaces O-ring P330402)

1шт.

16

P724080

SUPPORT

BRACKET - tube support and clamp mounting

1шт.

17

P1830777

STIRRUP

U-BOLT - bracket

1шт.

18

P4328747

WASHER

SPACER - U-bolt and clamp bolt

3шт.

19

825-1420

NUT,M20, Cl 8

Hex - U-bolt (Replaces P34171) M20, Cl 8

2шт.

20

P920352

SHIN

CLAMP - rod end, Serial Range: tube-bracket

1шт.

21

814-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

- clamp, hex, 20 - 2.5 x 100 mm (Replaces bolt P133835)

1шт.

22

P3930110

WASHER

COVER - cylinder access

1шт.

23

P2030483

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- access cover (Replaces O-ring P330402)

1шт.

24

P1332915

SCREW

BOLT - hex socket, access cover

4шт.

25

P1437456

PLUG

ASSEMBLY - cylinder

1шт.

P945295

SEAL

- plug

1шт.

26

J45801

LUBE NIPPLE,M8 x 1.25

straight, cylinder M8 x 1.25

1шт.

27

P837590

END FITTING

ADAPTER - grease fitting

1шт.

28

P45202

WASHER, SEALING

SEAL - adapter

1шт.
