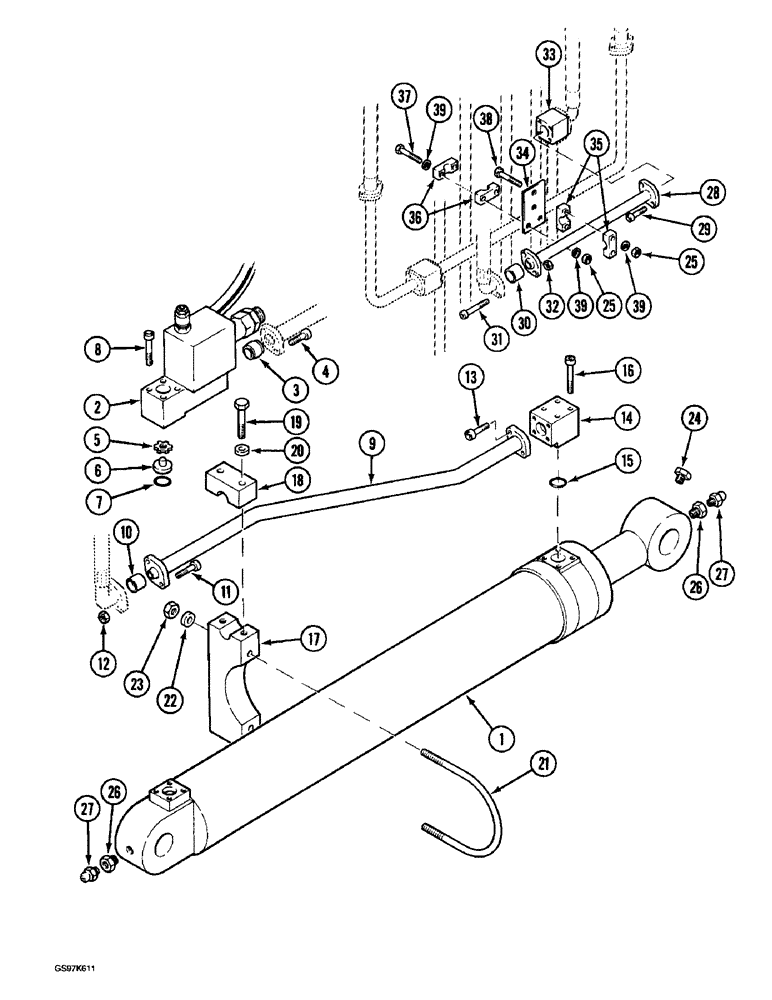

Запчасти Case 220B (8-100) - BOOM CYLINDER CIRCUIT, TUBE, FITTINGS AND CLAMPS, UNITS WITH OPTIONAL CRANING VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, parts list Figure 8-192 or 8-194

2шт.

2

P3143370

SHIN

VALVE ASSEMBLY - craning, boom cylinder, parts list Figures 8-170 and 8-172

2шт.

3

P1528829

JUNCTION

ADAPTER - tube, Serial Range: flange-valve

2шт.

4

P532914

SCREW

BOLT - hex socket, 12 mm x 45 mm, class 10.9

4шт.

5

P2537777

VALVE POPPET

RESTRICTOR - hose block

2шт.

6

P3030161

STOP

GUIDE - restrictor

2шт.

7

P130412

O-RING

- valve block

2шт.

8

P1232977

SCREW

BOLT - hex socket, 16 mm x 90 mm, class 10.9

8шт.

9

P3647662

PIPE

TUBE - to rod end of boom cylinder

2шт.

10

P1737759

JUNCTION

ADAPTER - tube to hose flange

2шт.

11

P532930

SCREW

BOLT - hex socket, 12 mm x 100 mm, class 10.9

4шт.

12

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

13

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

4шт.

14

P3237794

SHIN

BLOCK - tube, rod end of boom cylinder

2шт.

15

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- tube block

2шт.

16

864-16100

HEX SOC SCREW,M16 x 100mm, Cl 8.8

(Replaces bolt P32959) Hex Soc Hd, M16 x 100, 8.8

8шт.

17

P1624245

SHIN

BRACKET - rod end tube clamp

2шт.

18

P520306

SHIN

CLAMP - rod end tube

2шт.

19

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

replaces bolt P33875 Hex, M16 x 70, 8.8

4шт.

20

P4328746

WASHER

SPACER - bolt, 11 mm thick

4шт.

21

P1330631

STIRRUP

U-BOLT - bracket

2шт.

22

P4328797

WASHER

SPACER - U-bolt, 8 mm thick

4шт.

23

825-1112

NUT,M12, Cl 8

- hex, 12 mm - 1.75 (Replaces nut P34167)

4шт.

24

P1437456

PLUG

ASSEMBLY - cylinder

2шт.

P945295

SEAL

- plug

1шт.

25

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10 (Replaces nut P34169)

4шт.

26

P837590

END FITTING

ADAPTER - grease fitting

4шт.

27

J45801

LUBE NIPPLE,M8 x 1.25

straight, cylinder M8 x 1.25

4шт.

28

P3637694

PIPE

TUBE - manifold block to hose, boom cylinder closed end

1шт.

29

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

30

P1737759

JUNCTION

ADAPTER - tube to hose flange

1шт.

31

P532930

SCREW

BOLT - hex socket, 12 mm x 100 mm, class 10.9

2шт.

32

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

33

REF

INSTRUCTION

BLOCK - manifold, see Figures 8-94 and 8-96 for tubes and hose to boom cylinders

1шт.

34

P3923386

LARGE PLATE

PLATE - mounting, clamps

1шт.

35

P520306

SHIN

CLAMP - tube, upper

2шт.

36

P820304

SHIN

CLAMP - tube, lower

2шт.

37

P1133829

SCREW

BOLT - hex, 16 mm x 140 mm

2шт.

38

P433826

SCREW

BOLT - hex, 16 mm x 130 mm

2шт.

39

P4328746

WASHER

SPACER - bolt

6шт.
