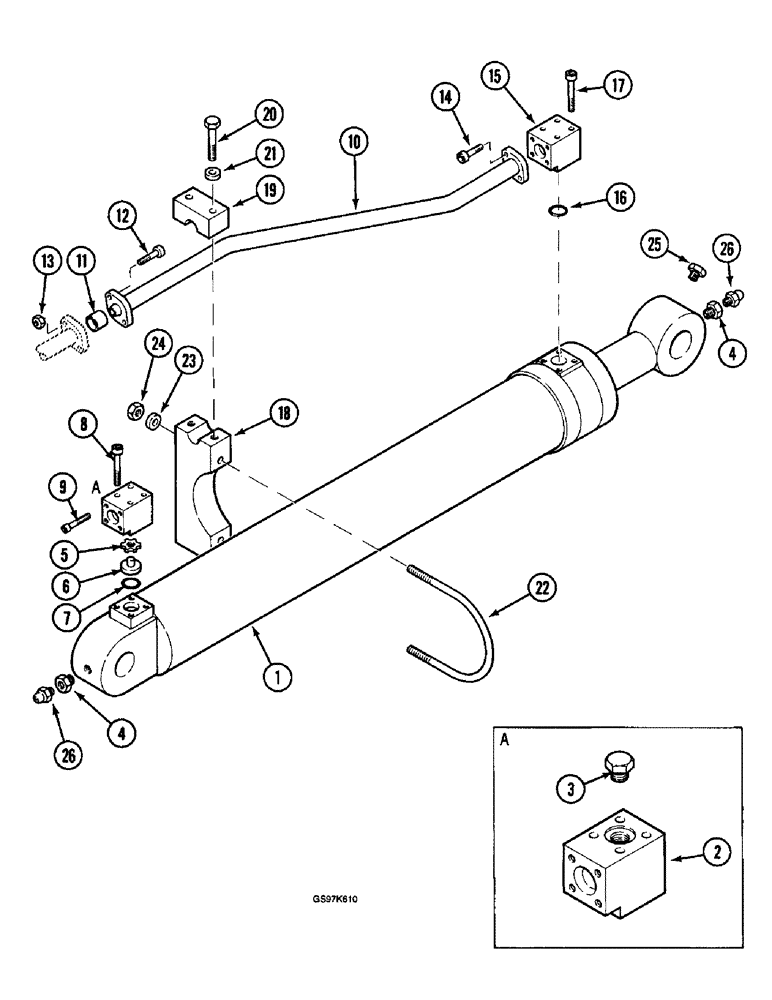

Запчасти Case 220B (8-098) - BOOM CYLINDER CIRCUIT, TUBE, FITTINGS AND CLAMPS, UNITS WITHOUT OPTIONAL CRANING VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CYLINDER ASSEMBLY - boom, parts list Figure 8-192 or 8-194
2шт.
2
P3837798
SHIN
BLOCK - hose, closed end of boom cylinder
2шт.
3
P1437455
PLUG
ASSEMBLY - hose block
2шт.
P7046042
SEAL
- plug
1шт.
4
P837590
END FITTING
ADAPTER - grease fitting
4шт.
5
P2537777
VALVE POPPET
RESTRICTOR - hose block
2шт.
6
P3030161
STOP
GUIDE - restrictor
2шт.
7
P930470
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
- hose block
2шт.
8
864-16100
HEX SOC SCREW,M16 x 100mm, Cl 8.8
Hose block to cylinder Hex Soc Hd, M16 x 100, 8.8
8шт.
9
J532918
SCREW,Hex Skt, M12 x 40mm, Cl 10.9
Hose flange to hose block Hex Skt Hd, M12 x 40, 10.9
4шт.
10
P3647662
PIPE
TUBE - to rod end of boom cylinder
2шт.
11
P1737759
JUNCTION
ADAPTER - tube to hose flange
2шт.
12
P532930
SCREW
BOLT - hose flange to tube flange
4шт.
13
829-1412
NUT,M12, Cl 10.9
- flange bolt, hex, 12 mm - 1.75, class 10
4шт.
14
J532918
SCREW,Hex Skt, M12 x 40mm, Cl 10.9
Tube flange to block, rod end Hex Skt Hd, M12 x 40, 10.9
4шт.
15
P3237794
SHIN
BLOCK - tube, rod end of boom cylinder
2шт.
16
P930470
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
- tube block
2шт.
17
864-16100
HEX SOC SCREW,M16 x 100mm, Cl 8.8
Tube block to cylinder Hex Soc Hd, M16 x 100, 8.8
8шт.
18
P1624245
SHIN
BRACKET - rod end tube clamp
2шт.
19
P520306
SHIN
CLAMP - rod end tube
2шт.
20
814-16070
BOLT,Hex, M16 x 2 x 70mm, Cl 8.8
clamp to bracket, replaces bolt P33875 Hex, M16 x 70, 8.8
4шт.
21
P4328746
WASHER
- flat, clamp bolt
4шт.
22
P1330631
STIRRUP
U-BOLT - bracket
2шт.
23
P4328797
WASHER
- flat, U-bolt
4шт.
24
825-1112
NUT,M12, Cl 8
- U-bolt, hex, 12 mm - 1.75 (Replaces nut P34167)
4шт.
25
P1437456
PLUG
ASSEMBLY - cylinder
2шт.
P945295
SEAL
- plug
1шт.
26
J45801
LUBE NIPPLE,M8 x 1.25
straight, cylinder M8 x 1.25
4шт.
Выбрано товаров: 28
