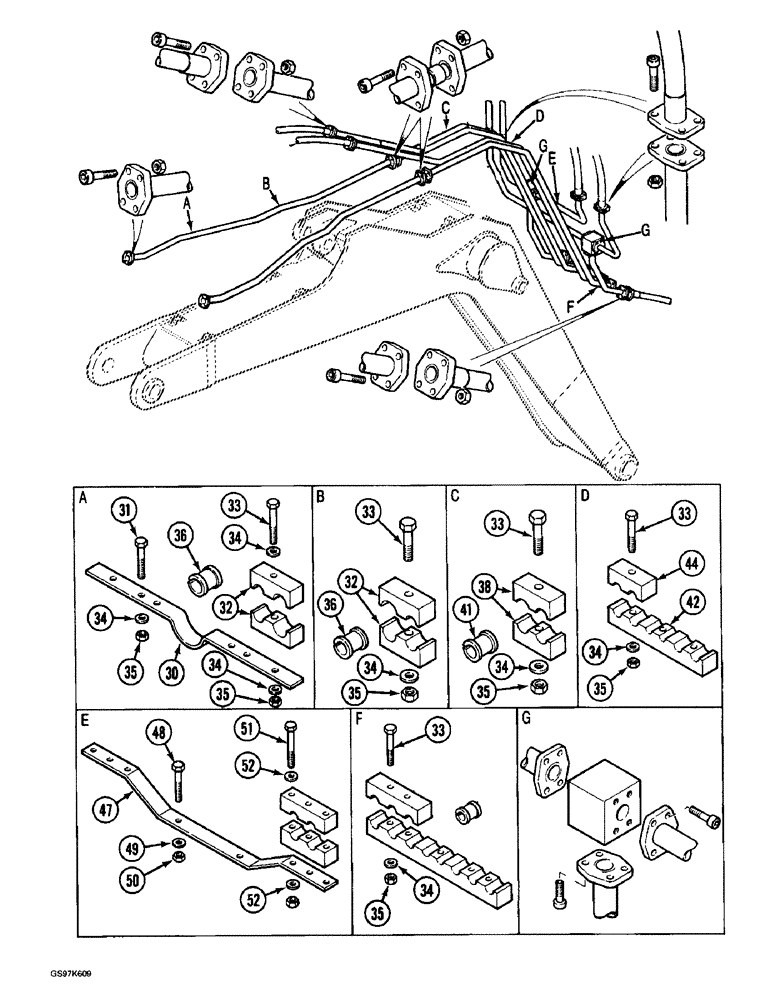

Запчасти Case 220B (8-096) - BOOM ARM AND TOOL CYLINDER CIRCUITS, TUBES & CLAMPS AT BOOM, PIN 74441-74597, PIN 03201 & AFT, CONT (08) - HYDRAULICS

30

P1326770

SUPPORT

BRACKET - clamp mounting, under rod end of arm cylinder, continued

1шт.

31

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

- bracket to boom, hex, 20 - 2.5 x 70 mm (Replaces bolt P33865)

2шт.

32

P2020319

SHIN

CLAMP - tubes to tool cylinder

8шт.

33

P133821

SCREW

BOLT - clamp

12шт.

34

P4328747

WASHER

- flat

16шт.

35

825-1420

NUT,M20, Cl 8

Hex (Replaces nut P34171) M20, Cl 8

14шт.

36

P741486

BUSHING

SLEEVE - tube, at clamp

4шт.

38

P1420345

SHIN

CLAMP - tubes to tool and arm cylinders, top of boom

4шт.

41

P741486

BUSHING

SLEEVE - tube, at clamp

4шт.

42

P2020320

SHIN

CLAMP - long, base, tubes to tool and arm cylinders, at bend in boom

1шт.

44

P1420344

SHIN

CLAMP - short, top, tubes to tool and arm cylinders, at bend in boom

2шт.

47

P1326771

SUPPORT

BRACKET - clamp mounting, crossover tubes to boom cylinders

1шт.

48

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

- bracket to boom, hex, 20 - 2.5 x 70 mm (Replaces bolt P33865)

2шт.

49

P4328747

WASHER

- flat

2шт.

50

825-1420

NUT,M20, Cl 8

Hex (Replaces nut P34171) M20, Cl 8

2шт.

51

P32705

SCREW

BOLT - clamp

6шт.

52

P4328746

WASHER

- flat

12шт.
