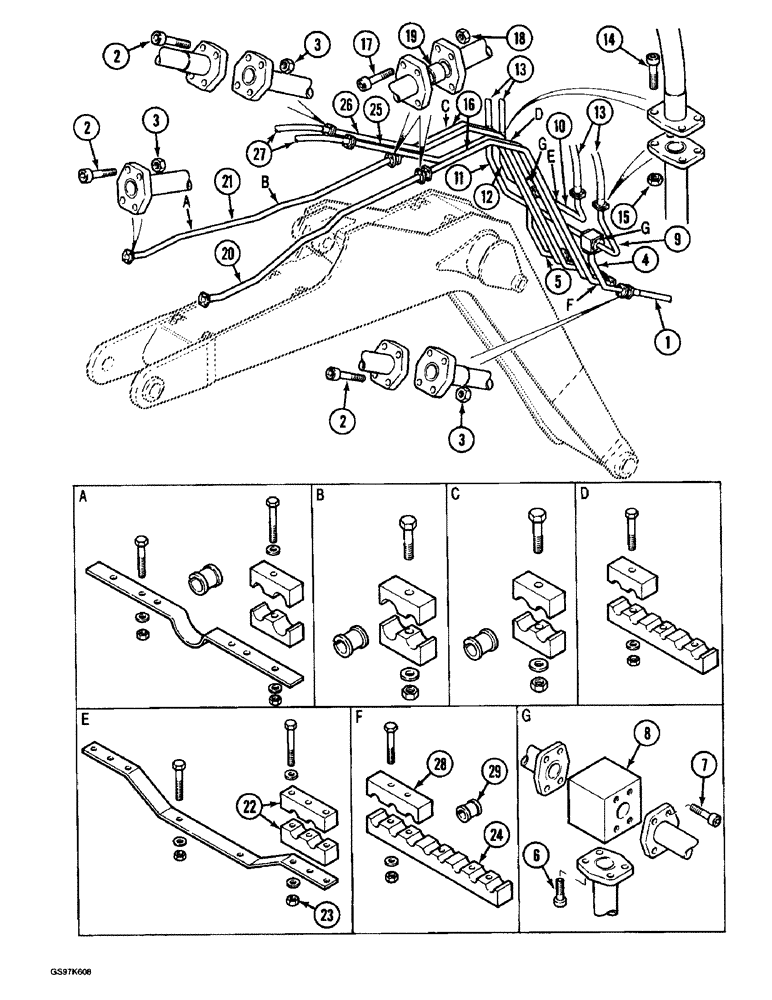

Запчасти Case 220B (8-094) - BOOM ARM AND TOOL CYLINDER CIRCUITS, TUBES & CLAMPS AT BOOM, PIN 74441-74597, PIN. 03201 & AFT (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - attachment circuit, see figure 8-74, Ref. 40

6шт.

2

P1232975

SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9

BOLT - hose flange to tube flange

20шт.

3

829-1414

NUT,M14, Cl 10

- flange bolt, hex, 14 mm - 2.0, class 10 (Replaces nut P134107)

20шт.

4

P3847643

HYD TUBE,501, 85 mm L

TUBE - to left-hand manifold block, rod end of boom cylinders

1шт.

5

P3149016

PIPE

TUBE - to right-hand manifold block, closed end of boom cylinders

1шт.

6

P532924

SCREW

BOLT - tube flange to manifold block, lower

4шт.

7

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Crossover tube flange to manifold block, sides Hex Skt Hd, M12 x 40, 10.9

8шт.

8

P537244

TEE

BLOCK - manifold, boom cylinder circuits

2шт.

9

P3847645

HYD TUBE,1.32" DIA

TUBE - manifold to left-hand boom cylinder, rod end

1шт.

10

P3847644

PIPE

TUBE - manifold to left-hand boom cylinder, closed end

1шт.

11

P3847647

PIPE

TUBE - manifold to right-hand boom cylinder, rod end

1шт.

12

P3847646

PIPE

TUBE - manifold to right-hand boom cylinder, closed end

1шт.

13

P2231983

HOSE

- to boom cylinder, 800 mm (31-1/2 inch) long

4шт.

14

P832964

SCREW

BOLT - tube flange to hose flange

8шт.

15

829-1412

NUT,M12, Cl 10.9

- flange bolt, hex, 12 mm - 1.75, class 10

8шт.

16

P5549146

PIPE

TUBE - to tool cylinder, lower boom

2шт.

17

P532927

SCREW

BOLT - tube flange to tube flange

4шт.

18

829-1414

NUT,M14, Cl 10

- flange bolt, hex, 14 mm - 2.0, class 10 (Replaces nut P134107)

4шт.

19

P1737760

JUNCTION

ADAPTER - tube flange, no longer available

2шт.

20

P5549144

PIPE

TUBE - to tool cylinder, upper boom, left-hand

1шт.

21

P5549145

PIPE

TUBE - to tool cylinder, upper boom, right-hand

1шт.

22

P520308

SHIN

CLAMP - tubes to boom cylinders

4шт.

23

829-1416

NUT,M16, Cl 10

- bolt, hex, 16 mm - 2.0, class 10 (Replaces nut P34169)

6шт.

24

P2020321

SHIN

CLAMP - long, base, all tubes at base of boom above attachment hoses

1шт.

25

P2949161

PIPE

TUBE - to arm cylinder, left-hand

1шт.

26

P2949162

PIPE

TUBE - to arm cylinder, right-hand

1шт.

27

P1031904

HOSE

- 1000 mm (39-3/8 inch) long, to arm cylinder

2шт.

28

P1220363

SHIN

CLAMP - tubes

2шт.

29

P741486

BUSHING

SLEEVE - tube Continued on next figure

6шт.
