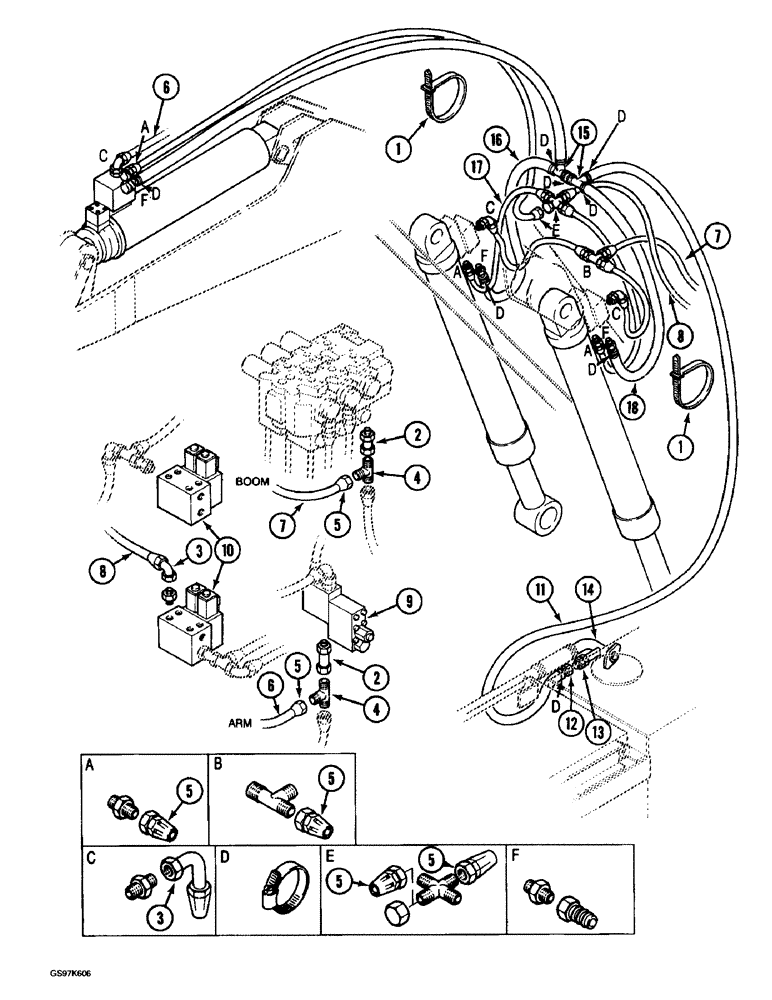

Запчасти Case 220B (8-090) - OPTIONAL CRANING VALVE HYDRAULIC CIRCUIT, ARM AND BOOM CYLINDERS (08) - HYDRAULICS

1

P51946

CLAMP

STRAP - tie, hoses

1шт.

2

P4037577

FITTING

TUBE ASSEMBLY - adapter

2шт.

P945295

SEAL

- adapter tube

1шт.

3

P4037590

END FITTING

ELBOW - 90 degree

4шт.

4

P937275

TEE

- control circuit, see figures 8-54 - 8-62 for hydraulic control circuit to attachment control valve and parallel supply valve

2шт.

5

P4037588

END FITTING

ADAPTER - straight, hose

12шт.

6

REF

INSTRUCTION

HOSE - tee at parallel supply control valve to craning valve at arm cylinder, 1100 mm (433 inch) long, cut from bulk hose P1103640 below

1шт.

7

REF

INSTRUCTION

HOSE - tee at attachment control valve to craning valve at boom cylinder, 6000 mm (236 inch) long, cut from bulk hose P1103640 below

1шт.

8

REF

INSTRUCTION

HOSE - solenoid control valve to craning valve at boom cylinder, 6000 mm (236 inch) long, cut from bulk hose P1103640 below

1шт.

9

P3143306

BLOCK

VALVE ASSEMBLY - control, parallel supply, parts list Figure 8-154

1шт.

10

REF

INSTRUCTION

BLOCK - manifold, solenoid valve, see figure 8-148 for correct block and parts list for valve

2шт.

11

REF

INSTRUCTION

HOSE - return, tee to reservoir, 7000 mm (276 inch) long, cut from bulk hose P31901 below

1шт.

12

P3837686

PIPE

TUBE - at, Serial Range: manifold-reservoir

1шт.

13

P37554

UNION

ADAPTER -, Serial Range: tube-manifold

1шт.

14

REF

INSTRUCTION

TUBE - manifold, cooler return hoses, see figures 8-30 - 8-36 for return, Serial Range: lines-reservoir

1шт.

15

P3050114

PIPE

TEE - return hoses

2шт.

16

REF

INSTRUCTION

HOSE - return, craning valve at right-hand boom cylinder to tee, 2000 mm (78-3/4 inch) long, cut from bulk hose P31901 below

1шт.

17

REF

INSTRUCTION

HOSE - control circuit, tee to craning valve at right-hand boom cylinder, 2000 mm (78-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

18

REF

INSTRUCTION

HOSE - return, craning valve at left-hand boom cylinder to tee, 2000 mm (78-3/4 inch) long, cut from bulk hose P31901 below

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.

P31901

HOSE, BULK

HOSE - bulk, sold by the meter, continued on next figure

1шт.
