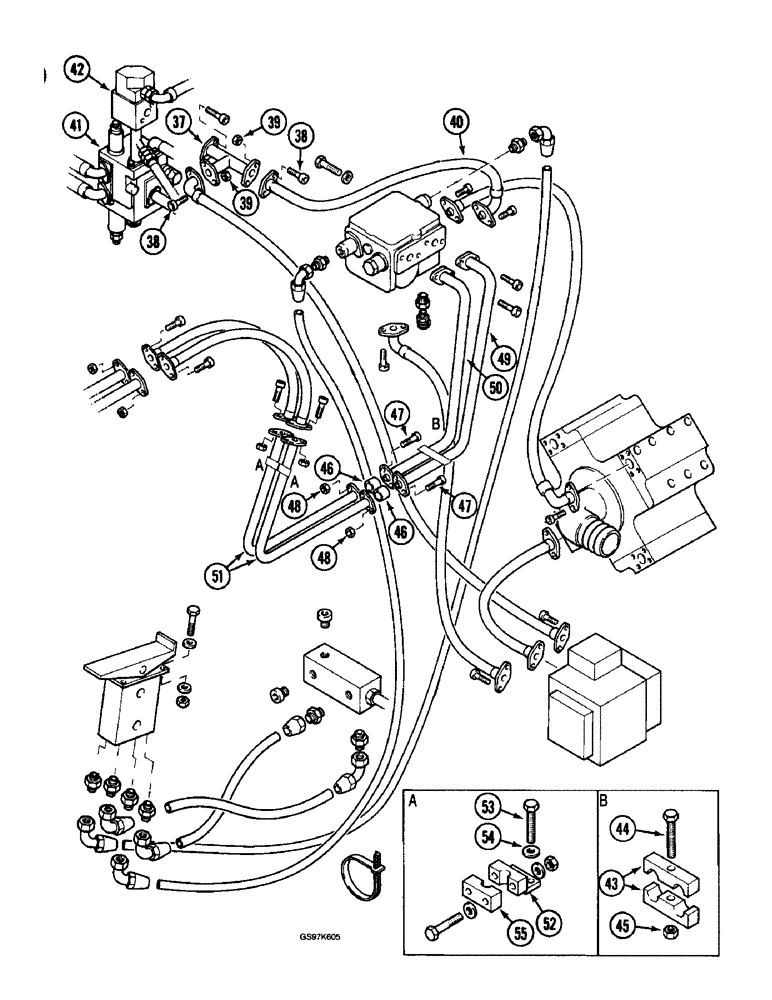

Запчасти Case 220B (8-088) - HYDRAULIC CIRCUIT FOR OPTIONS, P.I.N. 74570 THROUGH 74597, P.I.N. 03201 AND AFTER (CONT) (08) - HYDRAULICS

37

P3450104

MANIFOLD

TUBE - manifold, at pressure regulating valve, continued

1шт.

38

P632934

SCREW

BOLT - hoses to manifold tube

4шт.

39

829-1412

NUT,M12, Cl 10.9

- manifold bolt, hex, 12 mm - 1.75, class 10

4шт.

40

P3231981

HOSE

- manifold to optional equipment valve

1шт.

41

REF

INSTRUCTION

VALVE ASSEMBLY - swing control, parts list Figure 8-136, see figure 8-74 for related hydraulics

1шт.

42

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulating, 13 bar, parts list figure 8-164 or 8-166, see figure 8-74 for related hydraulics

1шт.

43

P1820352

SHIN

CLAMP - tube, half

2шт.

44

814-14080

BOLT,Hex, M14 x 2 x 80mm, Cl 8.8

(Replaces bolt P933851) Hex, M14 x 80, 8.8

1шт.

45

P134549

SAFETY NUT

NUT - clamp bolt

1шт.

46

P1737758

JUNCTION

ADAPTER - tube flange

2шт.

47

P1432903

SCREW

BOLT -, Serial Range: tube-tube

4шт.

48

825-1408

NUT,M8, Cl 8

Tube flange bolt M8, Cl 8

4шт.

49

P5749097

PIPE

TUBE - from valve

1шт.

50

P5749098

PIPE

TUBE - from valve

1шт.

51

P8047632

PIPE

TUBE, Serial Range: --boom

2шт.

52

P3227167

SHIN

CLAMP - mounting half

2шт.

53

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

54

P3528793

WASHER

SPACER - mounting bolt

4шт.

55

P520318

SHIN

CLAMP - tube

2шт.
