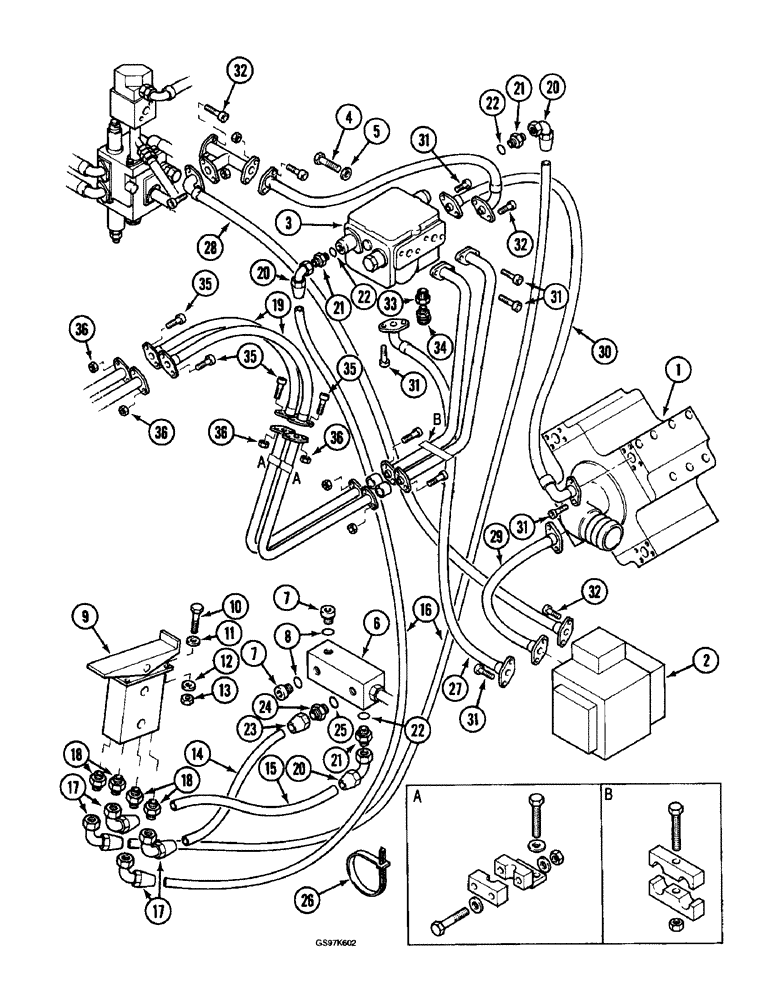

Запчасти Case 220B (8-082) - HYDRAULIC CIRCUIT FOR OPTIONS, P.I.N. 74510 THROUGH 74569 (08) - HYDRAULICS

1

P3443516

PUMP

ASSEMBLY - high pressure, parts list Figure 8-116

1шт.

2

P1343315

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-156

1шт.

3

P2443638

BLOCK ASSY.

VALVE ASSEMBLY - optional equipment control, parts list Figure 8-136

1шт.

4

814-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

valve mounting, replaces bolt P33803 Hex, M16 x 55, 8.8, Full Thd

3шт.

5

P4528716

WASHER

SPACER - mounting bolt

3шт.

6

P2463329

BLOCK - manifold, for attaching hardware, see Figure 8-68

1шт.

7

P1737451

PLUG

- manifold block

2шт.

8

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Plug (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

2шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, parts list figure 8-144 or 8-146

1шт.

10

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8) (Replaces bolt P33822)

4шт.

11

P3528794

WASHER

SPACER - bolt, upper, 6 mm thick

4шт.

12

P4328730

WASHER

SPACER - bolt, lower, 20 mm thick

4шт.

13

P1334571

NUT

- cage type, 8 mm

4шт.

14

REF

INSTRUCTION

HOSE - control circuit, 700 mm (27-9/16 inch) long, cut from bulk hose P1103640 below

1шт.

15

REF

INSTRUCTION

HOSE - control circuit, 1000 mm (39-3/8 inch) long, cut from bulk hose P1103640 below

1шт.

16

REF

INSTRUCTION

HOSE - control circuit, 126 (3200 mm) long, cut from bulk hose P1103640 below

2шт.

17

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

18

P4037504

UNION

ADAPTER ASSEMBLY - straight

4шт.

P7046042

SEAL

- adapter

1шт.

19

P1031918

HOSE

- at boom

2шт.

20

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

3шт.

21

P3037546

UNION

ADAPTER - straight

3шт.

22

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

3шт.

23

B506378

END FITTING

ADAPTER - straight, control circuit hose (Replaces adapter P4037535)

1шт.

24

P3037546

UNION

ADAPTER - straight

1шт.

25

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

1шт.

26

P51946

CLAMP

STRAP - tie, control circuit hoses

1шт.

27

P3731961

HOSE

- valve to valve, lower

1шт.

28

P3231981

HOSE

- valve to pressure regulating valve, upper

1шт.

29

REF

INSTRUCTION

HOSE - pump to power sensing valve, see figure 8-8

1шт.

30

P3231950

HOSE

- pump to optional equipment control valve

1шт.

31

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose and tube ends Hex Soc Hd, M10 x 35, 10.9

12шт.

32

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Hose ends Hex Skt Hd, M12 x 40, 10.9

6шт.

33

P637358

RESTRICTOR

ADAPTER ASSEMBLY - check valve

1шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

34

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- check valve

1шт.

35

L632924

SCREW

BOLT -, Serial Range: hose-tube

8шт.

36

825-1408

NUT,M8, Cl 8

Mounting bolt M8, Cl 8

8шт.

P1103640

PIPE

HOSE - bulk, sold by the meter Continued on next figure

1шт.
