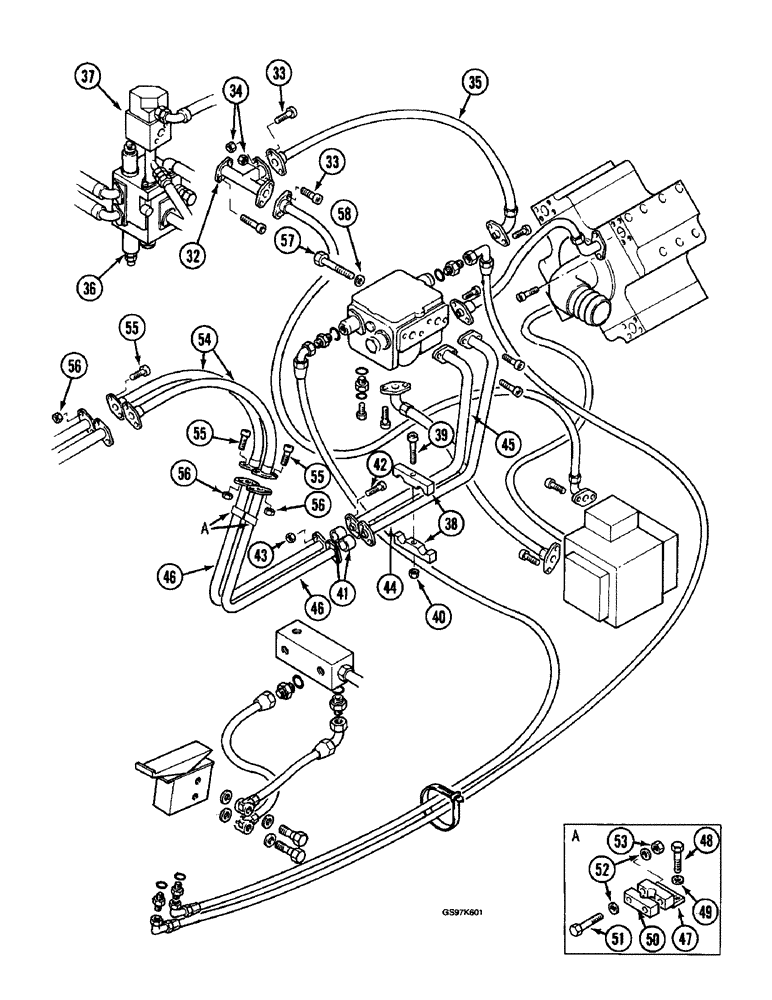

Запчасти Case 220B (8-080) - HYDRAULIC CIRCUIT FOR OPTIONS, P.I.N. 74441 THROUGH 74509 (CONT) (08) - HYDRAULICS

32

P3450104

MANIFOLD

TUBE - manifold, at pressure regulating valve, continued

1шт.

33

P632934

SCREW

BOLT - hoses to manifold tube

4шт.

34

829-1412

NUT,M12, Cl 10.9

- manifold bolt, hex, 12 mm - 1.75, class 10

4шт.

35

P3231981

HOSE

- manifold to optional equipment valve

1шт.

36

P2443638

BLOCK ASSY.

VALVE ASSEMBLY - swing control, parts list Figure 8-136, see Figure 8-74 for related hydraulics

1шт.

37

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulating, 13 bar, parts list Figure 8-164 or 8-166, see figure 8-74 for related hydraulics

1шт.

38

P1820352

SHIN

CLAMP - tube, half

2шт.

39

814-14080

BOLT,Hex, M14 x 2 x 80mm, Cl 8.8

tube clamp Hex, M14 x 80, 8.8

1шт.

40

P134549

SAFETY NUT

NUT - clamp bolt

1шт.

41

P1737758

JUNCTION

ADAPTER - tube flange

2шт.

42

P1432903

SCREW

BOLT -, Serial Range: tube-tube

4шт.

43

825-1408

NUT,M8, Cl 8

Tube flange bolt M8, Cl 8

4шт.

44

P5749097

PIPE

TUBE - from valve

1шт.

45

P5749098

PIPE

TUBE - from valve

1шт.

46

P8047632

PIPE

TUBE, Serial Range: --boom

2шт.

47

P3227167

SHIN

CLAMP - mounting half

2шт.

48

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Clamp mounting Hex, M12 x 35, 8.8, Full Thd

4шт.

49

P3528793

WASHER

SPACER - mounting bolt

4шт.

50

P520318

SHIN

CLAMP - tube

2шт.

51

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

- hex, M10 - 1.5 x 75. 8.8, Clamp (Replaces bolt P33833)

4шт.

52

P3528795

WASHER

SPACER - clamp bolt

8шт.

53

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Clamp bolt (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.

54

P1031918

HOSE

- at boom

2шт.

55

L632924

SCREW

BOLT -, Serial Range: hose-tube

8шт.

56

825-1408

NUT,M8, Cl 8

Mounting bolt M8, Cl 8

8шт.

57

814-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

valve mounting, replaces bolt P33803 Hex, M16 x 55, 8.8, Full Thd

3шт.

58

P4528716

WASHER

SPACER - mounting bolt

3шт.
