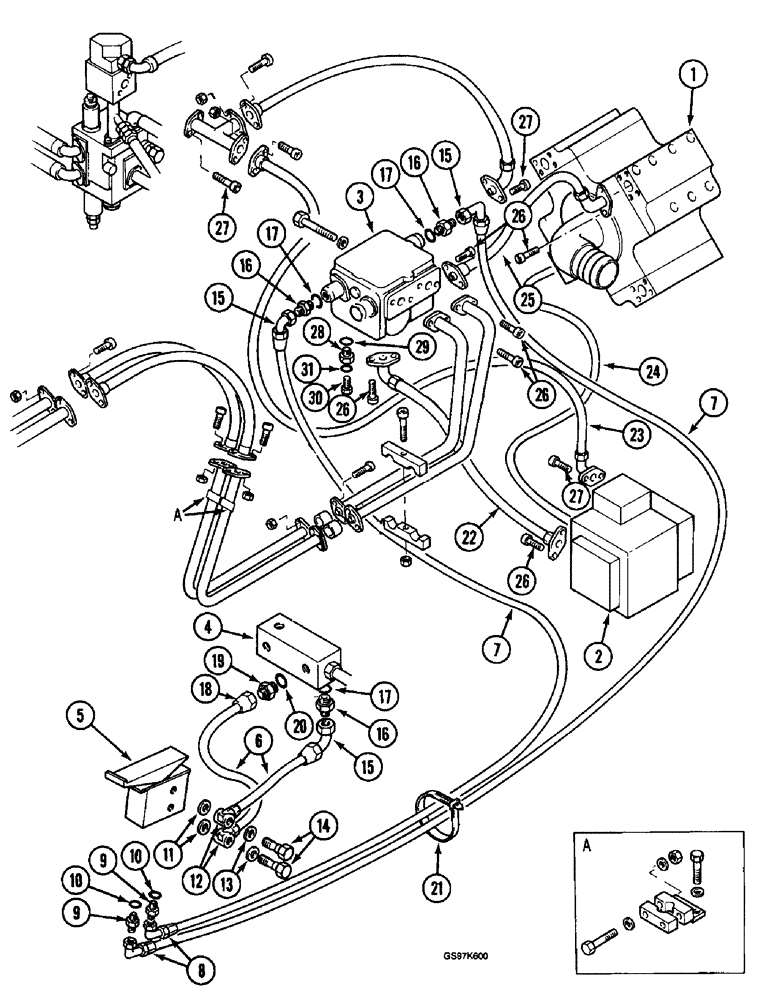

Запчасти Case 220B (8-078) - HYDRAULIC CIRCUIT FOR OPTIONS, P.I.N. 74441 THROUGH 74509 (08) - HYDRAULICS

1

P3443516

PUMP

ASSEMBLY - high pressure, parts list Figure 8-116

1шт.

2

P1343315

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-156

1шт.

3

P2443638

BLOCK ASSY.

VALVE ASSEMBLY - optional equipment control, parts list Figure 8-136

1шт.

4

P2643329

BLOCK ASSY.

MANIFOLD - for attaching hardware, see Figure 8-66

1шт.

5

P2643318

BLOCK ASSY.

VALVE ASSEMBLY - foot control, parts list Figure 8-142

1шт.

6

REF

INSTRUCTION

HOSE - control circuit, 700 mm (27-9/16 inch) long, cut from bulk hose P1103640 below

2шт.

7

REF

INSTRUCTION

HOSE - control circuit, 3200 mm (126 inch) long, cut from bulk hose P1103640 below

2шт.

8

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

2шт.

9

P4037504

UNION

ADAPTER - straight

2шт.

10

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

2шт.

P4037540

FITTING

ELBOW ASSEMBLY - special, control circuit hose, Includes: Ref. 11 - 14

2шт.

11

P45202

WASHER, SEALING

SEAL - elbow

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - elbow, order elbow assembly P4037540

1шт.

13

P45202

WASHER, SEALING

SEAL - elbow

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT - elbow, order elbow assembly P4037540

1шт.

15

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

3шт.

16

P3037546

UNION

ADAPTER - straight

3шт.

17

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

3шт.

18

B506378

END FITTING

ADAPTER - straight, control circuit hose (Replaces adapter P4037535)

1шт.

19

P3037546

UNION

ADAPTER - straight

1шт.

20

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

1шт.

21

P51946

CLAMP

STRAP - tie, control circuit hoses

1шт.

22

P3731961

HOSE

- valve to valve, lower

1шт.

23

P3731967

HOSE

- valve to pressure regulating valve, upper

1шт.

24

REF

INSTRUCTION

HOSE - pump to power sensing valve, see figure 8-8

1шт.

25

P3231950

HOSE

- pump to optional equipment control valve

1шт.

26

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose and tube ends Hex Soc Hd, M10 x 35, 10.9

12шт.

27

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Hose ends Hex Skt Hd, M12 x 40, 10.9

6шт.

28

P637358

RESTRICTOR

REDUCER - valve port

1шт.

29

P1230443

O-RING

- reducer

1шт.

30

P1437455

PLUG

- hex head (Replaces plug P1737452)

1шт.

31

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter Continued on next figure

1шт.
