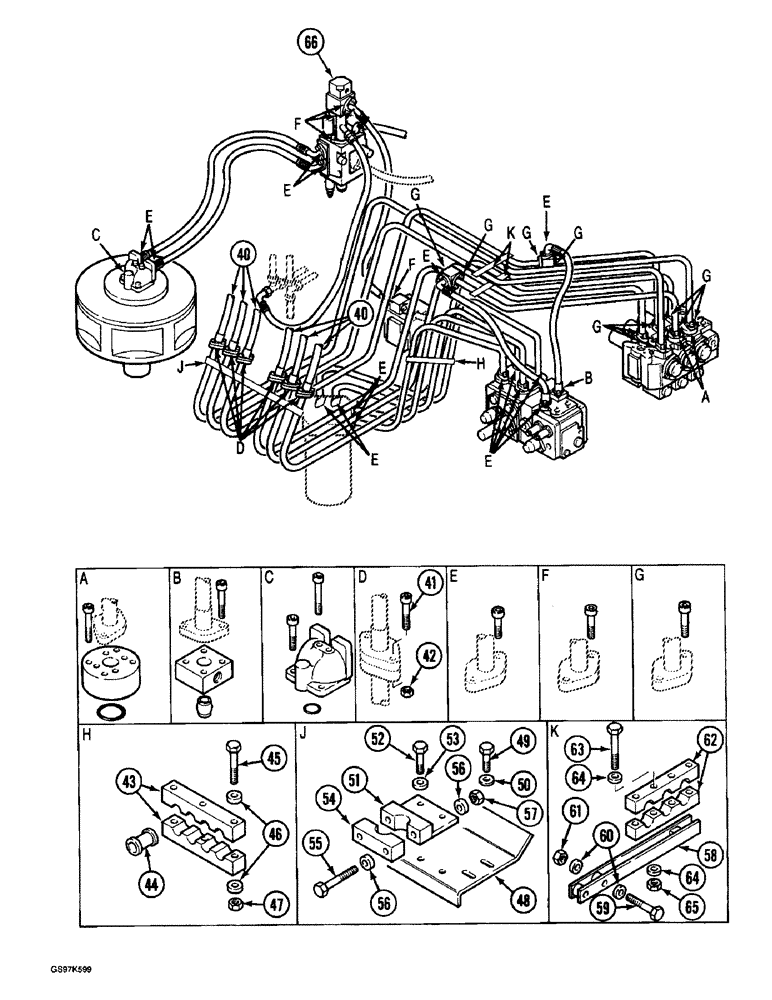

Запчасти Case 220B (8-076) - HYDRAULIC CIRCUIT FROM SWING & DRIVE CONRTOL VALVES, P.I.N. 74441 THRU 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

40

P731983

HOSE

- to tubes on boom, for connection to boom tubing, see figure 8-94 and 8-96, continued

1шт.

41

P1232975

SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9

BOLT - hoses to tubes

12шт.

42

829-1414

NUT,M14, Cl 10

- mounting bolt, hex, 14 mm - 2.0, class 10 (Replaces nut P134107)

12шт.

43

P3820357

SHIN

CLAMP - tube, half

2шт.

44

P741440

BUSHING

SLEEVE - tube

4шт.

45

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

- hex, 12-1.75 x 110 mm, 8.8 - clamp (Replaces bolt P133887)

3шт.

46

P3528793

WASHER

SPACER - bolt

6шт.

47

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, , Clamp bolt (Replaces nut P34596) M12 x 1.75, Cl 8

3шт.

48

P6628199

SUPPORT

PLATE - clamp mounting, no longer available

1шт.

49

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- mounting plate, hex, full threads, 12 - 1.75 x 40 mm (Replaces bolt P533837)

4шт.

50

P3528793

WASHER

SPACER - mounting bolt

4шт.

51

P2927135

SHIN

CLAMP - tube, bolt down half

6шт.

52

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Clamp mounting Hex, M12 x 35, 8.8, Full Thd

12шт.

53

P3528793

WASHER

SPACER - mounting bolt

12шт.

54

P1820379

SHIN

CLAMP - tube, half

6шт.

55

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

- clamp, hex, 12 - 1.75 x 90 mm (Replaces bolt P33844)

12шт.

56

P3528793

WASHER

SPACER - clamp bolt

24шт.

57

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, , Clamp bolt (Replaces nut P34596) M12 x 1.75, Cl 8

12шт.

58

P9428186

SUPPORT

- tube clamp

1шт.

59

814-14080

BOLT,Hex, M14 x 2 x 80mm, Cl 8.8

support mounting Hex, M14 x 80, 8.8

2шт.

60

P3528792

WASHER

SPACER - mounting bolt

4шт.

61

P134549

SAFETY NUT

NUT - mounting bolt

2шт.

62

P2120348

SHIN

CLAMP - tube, half

4шт.

63

814-14200

BOLT,Hex, M14 x 2 x 200mm, Cl 8.8

tube clamp (Replaces bolt P433857) Hex, M14 x 200, 8.8

8шт.

64

P3528792

WASHER

SPACER - clamp bolt

16шт.

65

P134549

SAFETY NUT

NUT - clamp bolt

8шт.

66

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulating, 13 bar, parts list Figure 8-164 or 8-166

1шт.
