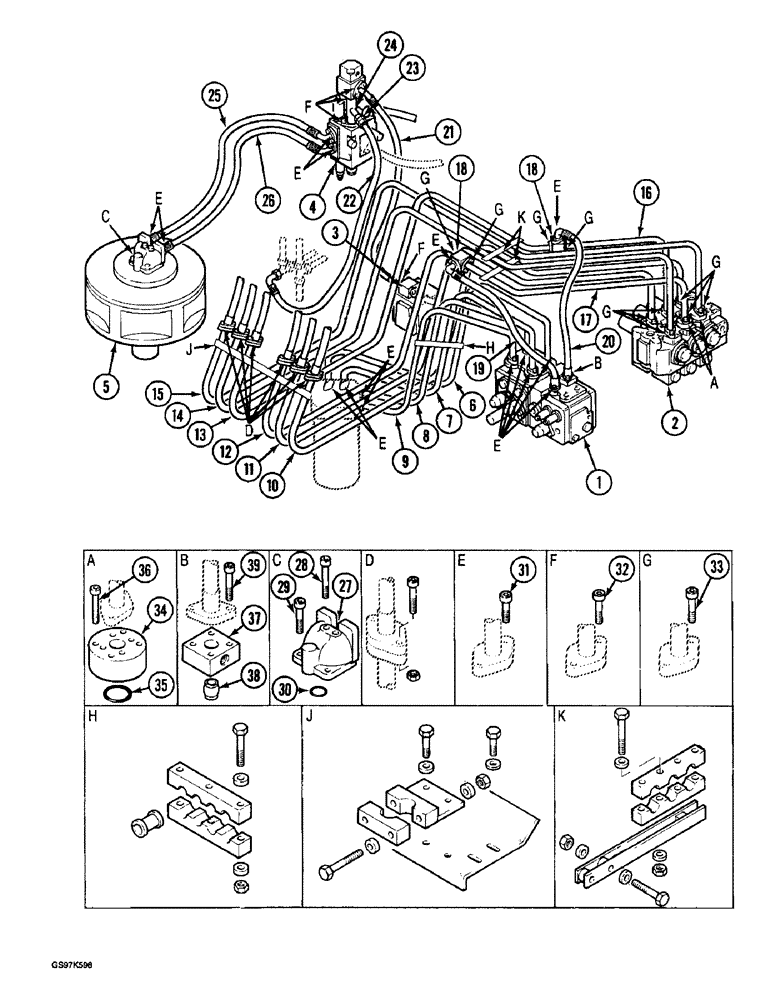

Запчасти Case 220B (8-074) - HYDRAULIC CIRCUIT FROM SWING & DRIVE CONTROL VALVES, P.I.N. 74441 THRU 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - parallel and drive control, parts list figure 8-130 or 8-134

1шт.

2

P2243644

BLOCK ASSY.

VALVE ASSEMBLY - attachment control, parts list Figure 8-122

1шт.

3

P1343315

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-156

1шт.

4

P2443638

BLOCK ASSY.

VALVE ASSEMBLY - swing control, parts list Figure 8-136

1шт.

5

P1943722R

REMAN-HYD MOTOR

MOTOR ASSEMBLY - swing hydraulic, parts list Figures 8-178 and 8-180

1шт.

6

P5649186

PIPE

TUBE - from drive control valve

1шт.

7

P5649187

PIPE

TUBE - from drive control valve

1шт.

8

P5649185

PIPE

TUBE - from drive control valve

1шт.

9

P5649182

PIPE

TUBE - from drive control valve

1шт.

10

P2949173

PIPE

TUBE - from attachment control valve

1шт.

11

P2949176

HYD TUBE,42.25 mm OD

TUBE - from attachment control valve

1шт.

12

P6049096

PIPE

TUBE - from junction block

1шт.

13

P6249162

PIPE

TUBE - from junction block

1шт.

14

P2949175

PIPE

TUBE - from attachment control valve

1шт.

15

P2949177

PIPE

TUBE - from attachment control valve

1шт.

16

P6947150

PIPE

TUBE - attachment control valve to junction block

1шт.

17

P8047696

PIPE

TUBE - attachment control valve to junction block

1шт.

18

P537275

TEE

BLOCK - junction

2шт.

19

P3231910

HOSE

- at parallel control valve

1шт.

20

P3731961

HOSE

- at parallel control valve

1шт.

21

P3231981

HOSE

- power sensing valve to swing control valve

1шт.

22

P3231992

HOSE

- return

1шт.

23

P837550

UNION

ADAPTER - straight

1шт.

24

P3050109

MANIFOLD

TUBE - three way

1шт.

25

P3231910

HOSE

- to swing motor

1шт.

26

P3231950

HOSE

- to swing motor

1шт.

P2137784

SHIN

ADAPTER ASSEMBLY - at swing motor, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - adapter, order adapter assembly P2137784

1шт.

28

P32979

SCREW

BOLT - long

2шт.

29

P32903

SCREW

BOLT - short

2шт.

30

P30318

O-RING

-, Serial Range: adapter-motor

1шт.

31

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose and tube ends Hex Soc Hd, M10 x 35, 10.9

30шт.

32

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Hose and tube ends Hex Skt Hd, M12 x 40, 10.9

8шт.

33

P532924

SCREW

BOLT - tube ends

20шт.

34

P4330115

SHIN

BLOCK - adapter, tube to attachment valve

2шт.

35

P30454

O-RING

-, Serial Range: block-valve

2шт.

36

P32964

SCREW

BOLT - block mounting

8шт.

37

P3237733

JUNCTION

BLOCK - hose to parallel control valve

1шт.

38

P1528828

JUNCTION

SLEEVE -, Serial Range: block-valve

1шт.

39

P1232979

SCREW

BOLT - hose and block mounting Continued on next figure

2шт.
