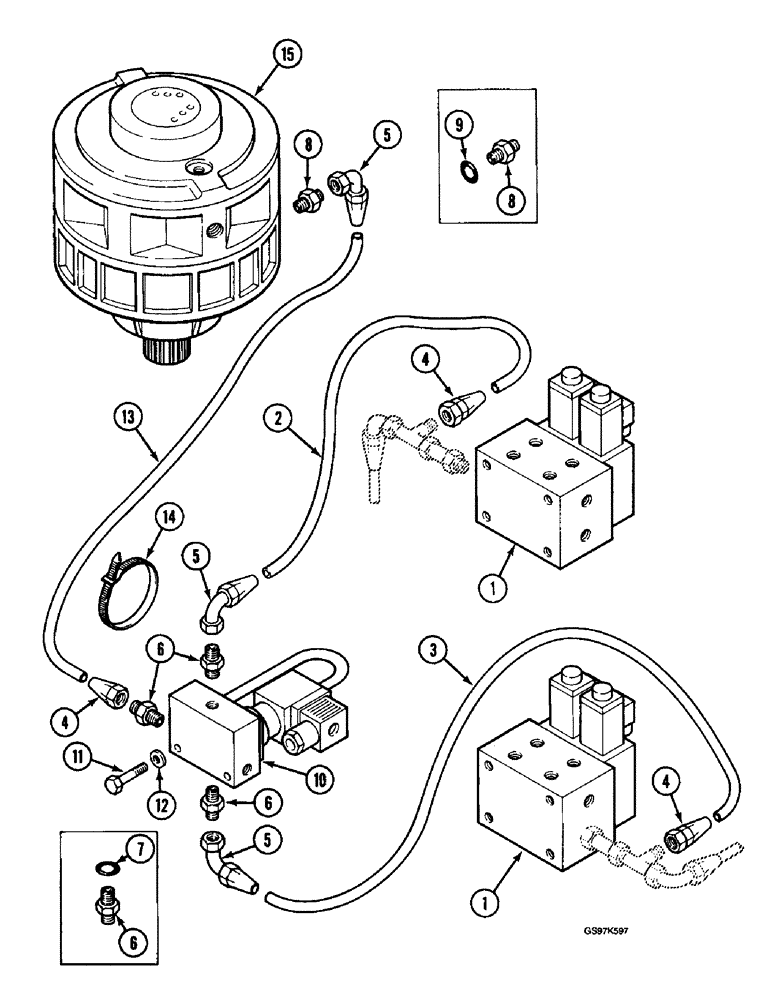

Запчасти Case 220B (8-072) - HYDRAULIC CIRCUIT FOR CONTROLS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

1

P1843371

SHIN

VALVE ASSEMBLY - solenoid control, 35 bar, parts list Figure 8-148, see Figures 8-46 - 8-50 for connecting lines

2шт.

2

REF

INSTRUCTION

HOSE - to 13 bar solenoid valve, 400 mm (15-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

3

REF

INSTRUCTION

HOSE - to 13 bar solenoid valve, 700 mm (27-9/16 inch) long, cut from bulk hose P1103640 below

1шт.

4

B506378

END FITTING

ADAPTER - straight, hose end (Replaces adapter P4037535)

3шт.

5

P4037537

END FITTING

ADAPTER - 90 degree, hose end

3шт.

6

P4037571

UNION

ADAPTER ASSEMBLY - straight, Serial Range: 74570-74597

3шт.

6

P4037571

UNION

ADAPTER ASSEMBLY - straight, Start Serial: 03201

3шт.

P7046042

SEAL

- adapter

1шт.

6

P4037504

UNION

ADAPTER ASSEMBLY - straight, Serial Range: 74441-74569

3шт.

7

P7046042

SEAL

- adapter

1шт.

8

P4037573

UNION

ADAPTER ASSEMBLY - straight, Serial Range: 74570-74597

1шт.

8

P4037573

UNION

ADAPTER ASSEMBLY - straight, Start Serial: 03201

1шт.

P945295

SEAL

- adapter

1шт.

8

P3037546

UNION

ADAPTER - straight, Serial Range: 74441-74569

1шт.

9

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid control, 13 bar, parts list Figure 8-150 or 8-152

1шт.

11

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- Valve mounting, hex, full threads, 6 - 1.0 x 20 mm (Replaces bolt P33809)

2шт.

12

P3528799

WASHER

SPACER - bolt

2шт.

13

REF

INSTRUCTION

HOSE - to swing brake, 4000 mm (157-1/2 inch) long, cut from bulk hose P1103640 below

1шт.

14

P136922

CLAMP

STRAP - tie, hose

1шт.

15

P1943722R

REMAN-HYD MOTOR

MOTOR ASSEMBLY - swing hydraulic, parts list Figures 8-178 and 8-180

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
