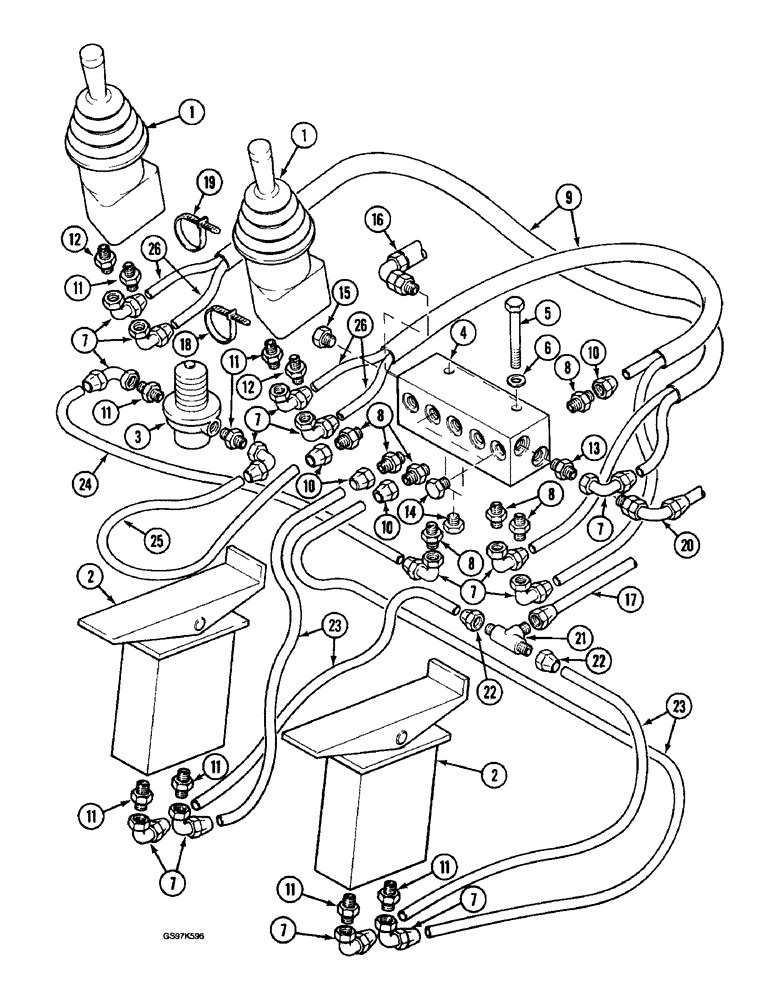

Запчасти Case 220B (8-070) - HYDRAULIC CIRCUIT FOR CONTROLS,MANIFOLD TO HAND/FOOT CONTROL VALVS,PIN 74570 - 74597,PIN 03201 & AFT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hand control, parts list Figure 8-138 or 8-140

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, parts list figure 8-144 or 8-146

2шт.

3

REF

INSTRUCTION

PUMP - foot

1шт.

4

P2643329

BLOCK ASSY.

MANIFOLD - control circuits

1шт.

5

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Manifold mounting Hex, M10 x 30, 8.8

2шт.

6

P3528795

WASHER

SPACER - bolt

2шт.

7

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

14шт.

8

P4037573

UNION

ADAPTER ASSEMBLY - straight

7шт.

P945295

SEAL

- adapter

1шт.

9

P4931937

LOOM

SLEEVE - control circuit hoses from hand control valves

2шт.

10

P4037588

END FITTING

ADAPTER - straight, control circuit hoses

4шт.

11

P4037571

UNION

ADAPTER ASSEMBLY - straight

8шт.

P7046042

SEAL

- adapter

1шт.

12

P4037572

UNION

ADAPTER ASSEMBLY - straight

2шт.

P7046042

SEAL

- adapter

1шт.

13

P4037574

UNION

ADAPTER ASSEMBLY - straight

1шт.

P945293

WASHER, SEALING

SEAL - adapter

1шт.

14

P1437456

PLUG

ASSEMBLY - manifold ports

4шт.

P945295

SEAL

- plug

1шт.

15

P1337445

PLUG

ASSEMBLY - manifold port, end

1шт.

P945293

WASHER, SEALING

SEAL - plug

1шт.

16

REF

INSTRUCTION

HOSE - control circuit, return, see page 8-27 for leak return circuit

1шт.

17

REF

INSTRUCTION

HOSE - control circuit, pressure, see page 8-51 for pilot control circuit

1шт.

18

P51946

CLAMP

STRAP - tie, control circuit hoses, small

1шт.

19

P136922

CLAMP

STRAP - tie, control circuit hoses, large

1шт.

20

REF

INSTRUCTION

HOSE - control circuit, pressure, see page 8-51 for pilot control circuit

1шт.

21

P937275

TEE

- control circuit lines

1шт.

22

P4037588

END FITTING

ADAPTER - straight, control circuit hoses

2шт.

23

REF

INSTRUCTION

HOSE - control circuit, 700 mm (27-9/16 inch) long, cut from bulk hose P1103640 below

4шт.

24

REF

INSTRUCTION

HOSE - control circuit, 500 mm (19-11/16 inch) long, cut from bulk hose P1103640 below

1шт.

25

REF

INSTRUCTION

HOSE - control circuit, 400 mm (15-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

26

REF

INSTRUCTION

HOSE - control circuit, 1600 mm (63 inch) long, cut from bulk hose P1103640 below

4шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
