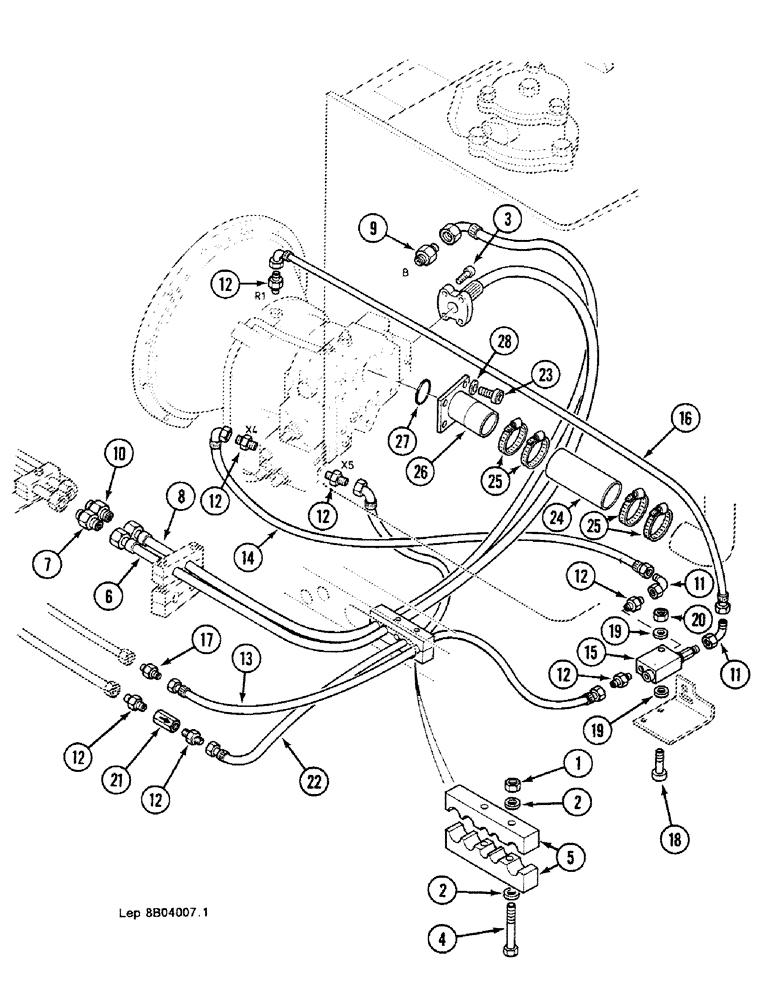

Запчасти Case 688C (8B-08) - ENGINE MODULE HYDRAULIC CIRCUIT, (10998-) (07) - HYDRAULIC SYSTEM

1

G34598

SAFETY NUT

M10

2шт.

2

W3528795

WASHER

"10.25 x 7 x 25"

6шт.

3

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

M6 x 25

4шт.

4

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

2шт.

5

N5120387

SHIN

BRACKET

2шт.

6

G7631935

HOSE

1450mm

1шт.

V1130446

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"18.64 x 3.53"

1шт.

7

M3237537

UNION

1шт.

8

N5431968

HOSE

1600mm

1шт.

9

H3237533

UNION

1шт.

G1145268

GASKET

"9.6 x 24.3 x 1.5"

1шт.

10

M3237537

UNION

1шт.

11

N1737018

ANGLE

PIECE

2шт.

12

E3237530

UNION

7шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.

13

U7931913

HOSE

800mm, Replace : D6531934

1шт.

14

V7931914

HOSE

800mm, Replace : P5931966

1шт.

15

BRACKET, See Figure : 8B-24

1шт.

16

K5431965

HOSE

800mm

1шт.

17

J3237534

UNION

1шт.

18

H132970

BOLT,Hex, M8 x 60

2шт.

19

V3528794

WASHER

"8.25 x 6 x 20"

4шт.

20

A134596

SAFETY NUT

M8

2шт.

21

FILTER, See Figure : 8B-26

1шт.

22

Q7931909

HOSE

1250mm, Replace : H5431940

1шт.

23

14422121

HEX SOC SCREW,M12 x 35mm, Cl 8.8, Full Thd

Replace T33873

4шт.

24

P131987

LARGE HOSE

HOSE,LARGE

1шт.

25

G136902

COLLAR CLAMP

60-80

4шт.

26

J4050170

MANIFOLD

COLLECTOR

1шт.

27

N930454

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"3.53 x 72.62-80"

1шт.

28

P4328797

WASHER

"12.5 x 8 x 25"

4шт.
