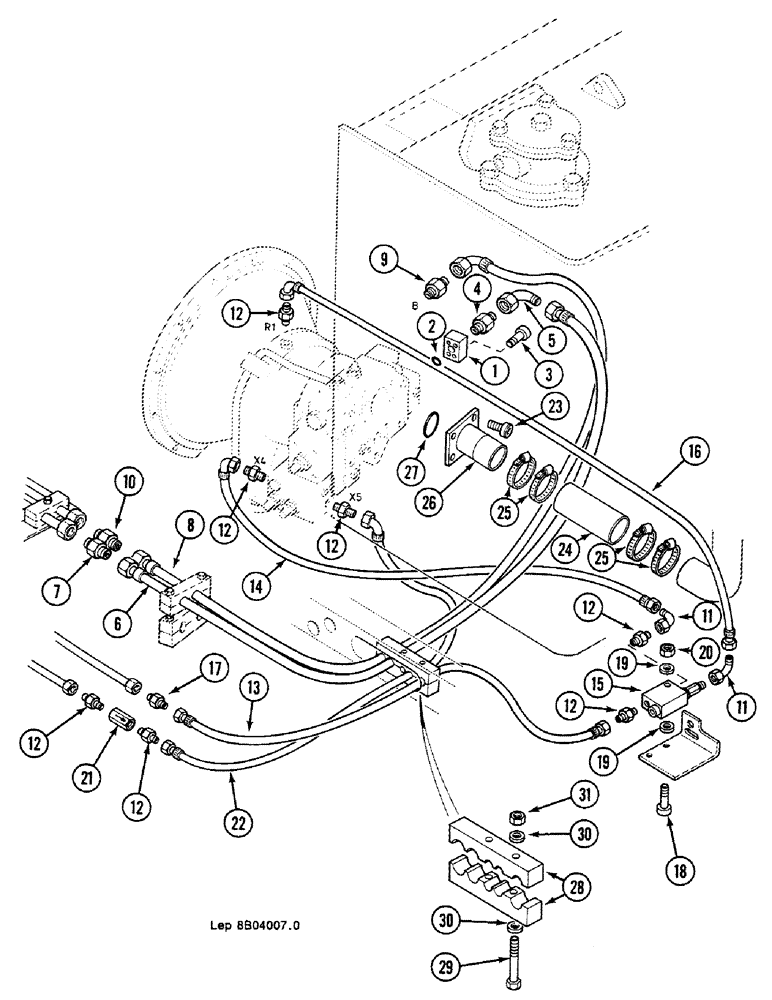

Запчасти Case 688C (8B-06) - ENGINE MODULE HYDRAULIC CIRCUIT, (-10997) (07) - HYDRAULIC SYSTEM

1

D5137766

SHIN

BRACKET

1шт.

2

N330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

"2.62 x 21.89-80"

1шт.

3

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

M6 x 25

4шт.

4

S4037597

UNION

1шт.

V5746063

GASKET

"23.9 x 29.2 x 1.5"

1шт.

5

R1737021

ANGLE

PIECE

1шт.

6

Q6531922

HOSE

1400mm

1шт.

7

M3237537

UNION

1шт.

8

N5431968

HOSE

1600mm

1шт.

9

H3237533

UNION

1шт.

G1145268

GASKET

"9.6 x 24.3 x 1.5"

1шт.

10

M3237537

UNION

1шт.

11

N1737018

ANGLE

PIECE

2шт.

12

E3237530

UNION

7шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.

13

D6531934

HOSE

800mm

1шт.

14

P5931966

HOSE

800mm

1шт.

15

BRACKET, See Figure : 8B-24

1шт.

16

K5431965

HOSE

800mm

1шт.

17

J3237534

UNION

1шт.

18

H132970

BOLT,Hex, M8 x 60

2шт.

19

V3528794

WASHER

"8.25 x 6 x 20"

4шт.

20

A134596

SAFETY NUT

M8

2шт.

21

FILTER, See Figure : 8B-26

1шт.

22

H5431940

HOSE

1250mm

1шт.

23

87016466

HEX SOC SCREW,M12 x 25mm, Cl 8.8, Full Thd

Replace T33873

4шт.

24

P131987

LARGE HOSE

HOSE,LARGE

1шт.

25

G136902

COLLAR CLAMP

60-80

4шт.

26

A4050162

MANIFOLD

COLLECTOR Order J4050170 (1) / H32943 (4) / P4328797 (4)

1шт.

27

N930454

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"3.53 x 72.62-80"

1шт.

28

L5120339

SHIN

BRACKET Replace : Z4820362

2шт.

29

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

2шт.

30

W3528795

WASHER

"10.25 x 7 x 25"

6шт.

31

G34598

SAFETY NUT

M10

2шт.
