Запчасти Case 688C (8A-06) - RETURN LINE HYDRAULIC FILTER (07) - HYDRAULIC SYSTEM

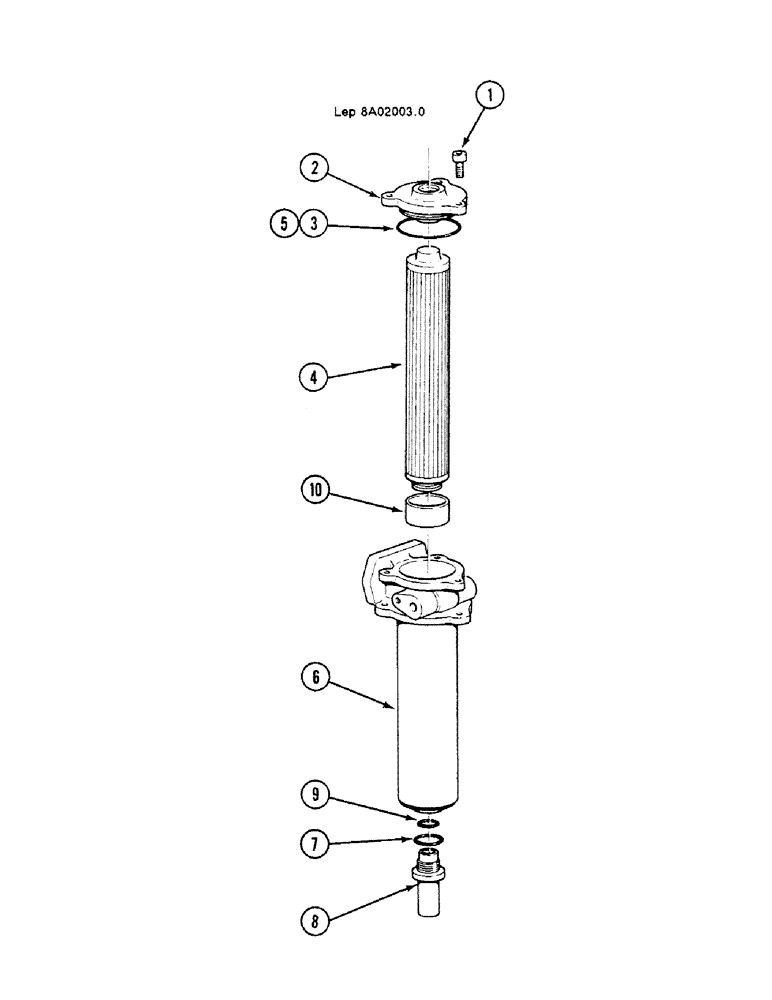

Схема запчастей Case 688C - (8A-06) - RETURN LINE HYDRAULIC FILTER (07) - HYDRAULIC SYSTEM
5
7
3
9
4
2
10
6
8
1

Артикул

Название

Примечание

Количество

H2950516

FILTER, ENGINE OIL

FILTER, OIL Consist Of : 1-10

1шт.

1

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

3шт.

2

G5340307

COVER

PLATE Replace : P5140375, Consist Of : 3

1шт.

3

U3230437

O-RING,3.1mm Thk x 99.4mm ID, 70 Duro

"3.1 x 99.4-70" Replace : H2930460

1шт.

4

C2950511

FILTER, ENGINE OIL

FILTER, OIL CARTRIDGE Consist Of : 5

1шт.

5

U3230437

O-RING,3.1mm Thk x 99.4mm ID, 70 Duro

"3.1 x 99.4-70"

1шт.

6

BODY Order : H2950516

1шт.

7

G2930459

O-RING,39 mm ID

3 x 39

1шт.

8

F2950514

TUBE

1шт.

9

N2930419

O-RING

"3.5 x 34"

1шт.

10

H1950591

FILTER BOWL

1шт.

Выбрано товаров: 11
