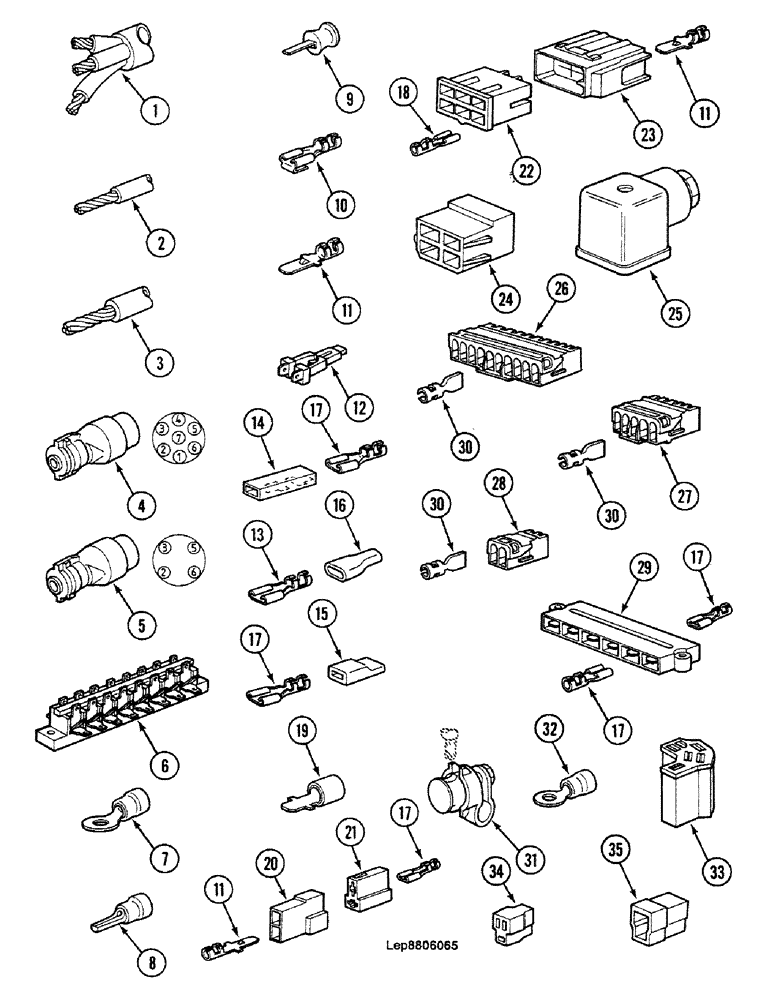

Запчасти Case 688C (4-64) - ELECTRIC ACCESSORIES (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
V104508
CABLE
"1 x 1.5mm"
1шт.
1
S104597
CABLE
"3 x 1.5mm"
1шт.
1
U104599
CABLE
"4 x 1.5mm"
1шт.
1
P104525
CABLE
"5 x 1.5mm"
1шт.
2
U31252
ELECTRICAL WIRE
WIRE "0.75mm2"
1шт.
2
V31253
ELECTRICAL WIRE
WIRE "1.50mm2"
1шт.
2
W31254
ELECTRICAL WIRE
WIRE "2.50mm2"
1шт.
3
J104520
CABLE
1шт.
4
P40746
CONNECTOR,ELECTRIC
PLUG
1шт.
5
J40741
CONNECTOR,ELECTRIC
PLUG
1шт.
6
NLS
NO LONGER SERVICED
1шт.
7
J40925
TERMINAL CONNECTOR
CLAMP 4
1шт.
7
K40926
TERMINAL CONNECTOR
CLAMP 5
1шт.
7
L40927
TERMINAL CONNECTOR
CLAMP 6
1шт.
7
P40953
TERMINAL CONNECTOR
CLAMP 8
1шт.
8
U40935
END FITTING
1шт.
9
G640901
END FITTING
1шт.
10
V40982
CLIP,ELECTRICAL
1шт.
11
X40938
CONNECTION
1шт.
12
A640964
FITTING
Order : 3178377R1
1шт.
13
G2036955
CLIP,ELECTRICAL
1шт.
14
B40941
CONNECTION,ELECTRIC
1шт.
15
Q1540485
ELECTRIC INSULATION
CAP
1шт.
16
C41471
ELECTRIC INSULATION
CAP
1шт.
17
P40940
TERMINAL
1шт.
18
E640945
CLIP,ELECTRICAL
1шт.
19
Z640963
CONNECTION
1шт.
20
U740848
ELEC CONNECTOR
1шт.
21
M440714
ELEC CONNECTOR
1шт.
22
R840757
ELEC CONNECTOR
CONNECTOR
1шт.
23
Q740844
ELEC CONNECTOR
1шт.
24
E740857
ELEC CONNECTOR
1шт.
25
J340730
MAKING-UP
UP making
1шт.
26
X740851
ELEC CONNECTOR
10 Junctions
1шт.
26
Z740852
ELEC CONNECTOR
8 Junctions
1шт.
26
G740859
ELEC CONNECTOR
7 Junctions
1шт.
27
B740854
ELEC CONNECTOR
5 Junctions
1шт.
27
A740853
ELEC CONNECTOR
6 Junctions
1шт.
28
F740858
ELEC CONNECTOR
2 Junctions
1шт.
28
C740855
ELEC CONNECTOR
3 Junctions
1шт.
29
D740856
SLIDER
1шт.
30
V640960
CLIP,ELECTRICAL
1шт.
31
NLS
NO LONGER SERVICED
CLAMP +
1шт.
31
C40919
TERMINAL CONNECTOR
CLAMP -
1шт.
32
T40934
TERMINAL CONNECTOR
CLAMP
1шт.
33
T1340710
ELEC CONNECTOR
CONNECTOR 6 Junctions
1шт.
34
R1340708
ELEC CONNECTOR
CONNECTOR 3 Junctions
1шт.
35
B840766
CASE
CONNECTOR 3 Junctions
1шт.
Выбрано товаров: 49
