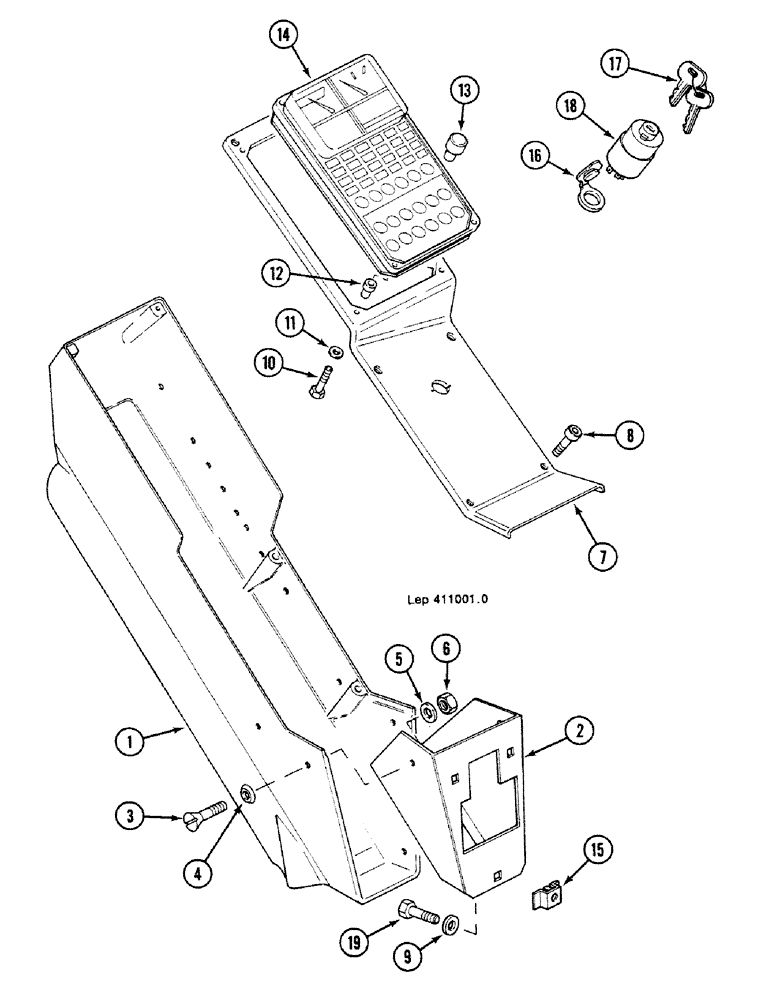

Запчасти Case 688C (4-36) - FITTED CONTROL PANEL, (11007-) (06) - ELECTRICAL SYSTEMS

1

P6643862

PANEL, INSTRUMENTS

PANEL, INSTRUMENT control

1шт.

2

Z3126343

SUPPORT

1шт.

3

J32415

HEX SOC SCREW,M10 x 35mm, Cl 10.9

5шт.

4

D34802

WASHER

DE 10

5шт.

5

W3528795

WASHER

"10.25 x 7 x 25"

5шт.

6

100016

NUT,M10 x 1.5, Cl 8

5шт.

7

L8643847

COVER

PLATE

1шт.

8

W32910

SCREW,Hex Skt Hd, M6 x 16mm

6шт.

9

W3528795

WASHER

"10.25 x 7 x 25"

3шт.

10

NLS

NO LONGER SERVICED

4шт.

11

M34603

WASHER

N4 U

4шт.

12

X2036924

RIVET

SLEEVE

4шт.

13

E641612

BUTTON

push

4шт.

14

PANEL control, See Figure : 4-38

1шт.

15

J1334560

NUT

M10

3шт.

16

V2340476

CAP

CAP

1шт.

B2741647

SWITCH

Consist Of : 17, 18

1шт.

17

N1352067

SET OF 2 KEYS

1шт.

18

CYLINDER lock Order : B2741647

1шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.
