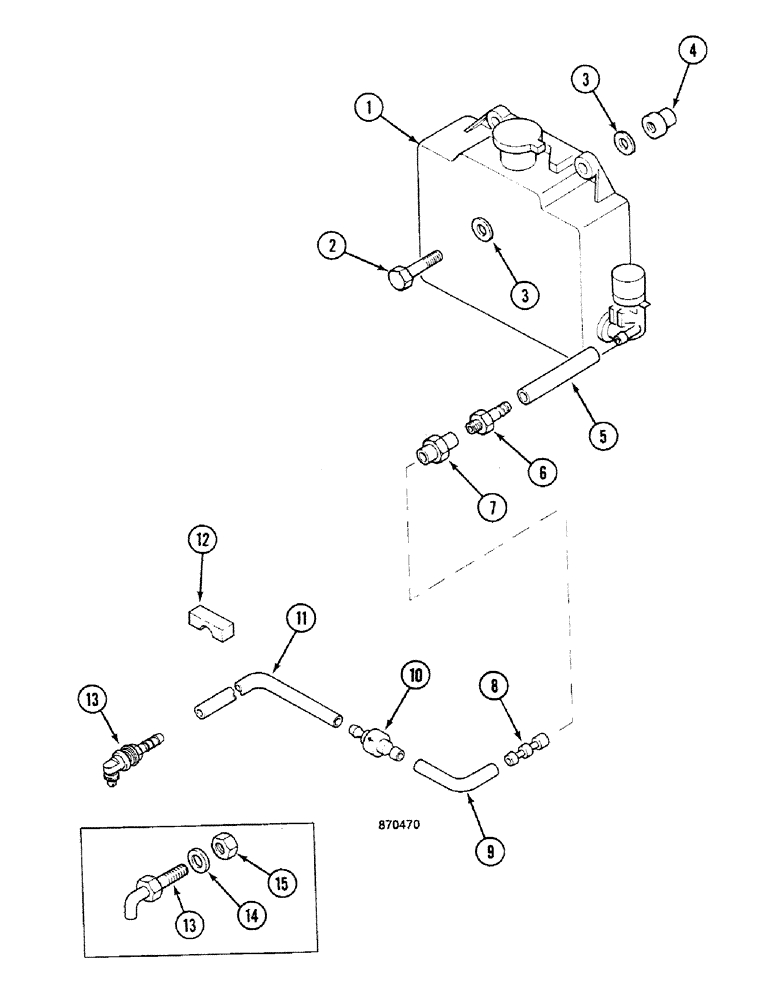

Запчасти Case 688C (4-26) - WINDSHIELD WASHER, (-XXXXX) (06) - ELECTRICAL SYSTEMS

1

U1241880

RESERVOIR ASSY.

WINDSCREEN washer

1шт.

2

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

3

715853R1

RING

M6 N

4шт.

4

E834513

RIVET

M6

2шт.

5

M1103643

PIPE

Order Length : 150mm

1шт.

6

Q3543210

UNION

1шт.

7

P3543209

FITTING

1шт.

8

N3543208

BUSHING

SLEEVE

1шт.

9

M1103643

PIPE

Order Length : 500mm

1шт.

10

M3543207

VANEUM GAUGE

1шт.

11

M1103643

PIPE

Order Length : 3500mm

1шт.

12

M1241413

CLIP,ELECTRICAL

2шт.

13

D943210

JET

NOZZLE (-XXXXX)::

1шт.

13

L4143207

JET

NOZZLE (XXXXX-)::, Replace : X3743271

1шт.

14

P4528713

WASHER

"10.25 x 20 x 20", (-XXXXX)::

2шт.

15

100016

NUT,M10 x 1.5, Cl 8

U, (-XXXXX)::

1шт.
